Bottom Empty Skip - Automatic
Frequently Bought Together

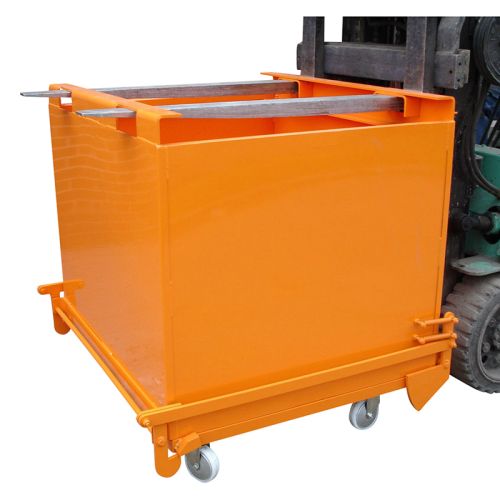

Bottom empty skips allow you to dispose of waste into larger bins and skips via the base release mechanism, without the driver leaving the safety of their cab. The design combines a rugged structure with clever ingenuity and safety features, such as the bright orange colour for visibility, lap welded corners and internally reinforced sides, zinc-plated fork pocket heel pins and safety lynch pin, and a hinged lid. The safety of the skip is also elevated with a unique automatic locking and releasing mechanism.
Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery
| Size | Capacity | Weight | C of G | Length | Width | Height |
Nominal Capacity (m3) |
| 800 | 550kg | 212kg | 358mm | 850mm | 1050mm | 900mm | 0.8 |
| 1200 | 750kg | 255kg | 500mm | 1050mm | 1200mm | 900mm | 1.2 |
| 1450 | 950kg | 287kg | 500mm | 1050mm | 1500mm | 900mm | 1.45 |
STANDARD FEATURES
- 125mm diameter nylon castor fitted as standardÂ
- Internally reinforced sides and lap welded cornersÂ
- Unique automatic releasing and locking mechanismÂ
- Maximum fork section 150 x 50 mm at 683 mm centresÂ
- Zinc plated heel pins for safe attachment to truckÂ
- Painted bright orange for safety
OPERATION
- Position the forks the correct distance apart to locate into fork pockets.
- Remove fork pocket heel pins from skip.
- Drive forks into the fork pockets.
- Insert fork pocket heel pins directly behind the heel of the fork and attach safety lynch pin into the hole provided.
- Take the bottom empty skip to the yard skip and position the actuator plates (on the rear of the skip base) over the side of the yard skip.
- With the mast vertical lower the actuator plates onto the side of the yard skip and to activate the release hooks.
- Keeping the mast vertical, lift the carriage of the forklift truck so as the drop bottom door clears the side of the yard skip and reverse clear.
- Lower the skip to the ground to automatically re-latch the drop bottom door – some forward tilt may be required dependent on site conditions.
