Water Margin Protection

HERMEQ's riverbank protection range is used for water margin protection, erosion control and habitat preservation along rivers, streams, ponds, lakes and wetland edges. It is used on construction, infrastructure and restoration projects where works run close to ecologically sensitive watercourses, or where a bank needs natural reinforcement.

The range covers coir logs, coir pallets and sods, and coir soil stabilisation fencing, all made from virgin coconut fibre, together with granite-filled gabion rock rolls. Laid in the water and on the bank above it, they stabilise embankments, protect against scour and give native vegetation time to re-establish. The range is held as permanent UK stock with next day delivery.

6 Items

Set Descending Direction
  1. Coir Pallets & Sods
    Coir Pallets & Sods

    Quick 5 Day Delivery

  2. Gabion Rock Rolls
    Gabion Rock Rolls

    Quick 5 Day Delivery

  3. Brushwood Faggots
    Brushwood Faggots

    Quick 5 Day Delivery

  4. Chestnut Post
    Chestnut Post

    Quick 5 Day Delivery

per page

Coir logs, rock rolls and coir pallets for bank protection

Each unit in the range has its own place on the bank profile: rock rolls at the toe where flow scours, coir logs or coir pallets at the waterline, and coir fencing on the slope above.

Coir logs

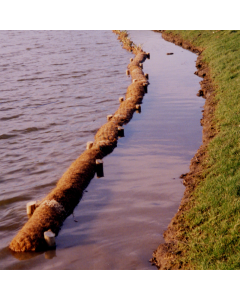

Also sold as coir rolls or bio-rolls, coir logs are dense coconut fibre rolls laid along the waterline to take the force of waves and hold the bank edge while marginal plants grow into it. Choose them for ponds, lakes and slower rivers, where the bank needs a soft edge that planting can take over.

Gabion rock rolls

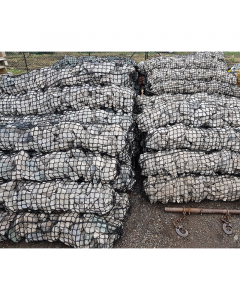

Gabion rock rolls are granite stone held in a polypropylene mesh, laid as flexible gabions along the toe of the bank. Choose them where turbulent flow causes washout and scour. The mesh follows the contours of the bed, so they sit on uneven and unstable ground; for a rigid, stacked structure, gabion baskets are the cage format.

Coir pallets and sods

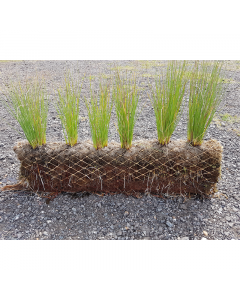

Coir pallets and sods cover ground that a log cannot: pallets are flat coconut fibre mattresses for shallow shelves and shorelines, and sods are compressed coir fibre in smaller units. Choose them where the margin is wide and shallow and needs a planting substrate across its full width, as on wetland edges and lake shores.

Coir fencing for embankment slopes

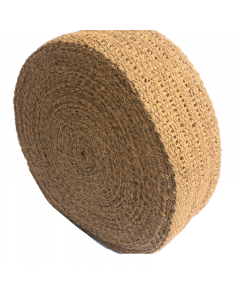

Coir soil stabilisation fencing is set out on the slope above the water to form retaining cells that hold topsoil in place while vegetation establishes. Choose it for new or regraded embankments where the soil would slip downhill before roots bind it. Where the slope surface itself needs covering against rain and runoff, matting from the erosion and sediment control range is laid alongside it.

Coir logs and gabion rock rolls laid along the toe and waterline of a riverbank
Coir Soil Stabilisation Fencing

Coir logs or rock rolls

The choice turns on the strength of the water and on how long the bank needs support. Coir logs suit still or gently moving water and wave action, and banks that only need holding until plants establish: the coir is biodegradable, and it breaks down as the roots of marginal plants take over the work of holding the soil. Gabion rock rolls suit turbulent flow, washout and scour, and banks that need permanent toe protection, because the granite and mesh stay in place and need no maintenance once installed. Where the flow is strong and the bank still has to vegetate, the two are combined, with a rock roll set as the foundation and a coir log or coir pallet placed on top. Plant roots then grow down through the coir into the voids between the stones, and the bank grows stronger as the planting matures.

Riverbank protection for rivers, ponds and wetlands

Fast-flowing rivers and streams

In moving water the current undercuts the toe of the bank and is fastest on outside bends, so rock rolls go along the toe there, fixed securely enough to stay in place in flood.

Ponds, lakes and reservoirs

On still water the threat is wave action from wind and boats, which wears the bank away at the waterline where coir logs sit. Where the level rises and falls through the year, as on reservoirs and balancing ponds, coir logs with added moisture retention compounds hold moisture for the plants when the water drops away.

Canals, shorelines and wetland margins

Canal banks, lake shorelines and wetland edges are often wide and shallow, and fine sediment is as much of a problem there as erosion. Where silt needs catching, brushwood bundled into mattresses and held with fixing posts forms silt traps that collect fine sediment as it settles.

Coir Log Erosion Control
Brushwood Faggots

Installing coir logs and rock rolls

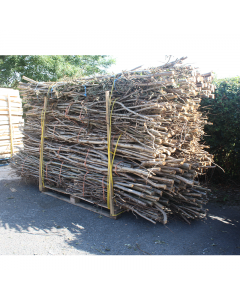

A soft engineering margin is built from the bed upwards. A geotextile filter fabric laid over the rock rolls at the toe retains the fines in the bank while plant roots grow through it into the fill. Where a coir log has to sit higher than the bed allows, brushwood faggots placed beneath it set the log at the correct level on the bank. Peeled and pointed chestnut posts are driven to fix the coir logs, pallets and faggots in position.


Frequently Asked Questions

How long do coir logs last?

Coir logs are made to hold the bank for the period marginal plants need to root, and then to break down. The time this takes depends on the flow, the water level and how quickly the planting establishes.

Can you get coir rolls with plant holes for ponds?

Coir logs can be supplied with optional pre-formed plant holes, which make it simpler to set marginal plants into the log on site. The logs arrive ready for planting, and the plants are added as the logs are installed.

Do rock rolls need machinery to install?

Yes. A filled gabion rock roll is heavy, and it is placed on the bank or in the water with plant such as an excavator, so check machine access to the margin before ordering.

Can rock rolls be used without coir logs?

Yes. Rock rolls work on their own as toe protection against washout and scour, and they can be stacked, overlapped or laid in parallel to suit the bank.

Do you need consent to install riverbank protection?

Work in, over or beside a watercourse normally needs consent before it starts. Depending on the watercourse, consent comes from the relevant environment regulator or from the lead local flood authority.

Is coir matting the same as a coir roll?

No. Coir matting is a sheet laid flat over a slope to protect the soil surface from rain and runoff while vegetation takes, whereas a coir roll, or coir log, is a dense cylinder of fibre set along the waterline to hold the bank edge.
