Quick Fit Frames & Signs

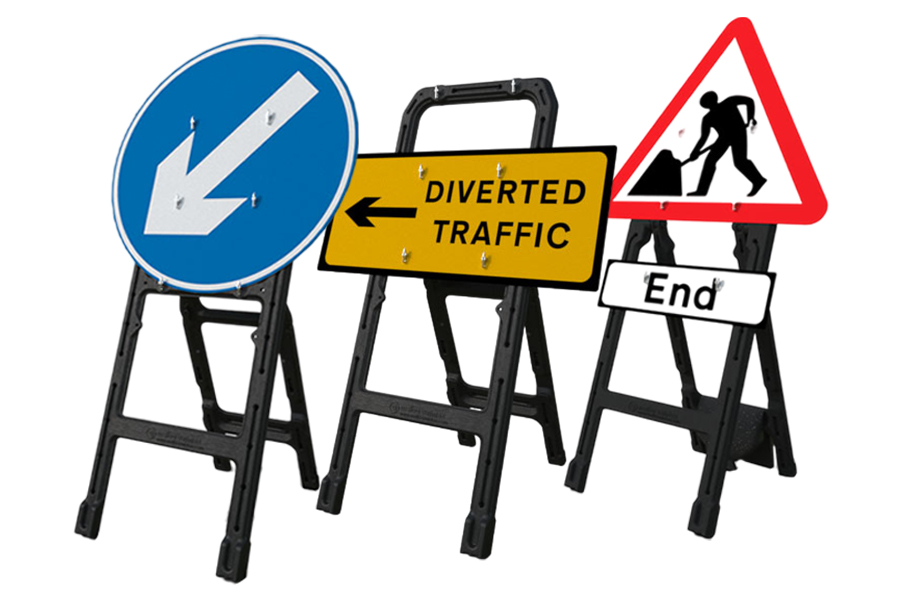

Road sign frames from HERMEQ carry temporary traffic and pedestrian signs on construction, maintenance, streetworks and event sites. They take standard quick fit sign faces on 300mm, 450mm and 750mm toggle centres, so a face can be changed on the frame as the layout moves on.
The range covers steel quick fit frames, made in our UK works with in-house steel processing and, on the mini frames, in-house powder coating. Alongside them are plastic frames, including a non-conductive frame for work near live services, urban sign posts and plastic quick fit sign faces, all for signing laid out to Chapter 8 of the Traffic Signs Manual. Everything ships from permanent UK stock, with next day delivery available.
Quick fit frames, mini frames and urban sign posts
The right frame depends on the size of the sign face, where the sign stands and how often it moves during the job.

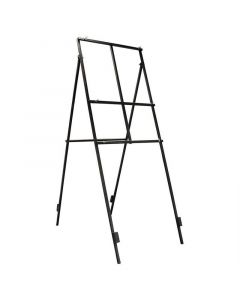

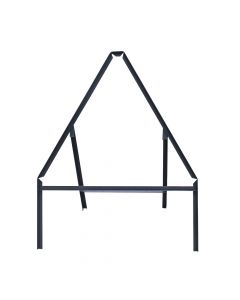

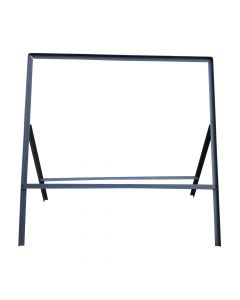

Steel quick fit frames with 750mm centres

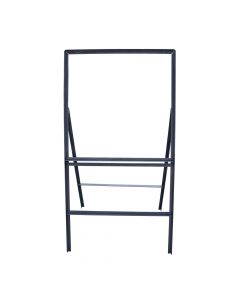

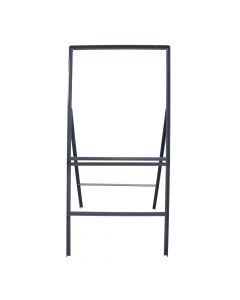

The full size steel quick fit frames are the traditional format for larger triangle, circular and rectangular faces on main roads and longer diversions. Built from steel box section, they suit fleets that deploy the same frames job after job and want one frame to carry every large face they hold.

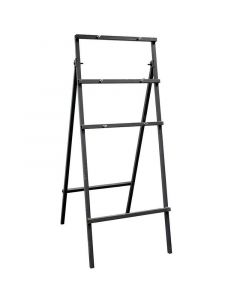

Mini quick fit frames
Mini frames, which the trade often calls dumpy frames, take 300mm centre faces and are the everyday choice for local roadworks, diversions and lane closures. The steel mini quick fit frames fold flat for the van and carry bars for sandbags. The flat pack mini quick fit frame assembles without tools and suits depots that store and dispatch frames in quantity.

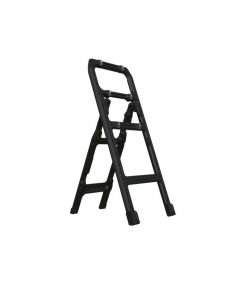

Plastic quick fit frames
The plastic quick fit frame takes both 300mm and 450mm centre faces, so one frame covers most of the smaller signs a gang carries. Choose it where electrical safety, handling weight or corrosion decide the job.
EnduraSign QuickFit frames
The EnduraSign QuickFit frame is made from recycled plastic and takes 300mm centre faces in triangle, circle, square and rectangular formats, including a triangle with a supplementary plate. It is a low profile frame that one operative can carry, and it pairs with its own clip-on ballast.

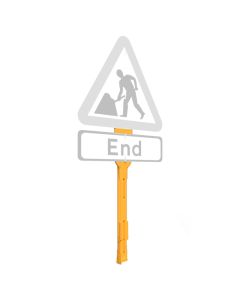

Urban sign posts and bases
On footways and in pedestrian areas a full frame is often more than the job needs. Urban sign posts are lightweight yellow uprights that take the sign face directly on fixings already fitted to the post, and they stand on stackable bases that keep the footprint narrow. The largest rectangular faces can need a second post.

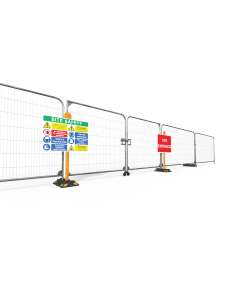

Site entry sign system
At construction site gates, the site entrance sign system puts the sign on the fence line. A temporary fence panel or gate slots into the base and anchors the post, so the sign needs no separate frame, rubber feet or sandbags. Without the panel, the same base stands alone as a freestanding post for wayfinding around a site boundary.

Toggle centres and sign face sizes
Toggle centres are the spacing between the fixing points on a frame, and a sign face only fits a frame with the same spacing. The smaller spacings belong to the mini, plastic and EnduraSign frames described above, while faces on 750mm centres are the larger formats and go on the full size steel frames, where a wider frame supports a wider face and holds it flat in wind.

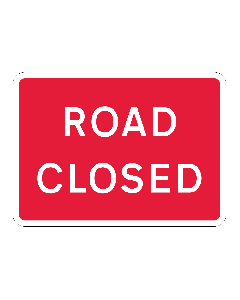

Standardising a fleet on one spacing means a gang carries fewer frames and swaps faces as the layout changes, instead of pairing a frame to every sign. The quick fit road closed signs and lane closed wicket signs in this range come drilled for either of the smaller spacings. The full set of warning, regulatory and information faces is in temporary road signs.
Steel or plastic road sign frames
Plastic is the choice for work near electricity and for crews who carry frames by hand, while steel is the choice for large faces and the heaviest repeat use. The plastic quick fit frame is non-conductive, which makes it the frame for excavations near buried cables, overhead lines and high voltage equipment. Plastic frames also do not rust and are recyclable at the end of their working life.
Steel frames are made in our UK works from steel box section. They are the format for 750mm centre faces and for fleets that deploy the same frames week after week on main roads, where frame width and rigidity matter as the faces get larger. The steel mini frames are powder coated in-house in a choice of colours, which protects them against chipping and rust through repeated loading, handling and weather.

Ballast and wind stability for sign frames
Every temporary sign frame needs ballast to stay upright in wind, and the right ballast depends on how the frame is built.
Sandbag bars on steel frames
The steel mini frames carry horizontal bars between the legs, and sandbags laid across them hold the frame low and stop it walking or tipping on exposed roads. The full size steel frames take sandbags or ballast in the same way, and sandbags sit well on uneven or unsealed verges.
Clip-on ballast weights

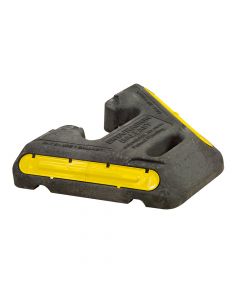

EnduraSign ballast weights lock onto the base of the EnduraSign QuickFit frame and, mounted correctly, hold it in winds up to Category A without sandbags. For frames built from 25mm box section, road sign frame weights lock onto the frame and weigh the same wet or dry, so the ballast does not change with the weather.
Stackable bases for urban posts

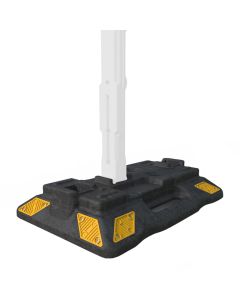

Urban sign posts stand on urban sign post bases with high visibility plates, and stacking a second base adds weight where the site is exposed. The site entrance sign system works the same way when it stands free of the fence, with up to three bases stacked under a post where wind load is a concern.
Sign frames for roadworks and events
Roadworks, diversions and lane closures
A roadworks layout pairs the sign frames with a taper of traffic cones, with cone lamps on it after dark. Where the works area sits beside live traffic, road barriers separate it, and the rest of the traffic management equipment covers what else the layout needs.
Events
At events, frames go out for road closures, diversions and pedestrian routes and come back in the same day, so frames that stack in a van and colours that code each route help crews work quickly.

Popular Categories

Road Barriers
View Products >

Water Filled Barriers
View Products >

Cones
View Products >
Frequently Asked Questions
What standards do temporary sign frames need to meet?
Temporary signs are laid out under Chapter 8 of the Traffic Signs Manual and, on streetworks, the Safety at Street Works and Road Works code of practice known as the Red Book. BS 8442:2015 sets requirements for portable signs and frames, including their stability in wind with ballast. The plastic quick fit frame conforms to BS 8442:2015, Chapter 8, the Red Book 2013 and the Traffic Signs Regulations and General Directions.
Do quick fit frames need tools to set up or change a sign?
Quick fit frames go up without tools, and a sign face locates on the toggles and locks in place by hand in under a minute. The flat pack mini frame also assembles without tools. Urban sign posts come with their fixings already attached, so the face fixes straight to the post.
Can sign frames be made in company colours or branded?
The steel mini frames are powder coated in-house in a choice of standard colours, with other RAL colours on request. The plastic quick fit frame and the EnduraSign frame can be made in company colours or carry a logo. The EnduraSign ballast weight also takes a branded name plate for asset tracking.
How do you stop sign frames being stolen from site?
Plastic frames, urban sign posts and the site entrance sign system are non-metallic and have no scrap value, which removes the main reason frames go missing. Steel frames left on an open site overnight should be secured. Company colours or a logo make frames easier to identify and recover.

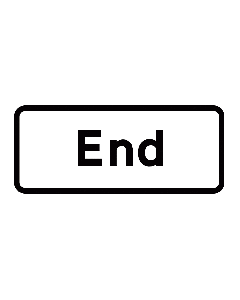

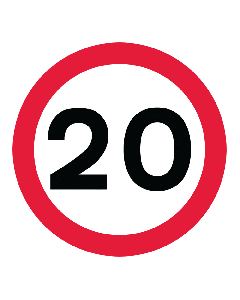

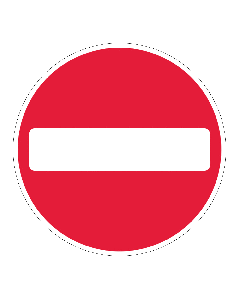

Are the sign faces sold separately from the frames?
Frames, posts and bases are supplied without sign faces, so a team can fit the faces it already holds on matching toggle centres. This range includes quick fit road closed and lane closed wicket faces. The full set of faces is in the temporary road signs category.
