GRP Walkways & Covers
HERMEQ supplies GRP walkways and grating made from glass reinforced plastic for places where the walking surface must be non-conductive and must not corrode. Used on rail, utility and industrial sites, GRP is a lighter alternative to metal flooring in areas exposed to heat, moisture or electrical risk. The range covers open mesh and solid top grating panels, with GRP boards in gritted and checker tread finishes for covering and resurfacing existing floors. Each surface gives a different level of grip, chosen by the amount of foot traffic and how often the floor is wet or oily. Every product is held as permanent UK stock, with next day delivery.
GRP grating panels and GRP boards
GRP grating spans between supports and becomes the walking surface itself, while GRP boards are sheets laid over a floor, deck or stair that is already in place.

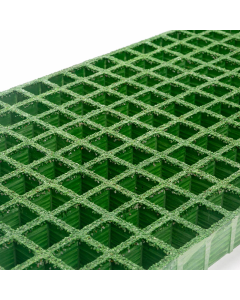

Open mesh GRP floor grating
The open mesh GRP floor grating panels are the general-purpose choice for walkways, platforms and covers where water, spillage and light should pass straight through the floor. The open grid sheds rain and drains wash-down water, so the surface stays clear underfoot outdoors and in wet process areas. They come in more panel sizes and colours than any other product in the range, which gives the most freedom when fitting grating to an existing frame.

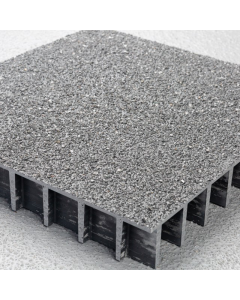

Solid top GRP walkway grating
The solid top GRP walkway grating is moulded grating with a solid plate across the top that closes the mesh, so it gives a continuous walking surface with the stiffness of a grating panel. Choose it where tools, fixings or debris must not fall through, where people work below the walkway, and where a closed floor is easier to walk on in light footwear or to wheel a trolley across.

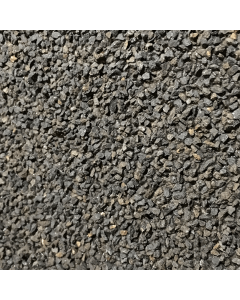

Gritted GRP boards
Gritted GRP boards are flat sheets with a bonded grit surface, and they give the most grip in the range. They suit external stairs, ramps, footbridges and decks that stay wet or oily for much of the year, and they are a common way to resurface slippery timber or worn steel without replacing the structure underneath. Boards are fixed down over a sound surface, and where a gap between supports has to be bridged, grating is the product to choose.

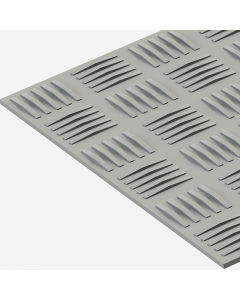

Checker tread GRP boards
Checker tread GRP boards carry a raised pattern that gives low slip footing on a surface that sweeps and mops clean more easily than grit. They suit indoor floors, plant rooms and switchroom walkways, where the floor is cleaned often and a non-conductive, non-corrosive covering is needed over the existing surface.

Open mesh or solid top GRP grating
What happens beneath the walkway decides it. Open mesh is right where water, light and air need to pass through the floor, as on outdoor routes, drainage channels and plant platforms, because nothing ponds on the surface and the space below stays visible for inspection. Solid top is right where nothing may fall below, such as over a service riser, on a walkway above people at work or over a trench beside a footpath, and where a closed surface is wanted for comfort underfoot or for cleaning.
Mini mesh GRP grating is specified where small items such as bolts, phones and hand tools must not drop through the floor. HERMEQ open mesh panels use a standard square mesh, so where that is the requirement, the solid top walkway grating closes the surface completely and does the same job. Across the range, panel depths run from 25mm to 53mm, with the solid top grating at the deeper end.
GRP walkways for station platforms, risers and trenches

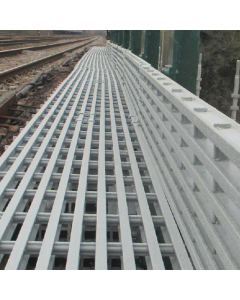

Station platforms and trackside routes
On rail work, GRP is chosen because it does not conduct electricity, and that matters close to conductor rails, overhead lines and signalling equipment. Open mesh grating drains rainwater on trackside walkways and cable route crossings, while gritted boards resurface platform ramps, steps and access stairs that turn slippery in wet weather. Lighter panels also move along the track more quickly when work has to be finished within a short possession.
Access platforms, gantries and mezzanine decks
Plant platforms, service gantries and walkways in water treatment works and chemical handling areas take GRP grating because it does not rust in constantly wet or corrosive conditions. Open mesh is the usual floor where spillages and wash-down water must drain away. On mezzanine decks used for storage, or gantries above a production line, solid top grating keeps dropped items on the deck.
Riser flooring
GRP riser flooring closes the openings in building service risers at each floor, so engineers can stand and work inside the shaft. Solid top grating is the common choice because it stops tools and fixings dropping down the riser, and its non-conductive surface sits around cable trays and busbars without adding an electrical risk. Where a riser has to stay ventilated or visible from above, open mesh panels fill the same openings.
Trench and pit covers
GRP grating cut to the opening makes a permanent cover for cable trenches, drainage channels, valve pits and inspection chambers on pedestrian and service routes, and it does not corrode in wet ground. For a short-term crossing of an open excavation on foot, pedestrian trench cover boards are quicker to put down and lift again. Where vehicles or plant cross an open trench, use steel road plates, which are made for wheel and track loads.

GRP grating or steel walkway grating
GRP and steel or galvanised walkway grating do the same job, and the conditions around the walkway decide between them. GRP does not conduct electricity, so it is the safer floor beside live equipment, rail infrastructure and substations, where a conductive floor would need bonding and earthing. It does not rust, which means there is no galvanising to wear through, no repainting cycle and no corrosion starting at cut edges after the panel has been trimmed to fit. GRP is also much lighter than steel grating of a similar size, so panels can be carried through plant rooms, up access stairs and into confined spaces by hand. That lower weight is the reason GRP is often chosen to retrofit a new floor onto an existing structure, because it adds little load to the steelwork or frame that already carries it.
GRP grating depth, panel size and colour
Once the type is settled, three choices remain, and the support frame decides two of them.
Depth and support spacing
A deeper panel is stiffer, so it spans wider gaps between supports and carries heavier foot traffic, equipment and maintenance loads with less deflection. The load a panel takes is decided by its depth, the distance between support centres and whether the load is spread across the panel or concentrated on one point, such as a ladder foot or a loaded trolley wheel. Set out or measure the support frame first, then choose the depth that suits that spacing and the heaviest load the walkway will carry. On an existing frame with wide centres, the deeper solid top grating is the better starting point.
Panel size
Panels run up to 3660 x 1220mm, and the open mesh grating is also made in smaller panel sizes. Large panels cover a long walkway with fewer joints and fewer edges to support, while smaller panels are easier to carry, fit small platforms and pits with less waste, and suit cramped retrofit work. Matching the panel size to the frame keeps cutting and offcuts to a minimum.
Colour
Grey and green panels are the standard walking surface: dark grey and green sit well outdoors and along trackside routes, and light grey keeps plant rooms and risers brighter. Yellow open mesh panels mark what people need to see, such as the edge of a platform, the first and last step, a route through a plant area or a removable cover over a pit. A yellow border laid around a grey or green run makes the edges stand out without paint or tape.

Popular Categories

GRP Fencing
View Products >

GRP Shoring
View Products >

GRP Signs & Posts
View Products >
Frequently Asked Questions
What is GRP grating made from?
GRP is glass reinforced plastic: glass fibres set in a thermosetting resin that cures hard and does not soften again with heat. In moulded grating the fibres run through the bars in both directions, so the panel is strong across its width and along its length. Gritted surfaces have an aggregate bonded into the top layer of resin.
Is 38mm GRP grating the depth or the mesh size?
It can be either, because GRP grating is described by both the depth of the panel and the size of its square openings. HERMEQ open mesh panels have a 38 x 38mm mesh on a 25mm deep panel, so they are the right match where 38mm refers to the mesh. If a specification gives 38mm as the depth, it is calling for a deeper, stiffer panel, and the solid top walkway grating is the closer match in the range.
Can GRP grating be cut to size on site?
Yes. GRP grating and boards cut cleanly with a diamond or abrasive blade on an angle grinder or circular saw. Cutting releases fine glass fibre dust, so cut outdoors or with extraction, and wear a dust mask, eye protection and gloves. Plan the cuts so that every cut edge of a grating panel lands on a support, and seal cut edges with resin where the panel will sit in wet or chemical conditions.
How is GRP grating fixed to a frame or floor?
Grating panels are held with grating clips that hook over the bars of the panel and bolt through to the support frame below, set at each corner and at intervals along every supported edge. Joining clips connect neighbouring panels across a run so they cannot shift apart. On outdoor and wet routes, stainless steel clips and bolts avoid corrosion at the fixings.
Can GRP boards be laid over an existing floor?
Yes, provided the existing floor, deck or stair is sound, reasonably flat and able to hold the fixings. Remove loose material, then screw or bolt the boards through to the structure below with countersunk fixings so that no heads stand proud. Where a board finishes on a walking route, fit an edge trim or nosing so that the change in level does not leave a trip edge.
Where are HERMEQ GRP walkways made?
The GRP walkway grating, floor grating panels and boards in this range are manufactured in the UK, where HERMEQ also carries out its own steel processing in-house. Orders are delivered nationwide.
