Palisade Fencing
Palisade fencing from HERMEQ is a permanent security fence for commercial, industrial, utility and rail sites, supplied as three steel systems and a non-conductive GRP version. Steel palisade is built from vertical pales bolted to horizontal rails and carried on steel posts with tamper-resistant fixings, and the pointed heads and folded W section profile make the pales hard to grip or climb.
Every steel component is hot-dip galvanised against corrosion and can be powder coated over the galvanising, so a fence line stays protected and keeps its colour on exposed sites.
Palisade fencing systems: steel and GRP
Steel palisade is the right choice for most perimeters, and GRP palisade is the system for sites where electrical conductivity or chemical corrosion rules steel out.
Palisade Standard
Palisade Standard fencing is the general commercial and industrial perimeter fence in the range, built from W section pales with triple-point heads, box section rails and steel posts. It is the system to choose for factory, warehouse, depot and car park boundaries where a recognised security fence is needed and no sector specification applies. It also has the widest choice of powder coated colours of the steel systems.
Palisade Ultra
Palisade Ultra is the higher-specification steel system, with cold-rolled posts that are lighter to handle and stronger than traditional RSJ posts, angled anti-sag top rails with a sloped profile that resists climbing, and anti-tamper pale heads with rolled safety edges. Anti-vandal bolts and fishplates join the bays. It is specified for government buildings, infrastructure and high-footfall frontages, where the fence has to look orderly at close quarters and still keep intruders out.
Network Rail spec palisade
Network Rail spec palisade fencing combines single-pointed W section pales, RSA angle rails and RSJ posts, built to NR/L2/TRK/5100/1/WP. It is the system for railway boundaries and for utilities, energy and local authority contracts that call up the same specification. Where a contract names a rail-sector specification, this is the system to order, because Palisade Standard and Palisade Ultra are general security fences and are not built to that standard.
GRP palisade
GRP palisade fencing is made from glass reinforced plastic, so it does not conduct electricity and does not corrode. It is the choice beside live electrical equipment at substations and power generation plants, in railway trackside zones, and at water treatment and petrochemical sites where chemicals would attack steel. It also suits jobs where no machinery can reach or the working window is short, such as an overnight rail possession or a planned power outage, because it arrives as pre-assembled panels that two operatives can carry and fit by hand. The pales pass through and lock into the rails, which makes the panels hard to dismantle, and the composite takes heavy impacts without bending or splintering.

Palisade sizes, colours and post fixings
These choices apply across the steel systems and are best settled before ordering, since each one changes the components and gates a run needs.
Heights for different security levels
The steel systems start at 1.8m, and Palisade Ultra can be configured as tall as 3.0m. The lowest height marks a boundary and deters casual entry on lower-risk sites, the middle and upper heights are the usual specification for industrial security, and the tallest Ultra configurations suit high-value or high-risk perimeters. Posts, pales and gates are ordered to the same height, so the height is decided for the whole run before anything else.
W section and D section pales
W section is the most popular commercial profile, because its folded shape reinforces the pale along its length and is harder to grip than a flat face. D section pales remain available for school and prison specifications and for extending an existing D section fence. Triple-point splayed heads are standard on Palisade Standard, while rail spec pales are single-pointed to the Network Rail profile.
Galvanised or powder coated
Galvanising to BS EN ISO 1461 is enough to protect the steel against rust, and the powder coat over it comes in green or black across the steel systems. Palisade Standard can also be coated red or blue. HERMEQ applies the coating in-house, so posts, pales, rails and gates from the same order match. Plain galvanised suits working yards and utility compounds, and green or black is the better choice where the fence faces the public, sits against a building or needs to blend into planting.
Dig-in or bolt-down posts
Dig-in posts are set into a concrete footing and are the standard fixing for new runs on soil, grass or broken ground, and Palisade Ultra posts are pre-pierced at the base to anchor into the concrete. No-mix Postcrete poured into the hole with water sets the post quickly without a mixer on site. Bolt-down posts are available for Palisade Standard and fix to an existing concrete slab or hardstanding with anchor bolts, which avoids breaking out a sound surface.

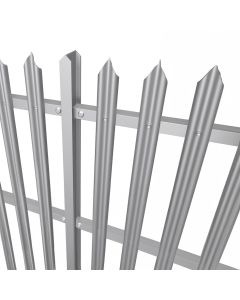

Palisade fence panels, posts and pales
A palisade fence panel is a 2.75m bay assembled on site from pales bolted to horizontal rails, carried on a post and secured with tamper-resistant fixings. Each bay is sold with one post, so a straight run needs one extra post to close its final bay, and every change of direction needs a corner post.

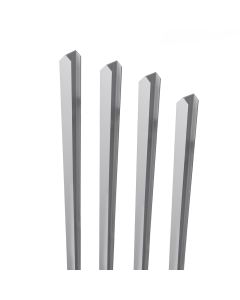

Posts and rails differ between systems, so replacement parts must come from the same system as the fence already in the ground. On Palisade Standard, palisade fence posts carry the bays and palisade corner posts take the turns. Palisade Ultra runs use cold-rolled Palisade Ultra posts with matching Ultra corner posts. Network Rail spec runs stand on RSJ rail spec posts, with rail spec corner posts at angles and boundary changes.

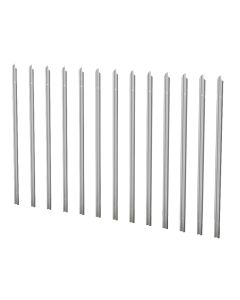

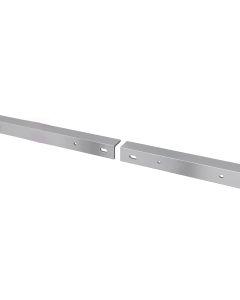

Damaged infill is replaced pale by pale, using W section palisade pales and palisade rails on Palisade Standard. The rail system takes its own Network Rail spec pales and rail spec RSA rails.
The price calculators for Palisade Standard, Palisade Ultra and Network Rail spec palisade turn a run length, height and colour into a full bay-by-bay list of pales, rails, posts and fixings. Runs can also be ordered fitted through HERMEQ palisade fencing installation.

Vehicle and pedestrian palisade gates
Palisade gates are clad with the same W section pales as the fence and finished in the same galvanised or powder coated colour, so an entrance reads as part of the fence line.
Palisade vehicle gates
Palisade vehicle gates are double-leaf gates hung on dig-in posts that are concreted into the ground, made to order across a choice of opening widths and heights and set to swing inward or outward. Stock palisade vehicle gates are the quickest route to a finished entrance at a standard 5.0m width in galvanised steel. Other gate styles for permanent perimeters are in the full range of vehicle access gates.
Palisade pedestrian gates
Palisade pedestrian gates are single-leaf gates on dig-in posts, ordered with the hinge on the left or right and the leaf swinging in or out. Setting both at the order stage stops an outward swing from blocking a pavement, road or escape route once the gate is hung.
Palisade security fencing for industrial, utility and rail sites
Palisade suits any boundary that stays in place for years, including long-running construction compounds, while site perimeters that move as a build progresses are better served by temporary security fencing.
Industrial estates, warehouses and logistics yards
Stock yards, plant compounds and warehouse perimeters usually call for one of the taller heights, because the fence protects goods and vehicles worth stealing. The vehicle gate should be sized to the largest vehicle that uses it, with room for the leaves to open clear of parked trailers and turning lorries. Shear-nut and anti-vandal fixings matter as much as the pales on these sites, since a fence held with ordinary bolts can be taken apart from outside.
Substations, water and chemical sites
Near live equipment the first question is conductivity, and GRP palisade removes the risk of arcing or shorts between cabling and the fence line. On water treatment works, pumping stations and chemical storage areas the concern is corrosion, and the same composite resists chemically aggressive conditions as well as coastal and flood-prone locations. Where steel palisade is used away from live plant, a powder coat over the galvanising adds a second layer of protection.
Railway and infrastructure boundaries
Rail and infrastructure clients check the traceability of the components as well as the installed fence. Network Rail spec components carry batch identification and coating labels so each delivery can be traced, and larger orders are coated in matched batches so the finish is consistent along the whole boundary at inspection. Shear-nut security fixings and pre-drilled posts and rails keep installation quick, which counts when the work has to fit inside a possession.
Schools and public buildings
Schools, colleges and civic buildings need a secure line that does not look like an industrial yard, and a green or black powder coat lets the fence match railings, signage or the building. Rounded or round-notched pale heads can be supplied on request where pointed heads are not wanted at a public frontage, and a pedestrian gate at each supervised entrance allows the main gates to stay closed during the day. Where an open view through the boundary is wanted, the permanent fencing range also covers V mesh perimeter fencing and anti-climb mesh fencing.

Popular Categories

V Mesh Perimeter Fencing
View Products >

Domestic Fencing & Railings
View Products >

Wire & Chain Link Fencing
View Products >
Frequently Asked Questions
How much does palisade fencing cost per metre?
The cost per metre depends on the system, the height and the finish, with taller heights and powder coating adding to the price of a plain galvanised run. Corner posts, gates and the extra post that closes each run also add to the total. Entering the run length, height and colour into the calculator for the chosen steel system gives the full price before you order.
Can palisade fencing follow sloping ground?
Palisade fencing can be installed on sloping and uneven ground. Network Rail spec palisade is designed for gradients and irregular surfaces, with rail-to-post fixings that adapt to the slope while the fence stays stable. It is the system to choose for long runs over embankments, cuttings or broken ground.
Does palisade fencing need maintenance?
Galvanised palisade needs routine visual checks for damage and loose or missing fixings, and no painting. Any cut made on site should be treated with a galvanising repair spray so the zinc protection stays continuous. Powder coated fences have the same galvanised layer underneath the colour.
Is palisade fencing supplied assembled?
Steel palisade is supplied as pales, rails, posts and fixings that are bolted together on site, bay by bay. GRP palisade arrives as pre-assembled panels, which shortens the time spent on site.
Can HERMEQ install palisade fencing?
HERMEQ arranges palisade fencing installation nationwide through qualified installation teams. All materials and tooling are included in the quote, and pricing is set by ground type, with both soft and hard ground covered.
Is anti-climb mesh fencing an alternative to palisade?
Anti-climb mesh fencing is a welded mesh panel system with a close mesh designed to resist climbing, and it keeps a clear view through the boundary. It fixes to the front face of its posts and follows sloping ground. Palisade is the choice where a visibly solid barrier with pointed pale heads is wanted on the perimeter.
Is HERMEQ palisade fencing made in the UK?
HERMEQ palisade posts, gates and GRP panels are manufactured in the UK, and the steel is processed in-house. Large-volume contracts can be fabricated to specification.
