HERMEQ groundwork tools are the lifting and handling equipment that moves heavy materials around a site safely and quickly. The range works with forklifts, telehandlers and cranes, and also includes hand-carried kerb lifters for laying kerbs, blocks and steps. It covers jib attachments, lifters for precast well rings, magnetic lifters for steel road plates, bulk bag and sand bag carriers and lifting cages for loose materials. These tools are used on utility works, civil engineering and infrastructure projects where manual handling is impractical or restricted, and the core range is made in the UK with in-house steel processing.

16 Items

Set Descending Direction
per page

Groundwork tools for lifting and handling

Every tool in this part of HERMEQ's groundworks and shoring equipment either rides on the forks, hangs from a hook or is carried by hand, so the machine on site and the weight of the load settle most of the choice.

Kerb lifters and stone handles

Kerb handles are chosen by three things: the weight of the stone, how many people in the gang can share the lift, and whether a crane or HIAB is on site. The manual kerb lifter is the light, compact handle for standard kerbs and edgings, while the two person stone handle shares heavier blocks and slabs between two operatives and opens wider for larger sections. The universal kerb lifter is carried by two people or hung from a crane, and it releases automatically when the stone is set down. For the heaviest kerbs, steps and blocks, the crane lifted kerb stone handle takes loads up to 500 kg on its lifting ring.

Forklift and telehandler jibs

A jib turns a forklift or telehandler into a small crane, so pipes, drainage units, precast sections and slung loads can be lifted on a hook and lowered into place without bringing a crane to site. HERMEQ supplies a low profile forklift jib and an extending forklift jib.

Bulk bag and sand bag carriers

The two carriers look alike but mount differently, and buying the wrong one for the machine is a common mistake. The bulk bag carrier is a rigid frame that slides onto the forks and locks with heel pins, so it suits a forklift or telehandler with no hook. The sand bag carrier hangs by its centre eye from a fork-mounted hook or a jib and takes the bag on four hooks, so the machine needs a hook first. Both lift bags of sand, aggregate and ballast, and both are available rated up to 2000 kg.

Well ring lifters

The mechanical well ring lifter mounts on a forklift or HIAB and grips precast concrete rings automatically with serrated pads, so chambers for sewers, stormwater and utility access are lowered into the excavation without slings. For entry and rescue once the chamber is set, HERMEQ supplies a two-person confined space access tripod and a counterbalance davit system that needs no permanent base plate or fixings.

Magnetic lifters for road plates

A magnetic road plate lifter grips steel with permanent magnets, so steel road plates are lifted and repositioned from a crane or machine hook without slings or chains. The sizes run up to 2000 kg and are certified to BS EN 13155. Each rating applies to flat plate, and round bar or pipe carries a lower rating, which the product page lists for every size.

Fork mounted magnets

The forklift magnet clamps to the forks and turns any forklift into a sweeper for loose steel. It is run over yards, haul roads and loading bays after a job or at the end of a shift.

Materials lifting cages

The materials lifting cage carries small batches of tools, fittings, brackets and bricks on a crane or hoist, with mesh sides that stop loose items falling during the lift.

Universal kerb lifter gripping a concrete kerb stone ready for a two-person lift
Fork Mounted Magnet

Fixed or extending forklift jib

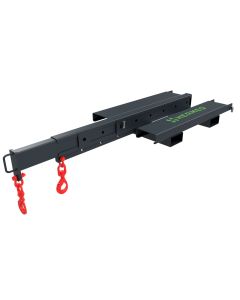

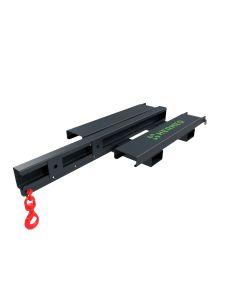

The low profile jib is fixed in length, with a swivel hook and five load centres along the boom, and it suits low headroom and loads lifted close to the mast. The extending jib has ten lifting points out to 3 m, so a load can be carried over a trench, a wall or stacked materials and set down well beyond the tips of the forks.

On both jibs, the rated capacity applies only at the nearest lifting position. The safe working load falls each time the hook moves outward, and at the end of the boom it is a fraction of the headline figure. You should therefore choose a jib by the weight you need to lift at the position the job requires, read from the load chart on the product page, and move to the next capacity up if the load sits close to the limit at that reach. Both jibs fit forklifts and telehandlers.

Matching lifting attachments to forklifts, telehandlers and cranes

How a tool connects to the machine matters as much as its rating, so the mounting method and the fork fit are the first checks before an order.

Fork-mounted, crane-hung or carried by hand

The jibs, the bulk bag carrier and the forklift magnet mount directly on the forks, and the well ring lifter mounts on forks or a HIAB. The sand bag carrier, the materials lifting cage and the magnetic road plate lifter hang from a hook, whether that hook is on a crane, a HIAB or a fork-mounted jib. The kerb handles are the only tools in the range designed to be carried by hand.

Fork section, spread and pocket fit

Each fork-mounted attachment has pockets sized for a maximum fork section, some also need a set fork spread, and the figures differ from one product to the next. Measure the width and thickness of your forks and the distance between them, and compare them with the product page before buying, because forks that are too large will not enter the pockets. Heel pins or clamps lock the attachment to the forks and are fitted before every lift.

Planning lifts by weight and position

The weight of the load is confirmed before it leaves the ground. The fork-mounted and hook-hung attachments are for straight vertical lifts only, with no angular lifts, swinging or shock loading, and operators stay clear of any suspended load. The jibs are powder coated orange in-house, so they stay visible to banksmen and pedestrians on a busy site.

Manual Kerb Stone Handle

Frequently Asked Questions

How often do lifting accessories need a thorough examination?

Under the Lifting Operations and Lifting Equipment Regulations 1998 (LOLER), lifting accessories need a thorough examination by a competent person at least every six months, or to a written examination scheme. The certification supplied with HERMEQ fork-mounted lifting attachments is valid for six months from the date of manufacture, and arranging the next examination is the owner's responsibility. Between examinations, operators check welds, pins, hooks and jaws before each use.

Do magnetic lifters need a power supply?

A permanent magnetic lifter needs no power supply, battery or cable, because its grip comes from permanent magnets. The magnetic road plate lifter works in temperatures from -40°C to +80°C, so it can be used in exposed locations far from a generator.

What size concrete rings can a well ring lifter handle?

The mechanical well ring lifter handles precast concrete rings from 900 mm to 1800 mm, which takes in manhole and access chamber rings across that span. Its grab arms and serrated pads adjust to each ring automatically, so no manual setting is needed between sizes.

Do kerb lifter jaws mark or damage the stone?

The manual, two-person and universal kerb handles grip on rubber jaws or rubber-lined jaws, which hold the stone firmly without marking a finished face. The rubber wears with use and is replaceable, and replacement rubber jaws for the two person stone handle are sold separately.

What does a fork mounted magnet pick up?

A fork mounted magnet picks up loose ferrous metal, such as nails, screws, rebar offcuts, steel shards and scrap cuttings, from yards, loading bays and haul roads. Non-ferrous metals such as aluminium and copper are not attracted. The collected debris is removed from the magnet by hand after use, wearing gloves and eye protection.
