Trestles

HERMEQ builders trestles are heavy duty adjustable trestles for construction, refurbishment and maintenance work, made to carry scaffold boards as a raised working platform. The frames are tubular steel, light to carry between jobs and zinc plated against corrosion. Each trestle adjusts in height, and the 900mm head takes four scaffold boards side by side. All three sizes are tested to BS 1139-4 and rated to carry operatives, tools and materials across the deck.

The trestles are made in the UK and ship next day, together with the stabilisers, ladder brackets, safety posts and S brackets that complete a trestle platform for work at height.

6 Items

Set Descending Direction
per page

Builders trestle sizes 1, 2 and 3

HERMEQ builders trestles come in three sizes that share the same head width and safe working load and differ only in the height of the platform. Size 1 sets the deck a short lift off the floor for domestic ceilings, coving and finishing work in rooms of standard height. Size 2 covers the middle band, from ceilings in taller rooms to upper walls, first fix and high-level services, and is the size to choose for a single set kept for mixed interior work. Size 3 reaches the highest settings, for high ceilings in commercial and public buildings and for facade and window work outside, and its upper settings take the platform above 1.2m, so a Size 3 platform is planned with stabilisers and edge protection from the start.

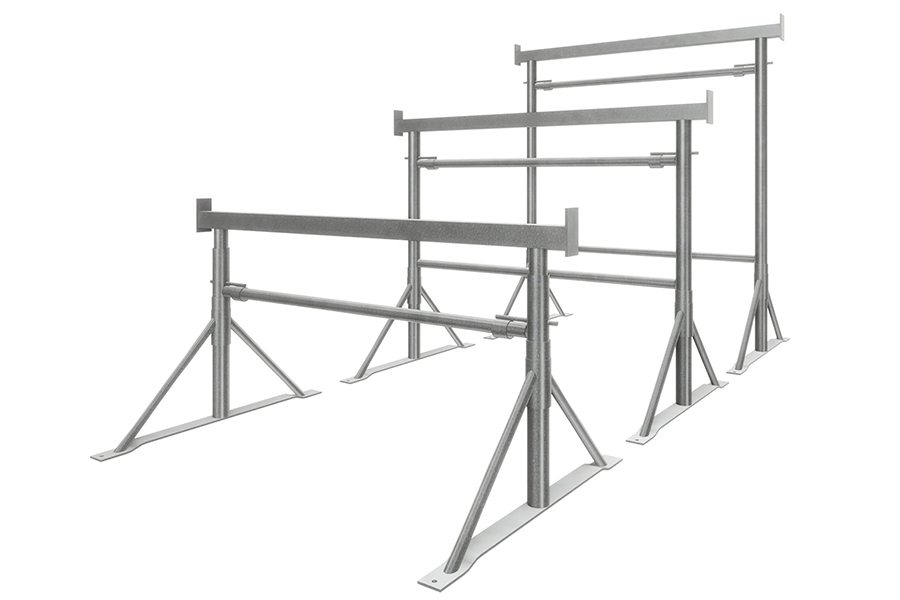

Size 1, Size 2 and Size 3 builders trestles in zinc-plated steel standing side by side
Builders Trestle Tables

Trestles for plastering, rendering and fit-out work

Plastering and ceilings

Ceiling work runs from the lower settings, chosen so the plasterer works with the ceiling at a comfortable reach. A full deck of boards across the trestle head gives room to stand, turn and keep materials close.

Rendering, facades and window installation

External ground is often uneven, so each trestle foot needs a firm, flat bearing, with soft or broken ground made good before the frames go down. Facade, render and window work often runs at the upper settings, which brings in the stabilisers and guardrails set out below.

Shopfitting and M&E fit-out

Fit-out work moves from room to room as it progresses, so shopfitters, electricians and mechanical fitters need trestles and boards that carry through doorways and up stairs. In occupied shops, offices and service corridors, a short run of two trestles under one span of boards reaches ceiling voids and high-level services while the floor around it stays clear.

Trestle spacing, scaffold boards and safe working load

Trestles carry their rated 460kg safe working load when they stand no more than 1.2m apart along the run, which is what the load centres in the rating mean, with four scaffold boards laid side by side across each head. A longer platform takes more trestles at the same spacing.

Set every trestle in the run at the same pin hole so the deck sits level. Stand the trestles square on firm, level ground or a sound floor, and run the boards along the line of the work, so operatives move parallel to the wall or ceiling and every board end rests on a trestle head.

Trestle Table Ladder Bracket
Trestle Table Stabiliser

Stabilisers and edge protection for trestle platforms

A platform above 1.2m takes one stabiliser per trestle, and guardrail parts made to BS EN 13374 turn the same platform into an edge protection system with a guarded way on and off. The guardrail parts are powder coated in high-visibility yellow, and the stabilisers, brackets and gate are made in the UK.

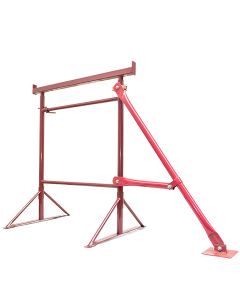

Trestle stabilisers

Trestle stabilisers brace each frame at its base, which stiffens the platform and resists sideways movement as operatives work and handle materials. They fit every HERMEQ trestle size without specialist tools and lock in place for the length of the job.

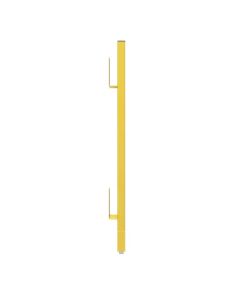

Trestle safety posts

Trestle safety posts fix to the trestle head and hold scaffold boards in pressed slots as a guardrail and toe board. Fitted along an open edge, such as the outer face of a facade platform or the side of a stairwell, they turn the trestle run into an edge protection system.

S brackets for trestle boards

S brackets for trestle boards overlap one board onto the next where a run is longer than a single span. They also join handrails and toe boards at each joint, so the guardrail carries on unbroken along the platform.

Trestle ladder brackets

A trestle ladder bracket fixes to the trestle system to give a secured ladder access point onto the platform.

Trestle gates

A trestle gate is fitted with the ladder bracket at the face of the platform, where it closes the access point with a locking gate and the guardrail continues either side. Choose it where entry onto the platform needs to be controlled, such as on shared sites or on platforms left standing between shifts.


Frequently Asked Questions

Are builders trestles the same as bandstands?

Yes. Bandstands and builders stands are the trade's other names for builders trestles. All three describe the same adjustable steel frame that carries scaffold boards as a working platform.

What is the difference between builders trestles and workbench trestles?

Builders trestles carry scaffold boards as a platform that operatives stand and work on. Workbench trestles and sawhorses hold a workpiece, such as timber being cut or a door being planed, at bench height. For work at height, the access platform is built on builders trestles.

Can builders trestles be used outdoors?

Yes. The tubular steel frames are zinc plated, which resists corrosion in wet weather on rendering, facade and window work as well as indoors. Storing the trestles dry between jobs keeps the finish in good order.

How is the height of a builders trestle adjusted?

Each trestle has a row of pin-locking holes at set intervals up the frame. The pin is drawn out, the head raised or lowered to the chosen hole and the pin pushed back fully home. No tools are needed.

Do builders trestles fold for storage and transport?

Yes. The frames fold to a compact size, so a set of trestles stacks in a van, store or site cabin and moves between jobs with the boards.
