Vehicle Access Barrier
HERMEQ vehicle barriers control access to construction sites, event spaces and commercial premises. The range stops unauthorised vehicles, defines perimeters and manages traffic for temporary works and long-term installations, at site entrances, car parks, checkpoints and restricted zones.
Manual raise arm barriers, swing gates, bollards, parking posts and precast concrete security blocks sit alongside automatic barriers, speed gates and rising bollards for entrances that open all day. Steel units are galvanised, stainless or powder coated, concrete units are precast with forklift slots, and HERMEQ manufactures in the UK with in-house steel processing.
Types of vehicle barriers
The range divides into barriers that open and close to let authorised traffic through, and barriers that close a route or frontage to vehicles altogether.
Raise arm barriers

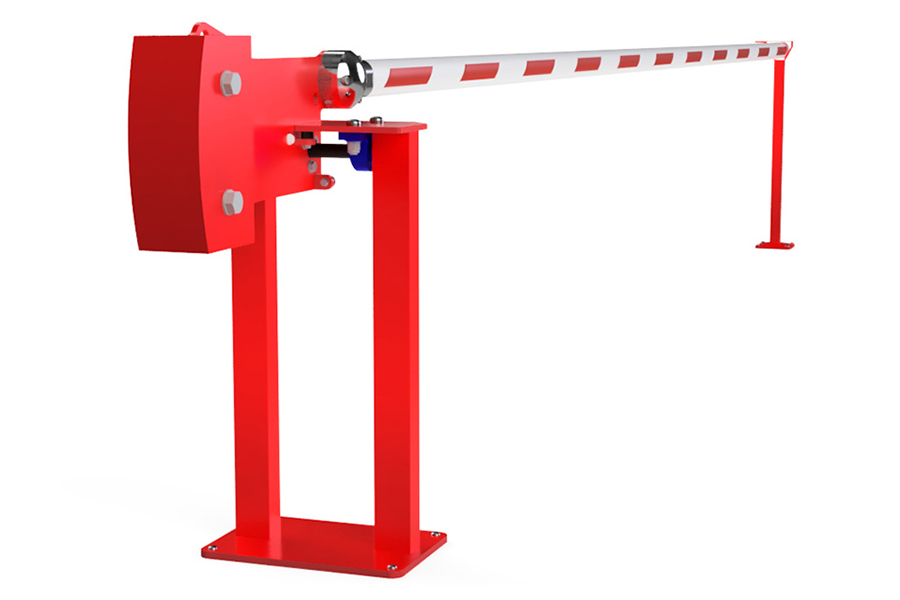

For an entrance used through the day, the usual choice is an arm that lifts clear of the lane, known in the trade as a boom barrier, rising arm or lift arm barrier. HERMEQ supplies manual raise arm barriers for car parks and compounds, a counterbalanced heavy duty raise arm barrier for wide HGV entrances, and a gas-assisted rising arm barrier for entrances where the arm is lifted many times a shift. Automatic barriers take over where the entrance opens too often to staff. Barriers for parking entrances alone are also grouped under car park barriers.
Swing gates and rectangular barriers

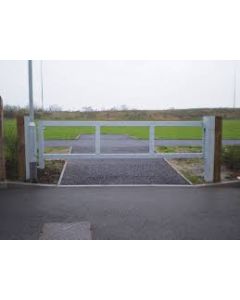

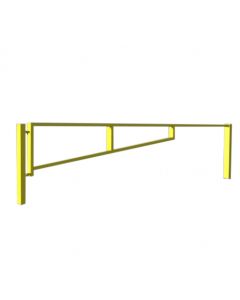

An entrance that stays shut for long periods, such as a yard or service road after hours, is best closed with a gate that swings on a hinge post and needs no power or counterweight. Swing arm gates suit low-traffic and unmanned access roads, while rectangular swing barriers in galvanised steel give a fuller, more visible closure for car park and estate entrances. On a temporary fence line, site gates hang from the fencing itself.
Automatic speed gates
Where a secure perimeter has a busy vehicle entrance, an automatic gate closes the full height of the opening and opens fast enough to stop vehicles queuing back onto the road. Bi-folding speed gates and automatic bi-folding gates fold their leaves back on themselves, which suits entrances with little room for a swinging leaf. Automatic swing gates open through 180 degrees to give larger vehicles full clearance.
Fixed bollards
A line of permanent posts closes a frontage to vehicles while pedestrians walk between them, which makes bollards the choice for shop fronts, pedestrianised zones, building entrances and the edges of car parks. Stainless steel bollards and brushed stainless fixed posts suit architectural settings, and galvanised mitre top bollards cover car parks and perimeters, with reinforced versions for higher-impact positions.
Removable, retractable and fold-down posts
Single bays, driveways and emergency lanes that still need occasional vehicle access are protected by posts that lock upright and lower or lift out when needed, known as parking posts or retractable bollards. Removable parking posts lift out of a ground socket and take the site's own padlock, while retractable posts with an integral lock and padlockable retractable posts drop below ground under a flush lid. Flush-socket stealth posts raise and lower with a key, and fold-down parking posts bolt to the surface and hinge flat with no excavation.
Automatic rising bollards

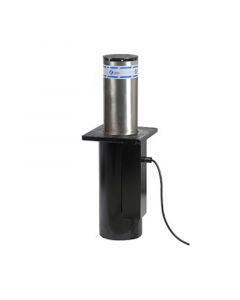

Where a road or entrance must close without an arm or gate across it, hydraulic bollards rise from the ground and lower flush for authorised vehicles. Automatic rising bollards in stainless steel suit private roads and business entrances with heavy daily use, and one control box runs a group of bollards across a wider opening.
Concrete security blocks and Jersey barriers
Precast concrete closes land, depots, field gateways and disused entrances to vehicles with no groundwork, because its weight holds it in place. 2 tonne concrete security blocks are compact enough to close a gateway or block a track, while interlocking concrete Jersey barriers form a continuous wall along a perimeter or traffic route and move as the job changes.
Temporary vertical concrete barriers
A carriageway or construction site that needs a crash tested road restraint between traffic and workers or pedestrians takes the TVCB. Temporary vertical concrete barriers link into a continuous run with a vertical face, and their test rating is set out under crash tested barriers below.

Manual or automatic barriers
The choice turns on how often the entrance opens, whether someone is on hand to open it and whether a mains supply can reach it. Manual raise arm barriers, swing gates and removable or retractable posts suit entrances that open a few times a day, entrances where a gatehouse or site team is already present, and remote compounds with no power. Each locks open or closed with a padlock or key, so a manual unit can stand open through the working day and be secured at night.
Automatic arm barriers, speed gates and rising bollards suit entrances in constant use or with nobody on hand to open them. They need a mains supply run to the unit, and they connect to access control such as fobs, proximity cards, tokens and intercoms, so entry can be limited to a set list of users or granted remotely from reception. Safety loops on the arm barriers and obstacle sensors on the rising bollards stop the arm or bollard moving onto a vehicle or person in its path.
Temporary and permanent security barriers
How a barrier is held in place decides whether it can move with the job or stays for the life of the entrance.
Free-standing barriers for sites and events
Concrete security blocks and Jersey barriers stand under their own weight with no bolts or footings, so they go in on the day of delivery and come out when the job or event ends. Forklift slots and lifting points let a forklift, or a crane with a lifting clutch, set them in place and reposition them as access routes change.
Cast-in, bolt-down and socket fixings
Permanent units are fixed in one of three ways. Ragged bollards and the posts of rectangular barriers are cast into concrete, flanged bollards, fold-down posts and arm barrier pedestals bolt to an existing concrete base, and removable posts, retractable posts and rising bollards sit in a casing set below ground. A rising bollard's casing can go in with the groundwork and take its mechanism later, which suits staged projects and retrofits.
Checks before delivery and installation
Concrete deliveries need the offloading method agreed at the time of order, since a 2 tonne block needs a forklift or crane at the drop point, and HERMEQ can supply lifting clutch kits with the order. Retractable posts and rising bollards need an excavation deep enough for their casing, and the ground is scanned for buried services before any digging starts. Bolt-down units need a sound concrete base to fix into, and automatic units need a cable route from the supply to the entrance.

Crash tested and hostile vehicle barriers
A barrier's weight and its test rating are different things. Concrete security blocks and Jersey barriers stop and deter vehicles through their mass, which is what most site perimeters and land closures need, and mass alone carries no test rating. The temporary vertical concrete barrier is crash tested to EN 1317 as a road restraint system at N1 and N2 containment levels, and it must be installed by a Highways Agency approved contractor for the installation to meet that standard.
Hostile vehicle mitigation and anti vehicle barriers are specified against a vehicle impact test named in a security assessment or in the client's specification. Where a specification names a test, the barrier chosen has to state that same test in its listing, so you compare the standard each product names with the one the specification asks for before ordering.
Specifying a vehicle barrier system
Once the type and operation are settled, the width of the opening, the finish and, for bollards, the layout complete the specification.
Entrance width
Every barrier is sized to the clear width of the opening, and an arm barrier or gate also needs room at the side for its pedestal, hinge post or folded leaves. Automatic bi-folding and swing gates give up to a 10 metre clear opening in double leaf form, which covers the widest yard and depot entrances. A barrier controls width only, so an entrance that must also keep out over-height vehicles takes height restriction barriers on the approach.
Galvanised, stainless and powder coated steel
Galvanised steel is the hard-wearing standard for yards, compounds and car parks. Grade 304 brushed stainless steel suits building frontages and public spaces where appearance counts, with Grade 316 available on request for coastal and other corrosive settings. Powder coating adds colour and visibility over steel, and HERMEQ applies it in-house.
Bollard spacing and height
Bollards set no more than 1200mm apart stop a car passing between them while leaving room for pedestrians, pushchairs and wheelchairs. Taller bollards are easier for the drivers of vans and lorries to see, so loading yards and service roads take higher posts than a pedestrianised street, where a lower bollard keeps sightlines open.

Impact protection and traffic guidance
These products work alongside the barriers, protecting buildings and equipment from low-speed knocks and guiding traffic once it is through the entrance.
Hi-vis bollards and corner protection hoops
Hi-vis steel bollards in black with yellow bands mark and protect loading docks, plant entrances and service yards, where a driver must see the post well before reaching it. Corner protection hoops guard the corners of buildings, racking and parking bays against vehicles, forklifts and trolleys.
Protection rails and perimeter barriers
Low level protection rails keep forklifts off racking and machinery and stop vehicles overshooting the end of a bay. Perimeter barriers separate pedestrian walkways from forklift routes and fence off the area around machinery in warehouses and factories.
Traffic safety bollards

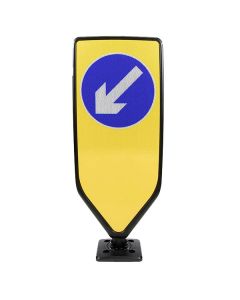

Traffic safety bollards are moulded plastic bollards with a sign face, used on keep left islands, roundabouts, cycle paths and site entrances to direct drivers.
Popular Categories

Ground Protection Mats
View Products >

Road Plates
View Products >

Bog Mats / Timber Mats
View Products >
Frequently Asked Questions
Do bollards stop a car being stolen?
A locked parking post or bollard in front of a parked car blocks the way out of a driveway or bay, so the car cannot be driven away while the post is raised. Retractable, removable and fold-down posts lock upright with a key or padlock and are lowered only by the keyholder.
Do automatic barriers and rising bollards work in a power cut?
Automatic rising bollards have a failsafe manual override, so an authorised user can lower them during a power cut and keep the entrance in use. Manual raise arm barriers, swing gates and parking posts use no power at all. For an emergency access lane, a removable or retractable post opened by key keeps the route usable with or without a supply.
What is the longest arm on a raise arm barrier?
The heavy duty manual raise arm barrier spans up to 9 metres with a plain pole, or 8 metres with a skirt fitted beneath the arm. Standard manual barriers come in lengths from 3 to 7 metres. Openings wider than a single arm can take a double leaf automatic gate.
How do pedestrians get past a vehicle barrier?
A raise arm barrier or swing gate closes the carriageway, so pedestrians need their own route beside it, marked or fenced off from the vehicle lane. On a fenced site, a separate pedestrian gate in the fence line keeps people clear of the barrier as it moves. Bollards leave gaps that people walk straight through, which is why they are used where a frontage must stay open on foot.
What colours do vehicle barriers come in?
Barrier arms come in red and white or yellow and black, and swing arm gates are powder coated yellow. Concrete Jersey barriers and temporary vertical concrete barriers are supplied grey and unpainted, or painted red or white. Bollards and posts come galvanised, in brushed stainless steel or with a coloured coating, including black with yellow bands for high visibility.
