HERMEQ DACHSelf-Righting Traffic Cylinder
Product Highlights
- Self-Righting Flexible Design – The LDPE cylinder bends on contact and returns upright, making it suitable for traffic routes where occasional vehicle contact may occur.
- Three Height Options – Choose from 460mm, 750mm or 1000mm cylinders to suit different traffic-management and delineation layouts.
- Reflective Traffic Guidance – Microprismatic retro-reflective sheeting helps make the cylinder more visible in low-light traffic environments.
SKU PB3387

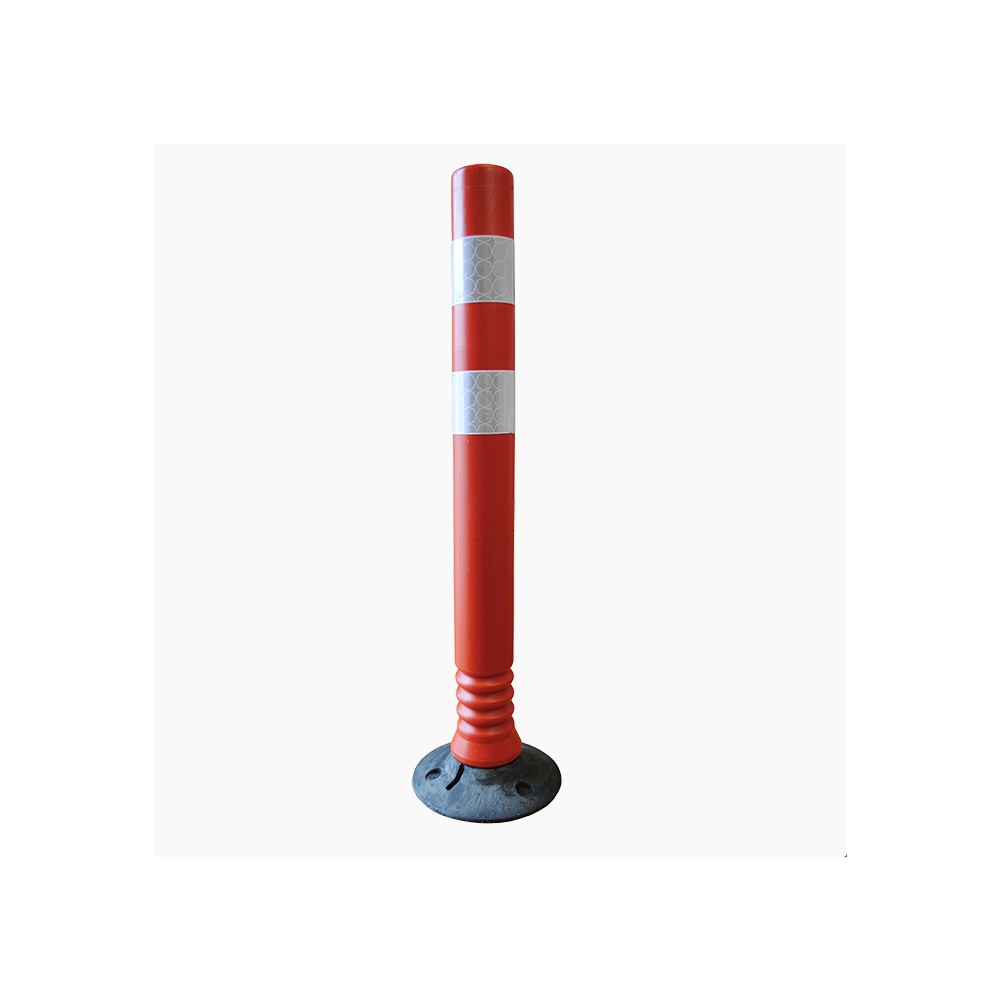

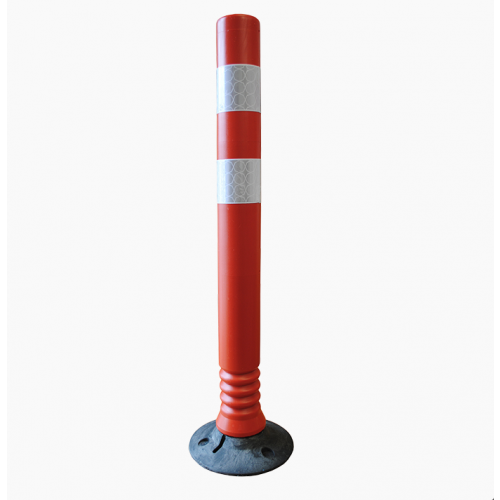

The HERMEQ Self-Righting Traffic Cylinder is a flexible LDPE traffic delineator designed to bend on contact and return upright. Available in 460mm, 750mm and 1000mm heights, it features microprismatic retro-reflective sheeting for visibility and is suited to traffic guidance, lane separation, car parks, roadworks and temporary pedestrian routes.
Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery
The Self-Righting Traffic Cylinder provides a flexible alternative to rigid posts where a clearly visible traffic delineator is required. Its lightweight LDPE body is designed to flex when contacted before returning upright, helping maintain a defined lane, route or boundary.
- Flexible LDPE construction – The cylinder is made from LDPE, allowing the body to flex rather than remain rigid when contacted.
- Self-righting action – Designed to return to its upright position after being bent by vehicle contact.
- Retro-reflective sheeting – Microprismatic reflective material improves the visibility of the cylinder to approaching road users.
- Choice of three heights – 460mm, 750mm and 1000mm options allow the product to be matched to different road, site and car park layouts.
- Ground-fixed installation – The cylinder can be used with the Cats Eye Base, with adhesive pad specifications provided for installation on a suitable stable surface.
This flexible traffic cylinder can be used to define vehicle lanes, guide traffic through temporary layouts, separate routes within car parks and identify hazards around roadworks or utility works. It can also be used for pedestrian delineation around temporary footways and crossings where the selected traffic-management design calls for this type of product.
The Cats Eye Base measures 275mm in diameter and 50mm high, with a weight of 1.40kg. The associated adhesive pad is 260mm in diameter and 2mm thick, with a stated application temperature range of 5°C to 30°C.
HERMEQ stock a wide-range of Cones, Traffic Management Equipment, Road Signs & Road Plates conforming to all required safety specifications and regulations.
Need any help? Contact HERMEQ Today.
Contact our team via phone 0800 043 2520, email sales@hermeq.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
| Material | LDPE |
|---|---|
| Visibility | Microprismatic retro-reflective sheeting |
| Height Options | 460mm / 750mm / 1000mm |
| Weight – 460mm | 0.50kg |
| Weight – 750mm | 0.70kg |
| Weight – 1000mm | 0.90kg |
| Base Type | Cats Eye Base |
| Base Height | 50mm |
| Base Diameter | 275mm |
| Base Weight | 1.40kg |
| Adhesive Pad Thickness | 2mm |
| Adhesive Pad Diameter | 260mm |
| Adhesive Pad Temperature Range | 5°C–30°C |
| Suitable For | Traffic guidance, lane definition, vehicle segregation, car parks, roadworks, pedestrian delineation and hazard marking |
| Standards / Guidance Listed | BS EN 13422; Chapter 8 – Traffic Signs Manual; Safety at Street Works & Road Works – A Code of Practice; Traffic Signs Regulations & General Directions |
What is a self-righting traffic cylinder?
A self-righting traffic cylinder is a flexible traffic delineator designed to bend when contacted and return to its upright position. This makes it useful for marking routes, lanes and traffic-management boundaries where a rigid post may be less suitable.
What sizes are available for this traffic cylinder?
The Self-Righting Traffic Cylinder is available in 460mm, 750mm and 1000mm heights. The corresponding cylinder weights are 0.50kg, 0.70kg and 0.90kg.
What is the traffic cylinder made from?
The cylinder is manufactured from flexible LDPE. This allows the body to bend on contact and return upright rather than functioning as a rigid traffic post.
Does the traffic cylinder return upright after vehicle contact?
Yes. The cylinder is designed to flex when contacted and then self-right. It is intended for traffic delineation and guidance applications where occasional contact may occur.
How is the traffic cylinder fixed to the ground?
The cylinder can be installed using the Cats Eye Base. The associated adhesive pad measures 260mm in diameter and 2mm thick, with a stated application temperature range of 5°C to 30°C. Installation should be carried out on a suitable stable substrate.
Where can self-righting traffic cylinders be used?
They can be used for lane definition, vehicle segregation, car parks, roadworks, temporary traffic layouts, pedestrian delineation and hazard marking. The correct layout and installation method should be selected for the specific site and traffic-management requirements.
