Underground Service Protection

HERMEQ supplies underground service protection for marking and protecting buried utilities on construction, highways and infrastructure projects. Utility contractors, groundworkers and civil engineers use the range to reduce the risk of service strikes during excavation and to leave a lasting record of where cables and pipes run. It covers underground warning tape and mesh, detectable versions with a tracer wire, and heavy duty cable protection covers that form a physical barrier and a printed warning over electric cables and other services. Reinforced concrete protection slabs carry loads above buried mains, and concrete marker posts and blocks identify routes at the surface. Every product can be bought online with nationwide delivery.

18 Items

Set Descending Direction
per page

Underground warning tape, mesh and cable covers

A warning layer tells the person digging that a service is close, while physical protection stands between the service and the tool or load that would damage it. The range builds from a visual warning in tape and mesh, through detectable versions that can be located from the surface, to impact protection from cable tiles and tile tape, load protection from reinforced concrete slabs, and a permanent record from marker posts and blocks. The right level depends on the threat the service faces: a future excavation by hand or machine, traffic and plant passing over it, or the route being lost from the records.

Underground warning tape

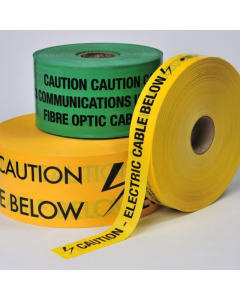

Also sold as marker tape or utility marking tape, this is a polyethylene film printed with a legend that names the service beneath it. It is laid flat in the backfill above a cable or pipe, so a bucket or spade uncovers the warning before it reaches the service. HERMEQ supplies underground warning tape for each of the main services.

Warning mesh

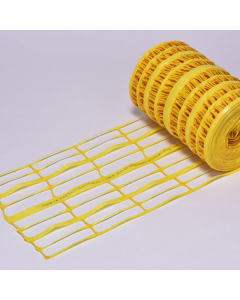

An open polypropylene mesh printed with a service legend gives a stronger, tear-resistant warning band in the backfill than film. Warning mesh is used above electric, gas and water services, and it is the choice where a heavier warning layer is wanted, for example where excavation will be by machine.

Cable protection tiles and tile tape

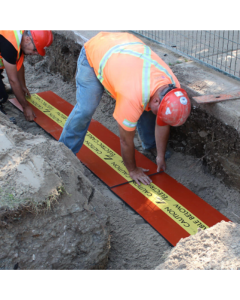

Known on site as cable tiles or cable covers, these are rigid recycled polyethylene boards laid directly over a cable to take a strike from hand and mechanical tools before it reaches the service. They are the standard form of underground cable protection over high voltage cables, main feeds and communications ducting, and the heavy duty cable protection covers come in Type A and Type B grades to match the protection the network specifies. Each cover is printed with a warning, so one product is both the protection and the warning layer.

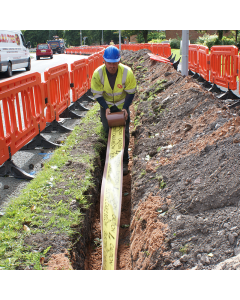

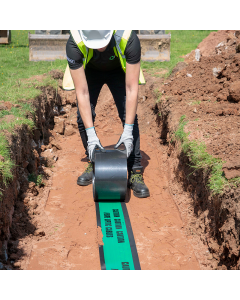

Tile tape is the same idea in a continuous roll: a thick, flexible recycled polyethylene strip that unrolls along the trench in one length. The Tapetile cable protection roll suits long cable runs where laying individual tiles would be slow. Fibre routes take the fibre optic cable protection tape, which carries a fibre optic caution legend.

Utility and pipe protection slabs

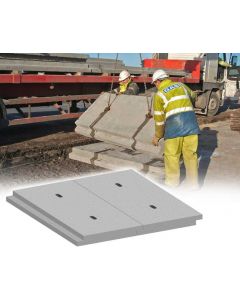

Where a service runs beneath a road, yard, car park or haul route, the threat comes from load as much as from digging. Utility and pipe protection slabs are precast reinforced concrete with steel mesh in both faces, and they interlock into a continuous deck over gas mains, power cables and water pipes. To carry traffic across an open excavation while the works are under way, road plates are the product for vehicles, and trench covers bridge smaller openings.

Yellow heavy duty cable protection covers laid in a line over a cable in an open trench

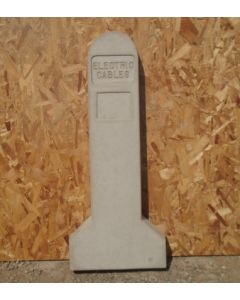

Electric Cables Concrete Marker Post

Concrete marker posts and service marker blocks

A concrete marker records at ground level what runs beneath, long after the tape and mesh are buried and the trench is reinstated.

Cable and hydrant marker posts

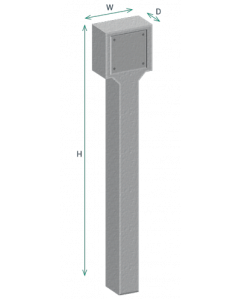

A standing post is the choice where a route or asset has to be seen from a distance across a verge, field edge or open ground. Electric cable marker posts mark cable routes along highways and infrastructure corridors. Concrete hydrant marker posts have recesses that hold the hydrant identification plate, so the plate can be renewed without replacing the post.

Service marker blocks

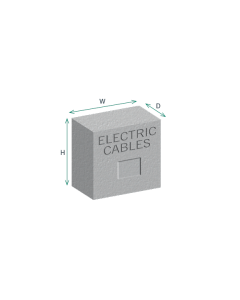

A marker block sits low in grass, pavement, verge or tarmac, where a post would be in the way of mowers, pedestrians or vehicles. Concrete service marker blocks carry legends for electric, fibre, gas and water services. The posts and blocks are precast concrete tested to BS 1881, and the hydrant posts and marker blocks are made in the UK.

Detectable or plain warning tape and mesh

Plain tape and mesh warn only when they are uncovered, while detectable versions carry a tracer wire that a cable avoidance tool and signal generator (a CAT and genny) can locate from the surface before anyone digs. Plain tape or mesh is the right choice over metallic cables and pipes that a locator can already find, and where the warning only has to stop an excavation that is already under way.

Detection matters most over services that give a locator nothing to find: polyethylene gas and water pipes, sewers and fibre ducts. Over these, the tracer wire lets the route be traced from the surface years later, without relying on drawings or trial holes.

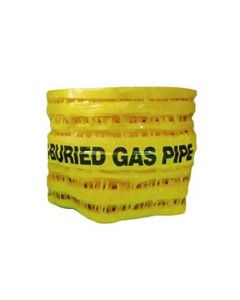

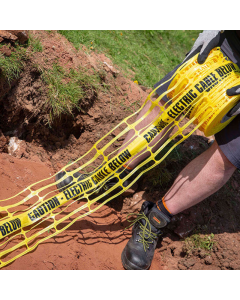

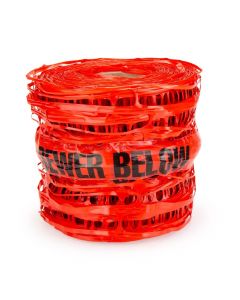

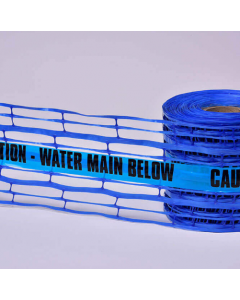

For electric cables, HERMEQ supplies detectable warning tape with a stainless tracer wire, along with electrical detectable warning mesh. Plastic gas mains take the gas detection mesh. Water routes take the water mains detection mesh, and drainage runs take the sewer detection mesh. Detectable warning mesh also comes with street lighting and fibre optic legends.

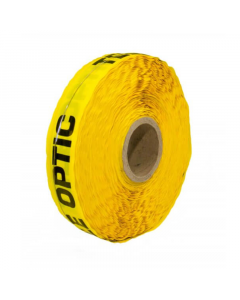

Electrical Warning Detection Tape
Concrete Service Marker Blocks 300 x 300 x 150

Layering protection over buried services

Each layer goes into the trench so that a future excavation meets the warning before the protection, and the protection before the service. Cable tiles, tile tape or protection slabs are bedded directly over the service, warning tape or mesh is laid in the backfill above them so the bucket uncovers it first, and a marker post or block records the route at ground level.

A trench that carries more than one service needs a separate warning for each, laid along that service's own line, so the legend that is uncovered names the service directly beneath it. Marker posts are usually set at changes of direction and at intervals along long runs, so the route can be followed at the surface. Deeper excavations are supported with trench sheets while the services and their protection go in.

Service legends, DNO specifications and standards

Once the type is settled, the order turns on the printed legend and the specification the adopting network works to.

Matching the legend to the service

The printed legend must match the service in the trench. Underground warning tape carries legends for electric cable, gas main, water pipe, telephone cable, fibre optic cables and foul sewer. Detectable mesh adds legends for electric street lighting cable, water mains and sewer.

Network operator legends

Where a distribution network operator or National Grid will adopt the cables, the operator's own specification sets the legend and often the product. The range carries operator legends and specifications for SSE, ENW, SPEN, WPD, NPG, UKPN and National Grid alongside generic text, across detectable tape and Tapetile rolls. Check the adopting operator's specification before ordering and buy the matching legend, because that specification is what the installation is checked against at adoption.

ENA TS 12-23 and EN 12613

ENA TS 12-23 is the Energy Networks Association specification for cable protection and warning products, and EN 12613 is the European standard for plastic warning devices laid over underground cables and pipelines. The underground warning tape, warning mesh, detectable mesh and heavy duty cable covers are tested to both. The covers are also impact classed under ENA TS 12-23 against strikes from hand and mechanical tools, and they meet BS 2484.

Utility & Pipe Protection Slabs

Frequently Asked Questions

What are buried services?

Buried services are the cables, pipes and ducts laid below ground to carry electricity, gas, water, sewage, telecoms and data, including street lighting cables. They are also called underground services or underground utilities.

How deep should underground warning tape be laid?

The depth is set by the asset owner's or network operator's specification for each service. The tape or mesh goes in the backfill between the service and the surface, high enough to be uncovered before a tool reaches the service. Detectable tape and mesh must also sit within range of the locator that will be used to find them.

Is underground warning tape adhesive?

No. Underground warning tape is a non-adhesive polyethylene film that is rolled out flat over the backfill and then covered.

Can cable protection covers be laid over gas and water pipes?

Yes. Heavy duty cable protection covers are used over gas, water and telecoms networks as well as electricity cables, to protect the service from strikes by hand and mechanical tools.

Do warning tape and mesh break down in the ground?

Warning tape and mesh are made from polyethylene and polypropylene that resist acidic and alkaline soils, and the polyethylene cable covers are waterproof and rot-proof. They are made for long-term burial, so the warning is still in place when the route is next excavated.

How are warning tape and mesh supplied for large schemes?

Warning tape and mesh come on rolls, with detectable tape in lengths up to 365m and detectable warning mesh sold in packs of 120 rolls for utility schemes and housing developments. Plain warning mesh and Tapetile rolls are sold singly for smaller jobs and repairs.
