HERMEQ GermanyUtility & Pipe Protection Slabs
Product Highlights
- Heavy-duty concrete slab - Offers reinforced protection for vulnerable underground pipes and services.
- Double-mesh reinforcement - Both slab faces come steel-mesh reinforced for maximum durability.
- Interlocking design - Simplifies installation while ensuring structural integrity and load resistance.
SKU CB2924
These precast concrete pipe protection slabs provide structural shielding for underground services. Designed to prevent mechanical damage during excavation and resist loading from vehicular and plant traffic, they are a proven protection method for high-risk infrastructure zones. Used widely across civil engineering and utility installation sectors, they offer long-term defence against impact, weight and movement above ground.
Each unit is fabricated from high-strength concrete and double-reinforced with steel mesh on both sides, increasing resilience under pressure. Designed for simplicity, the slabs feature interlocking edges that stabilise placement and streamline installation, even in trench or uneven subgrade applications.
Key Features & Benefits- High compressive strength concrete - Delivers robust shielding from direct load and point pressure above buried assets.
- Heavy-duty mesh reinforcement - Both sides of each slab are mesh-reinforced, increasing durability in harsh groundworks conditions.
- Simple interlocking slab system - Speeds up installation while maintaining slab alignment and trench stability.
- Suitable for multiple services - Used to protect water pipes, power cables, and high-pressure gas mains from damage.
- Supplied in standardised sizes - Each slab measures 2500mm x 1000mm x 150mm for consistent coverage.
In groundworks and utility protection, proper shielding of pipelines and cables is vital to avoid future repair costs and operational risk. These concrete protection slabs are an essential safety measure to prevent unintentional damage caused by excavation tools or above-ground traffic pressures. Each slab's mesh-reinforced build enhances its ability to withstand shifting ground and continuous loads in demanding construction environments.
Pipe protection slabs are commonly installed above sensitive utility runs such as concrete-encased ducts, steel pipelines, and high-voltage cables. Their solid profile distributes load evenly across their footprint, reducing pressure points that might otherwise compromise the integrity of buried services.

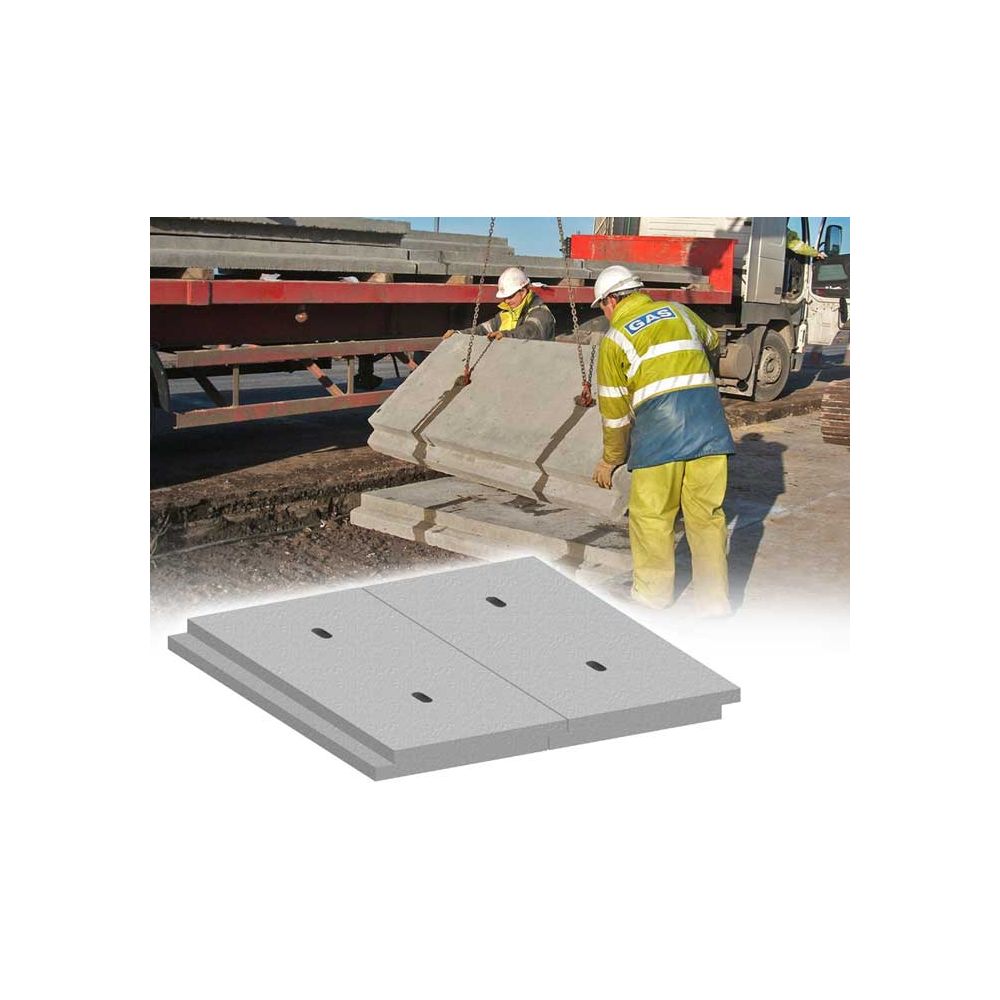

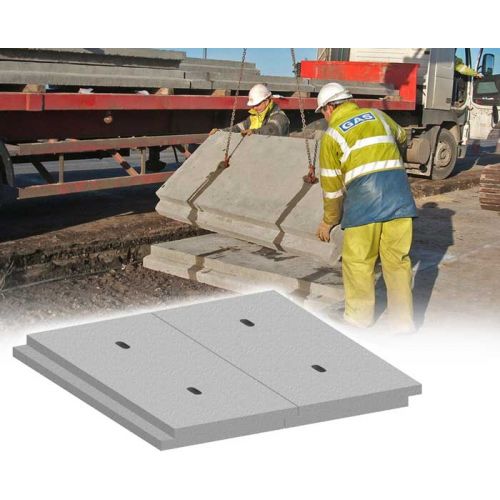

Thanks to the interlocking system, installation is both secure and efficient. Two lifting clutches are required per slab, allowing for quick placement via crane or excavator without compromising the slab’s structural stability. These slabs are an industry-trusted option for long-term performance and safety on high-specification projects.
HERMEQ stock a wide-range of Underground Service Protection, Groundworks, Ground Mats & Road Plates conforming to all required safety specifications and regulations.
Need any help? Contact HERMEQ Today.
Contact our team via phone 0800 043 2520, email sales@hermeq.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
Concrete pipe protection slabs are a critical element in infrastructure risk management, especially in construction and civil engineering sites where utilities are often buried beneath active roadways or work zones. Their robust structure and resistance to heavy loads make them a preferred choice for engineers and contractors seeking long-lasting underground protection.
Each unit is manufactured using precast techniques to ensure consistent strength and performance. Reinforced with mesh on both faces, these slabs meet the demands of load-bearing environments while preventing service damage from excavation or settlement. The concrete itself is selected for its high compressive strength and weather resistance, making these slabs reliable in all climates and soil types.
The interlocking feature of these pipe protection slabs simplifies alignment during trench installations, keeping the coverage continuous and secure. Once placed, they act as a load-spreading shield across pipelines, reducing the risk of concentrated stress or accidental penetration. This is particularly beneficial when used above gas mains or other pressure-sensitive utilities that cannot afford compromise.
Pipe protection slabs are commonly deployed during highway works, housing developments, utility upgrades, and industrial estate builds. Their size and weight ensure minimal ground movement once installed, and they offer an immediate protective layer without the need for curing or drying time. This efficiency reduces project delays and labour costs.
Contractors appreciate the predictability and simplicity these slabs offer. Unlike alternative protection systems such as plastic boards or backfill markers, concrete protection slabs offer permanent security with virtually no maintenance requirements. This makes them ideal for long-term infrastructure schemes that demand resilience and compliance with modern utility protection standards.
Concrete protection slabs are compatible with a wide range of underground services. Though primarily used for pipework and ducting, they are equally effective above electrical cable runs or drainage systems. Their wide 2500mm profile covers most standard trench dimensions in a single span, and their 150mm thickness provides a heavy-duty physical barrier.
For best results, installation should be performed using suitable lifting equipment fitted with HERMEQ-approved lifting clutches. This enables safe and accurate placement, even in deep excavations. The design also supports quick alignment checks to maintain slab continuity along the route of the service line.
What services are pipe protection slabs used for?
They are typically installed to protect underground assets like water mains, high-pressure gas pipes, power cables, and fibre networks from surface damage.
Do the concrete protection slabs require specialist lifting equipment?
Yes, two lifting clutches per slab are required for safe handling. They allow for fast, secure crane or excavator placement without structural damage.
Are these slabs reinforced?
Yes, each concrete protection slab includes steel mesh reinforcement on both faces, which boosts tensile strength and load durability.
Can they be used in high-traffic zones?
Yes, pipe protection slabs are specifically designed to handle mechanical pressure from vehicles and heavy plant crossing overhead areas.
