Temporary Vertical Concrete Barriers (TVCBs) - V28
Alternative Products
SKU CB151985

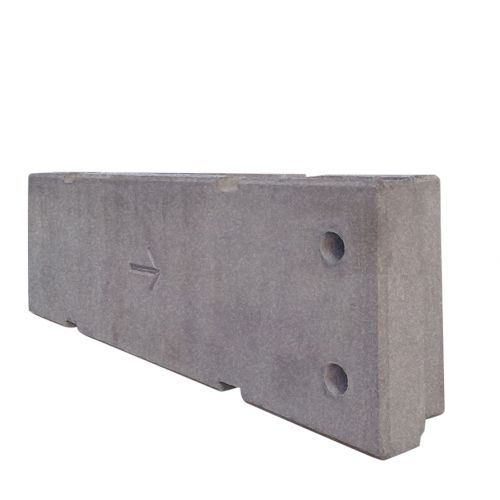

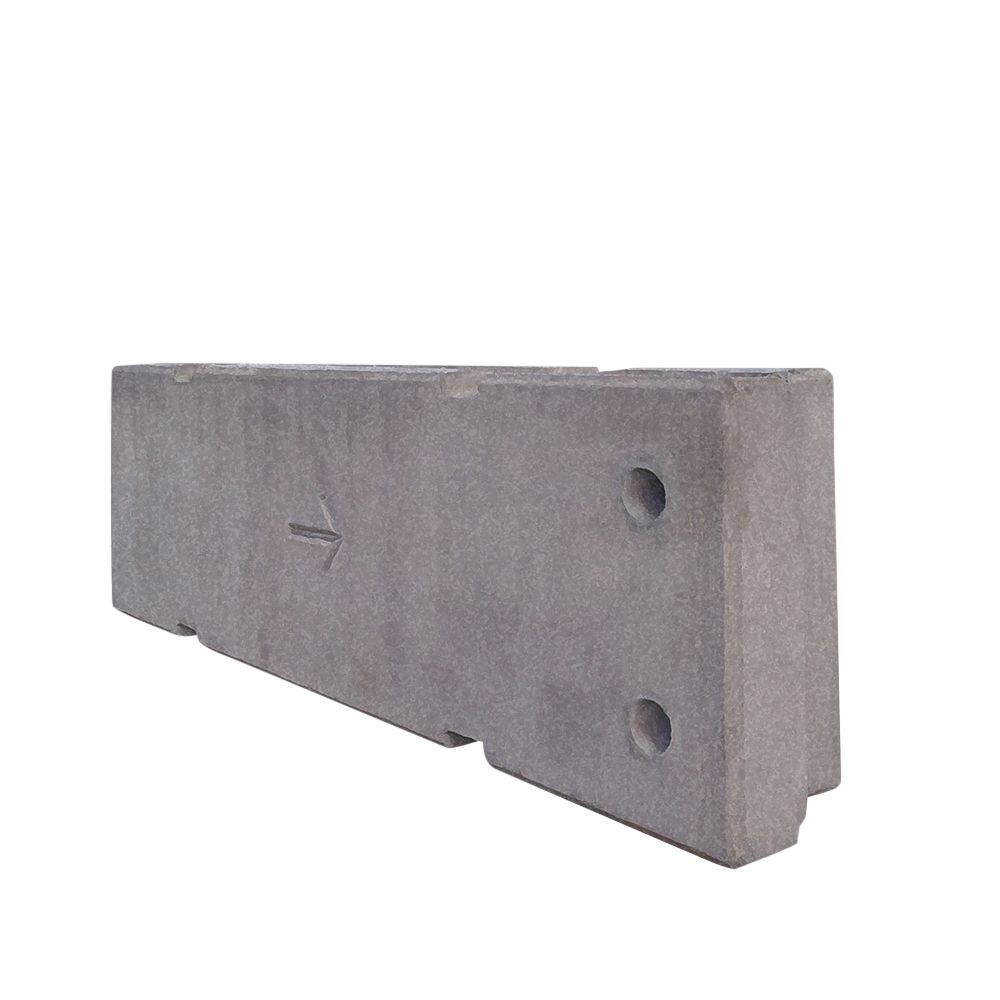

A crash tested concrete safety & security barrier - 3000mm x 450mm x 800mm - 2500kg. Our TVCB barriers are widely used both on roadways & construction sites for safely managing traffic & separating cars from pedestrians. These concrete crash tested barriers, Temporary Vertical Concrete Barriers (TVCBs), are manufactured in the UK & HERMEQ can deliver across the country on a next day service. We also offer a range of additional features, including painting the TVCBs to suit your needs, supplying fixing kits & on-ground vehicle and pedestrian gates that are especially designed to fix directly to the concrete barriers.
Â
Please Note: These barriers are only crash tested if connected with bolts and installed by an approved technician.
Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery
Temporary Vertical Concrete Barriers, shortened to TVCBs, are ideal for creating safe working areas for your workforce & preventing un-authorised access to private land. They are also used as traffic barriers & to help direct traffic flow as they are crash tested.
We also offer on-ground vehicle gates which connect directly to the TVCB barriers, using standard concrete fixings. See our full range of on-ground gates specifcally designed to work with concrete barriers and TVCBs - TVCB Gates
We hold stock of temporary concrete safety & security barriers. If you need them urgently on a next day service then please call our team on 0800 043 2520. These concrete safety barriers are connected together at the scarf joint by M24 high tensile bolts.
When making an order, you must select whether you require a Lifting Clutch for offloading. HERMEQ offer a range of Offloading Accessories and HiAb/ MOffet delivery options to enable you to safely and easily offload purchases. Failure to ensure you have the offloading equipment required may result in delayed delivery and us being unable to offload your order.
If you have any questions about this – please speak to our sales team for more information.
Product Specifications
| Overall Length | 3150mm |
| Modular LEngth | 3000mm |
| Width | 450mm |
| Height | 800mm |
| Weight | 2500KG |
TVCB Bolts are available to order as well – you will require 2 Bolts per Joint. For example, 3 TVCBs would have 2 Joints requiring bolts which would require 4 Bolt in total.
These precast concrete barriers are manufactured using high-strength concrete (50N/mm2). This is combined with Highways Agency specified steel reinforcement to create EN1317 "Compliant Road Restraint Systems for Temporary Safety Barriers" *Please note these must be installed by a Highways Agency-approved contractor to meet this standard
| Containment Level | Test Vehicle | Test Speed | Angle | Test Deflection | Working Width |
| N1 | 1500kg Car | 50mph | 20deg | 0.36m | W3 |
| N2 | 1500kg Car | 70mph | 20deg | 0.36m | W3 |
Concrete safety & security barriers are also used as:
- Concrete vehicle security barriers
- Concrete vehicle containment barriers
- Hostile vehicle mitigation concrete barriers
HERMEQ stock a wide-range of Entrance Barriers, Traffic Management, Permanent Fencing & Temporary Fencing conforming to all required safety specifications and regulations.
