Hi-Vis Pedestrian Barrier - Fixed Leg
SKU MB0930z
Quickest Available Delivery: 5 Days

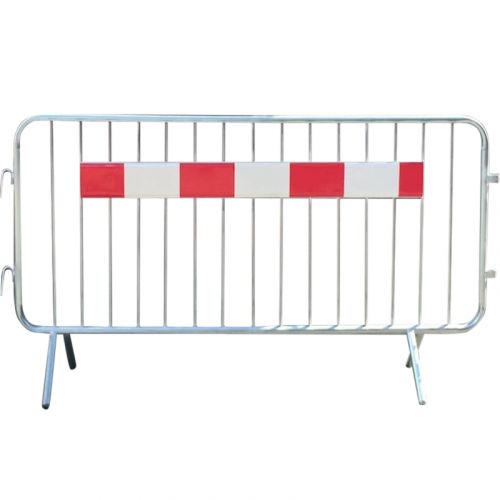

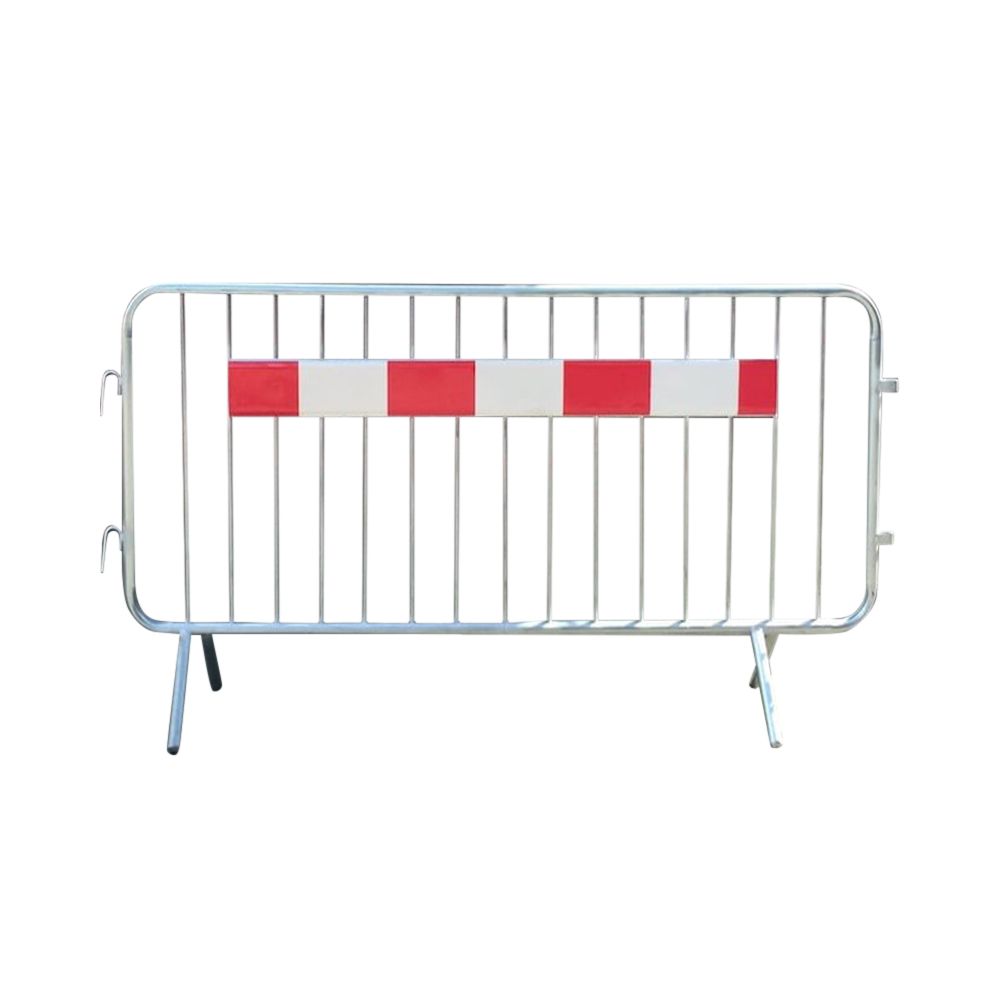

The HERMEQ Hi-Vis Pedestrian Barrier is a 2.3m fixed-leg steel barrier designed for temporary pedestrian guidance at construction sites, roadworks, events and public access areas. Its galvanised one-piece frame is fitted with a reflective strip on a welded steel plate, helping the barrier stand out more clearly in busy or low-light environments.
Product Highlights
- Integrated Reflective Strip: A high-visibility strip mounted on a welded steel plate makes the barrier easier to identify around pedestrian routes and temporary work areas.
- Fixed-Leg Setup: The welded leg format requires no separate feet, allowing barriers to be positioned without loose components.
- 2.3m Galvanised Steel Frame: A one-piece steel frame provides a practical barrier for repeat use across sites, events and public-facing locations.
Details
This fixed-leg hi-vis pedestrian barrier combines a traditional steel crowd barrier format with an integrated reflective feature. It is suited to contractors, event teams, local authorities, venues and site managers who need to create visible pedestrian routes, queues or temporary restricted areas without handling detachable feet.
- High-visibility barrier design: The reflective strip helps the barrier stand out more clearly against the galvanised steel frame.
- No detachable feet required: Fixed legs remove the need to fit, store or account for separate barrier feet during setup.
- One-piece construction: The 2300mm-wide frame is manufactured as a single barrier unit for straightforward placement and handling.
- Galvanised steel finish: The steel frame has a galvanised finish for use in temporary outdoor barrier layouts.
- Stackable format: The fixed-leg design is intended to allow multiple barriers to be stacked when they are not in use.
At 1100mm high and weighing 14kg, the barrier can be used to form temporary pedestrian lines around construction work, public events, queues, diversion routes and controlled access areas. Multiple barriers can be positioned together to define a route or mark where pedestrians should not enter.
The reflective strip is the main difference between this product and a standard fixed-leg crowd barrier. It makes this model a practical option where a more visible steel barrier is preferred, while the fixed legs suit buyers who value straightforward deployment over the flatter storage offered by removable-foot designs.
Browse the full Crowd & Pedestrian Barriers range first if you need to compare barrier types across different site, event and public-access applications. Choose the Hi-Vis Pedestrian Barrier – Loose Leg where removable feet and flatter storage are more important, or compare the Crowd Control Barrier – Fixed Leg when an integrated reflective strip is not required.
See the full range of Traffic Barriers.
Specifications
| Height | 1100mm |
|---|---|
| Width | 2300mm |
| Weight | 14kg |
| Frame Construction | One-piece steel frame |
| Material | Galvanised steel |
| Leg Type | Fixed legs |
| Frame Tubing | 38.1mm diameter × 1.2mm CHS |
| Infill Tubing | 12.7mm diameter CHS |
| Visibility Feature | Reflective strip mounted on a welded steel plate |
| Stackable | Yes |
| SKU | MB0930z |
| Suitable For | Temporary pedestrian guidance, queue layouts, construction sites, events, roadworks and public access areas |
| Not Suitable For | Vehicle-impact protection or stopping moving vehicles |
FAQs
What is a hi-vis pedestrian barrier?
A hi-vis pedestrian barrier is a temporary barrier with an added visibility feature. This model has a reflective strip mounted on a welded steel plate across its galvanised steel frame.
What size is the fixed-leg hi-vis pedestrian barrier?
The barrier measures 2300mm wide and 1100mm high. It weighs 14kg.
Does this barrier require separate feet?
No. The feet are fixed to the barrier, so there are no detachable barrier feet to fit during installation or store separately.
Where can this pedestrian barrier be used?
It can be used for temporary pedestrian guidance at construction sites, roadworks, events, public access areas, queues and controlled routes. Site-specific requirements should always be assessed before use.
What is the reflective strip attached to?
The reflective strip is mounted on a welded steel plate integrated into the barrier frame.
Can the barriers be stacked?
Yes. The fixed-leg barrier is described as stackable, allowing multiple units to be grouped together for storage or transport.
