Car Park & Entrance Barriers
HERMEQ supplies car park barriers that manage access, control vehicle flow and secure entrances at commercial sites, construction zones and event spaces.
The range covers manual and automatic raise arm barriers alongside entrance gates, from manual swing arm and galvanised rectangular gates to automatic swing and bi-folding speed gates. Every barrier and gate is manufactured in the UK, with in-house steel processing and powder coating. Galvanised and powder coated steel stands up to daily outdoor use, so an entrance keeps unauthorised vehicles out while authorised traffic passes without delay.
Raise arm barriers, swing gates and automatic entrance gates
The range divides into arm barriers, which control vehicles through a lane, and gates, which close the whole entrance.

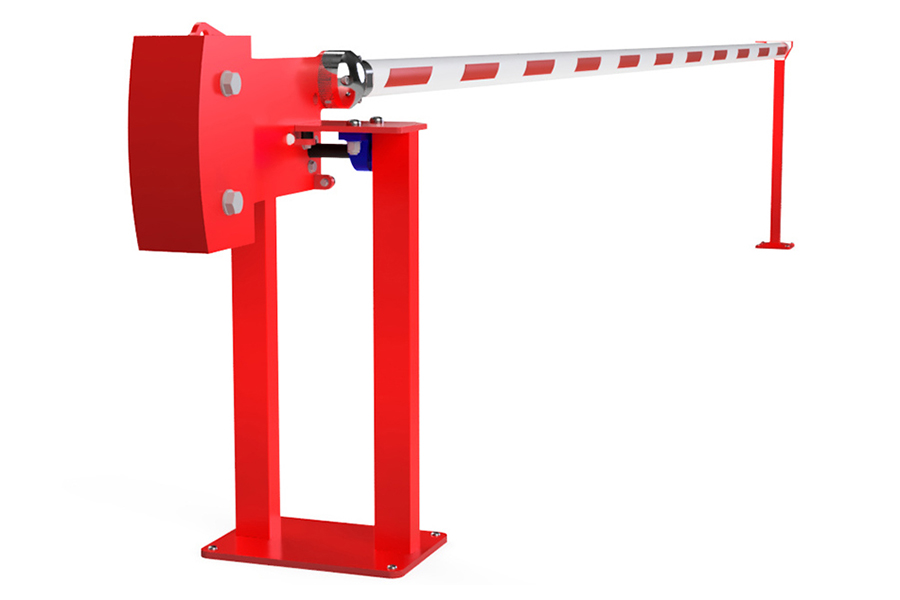

Manual raise arm barriers
A manual raise arm barrier, also known as a manual boom barrier or rising arm barrier, is lifted by hand on a counterbalanced pivot and suits entrances where someone is on hand to open it or where vehicles pass only occasionally. The standard model covers most car park entrances and restricted zones, while the heavy duty manual barrier spans the wide openings used by HGVs at logistics hubs, commercial estates and council depots. Where an attendant lifts the arm many times a shift, the gas-assisted rising arm barrier uses gas struts to take the weight of the arm, so each lift takes far less effort.
Automatic raise arm barriers
An automatic car park barrier is the boom gate found at private car parks, business parks and toll points: a motorised arm that rises when an authorised driver presents a credential and lowers once the vehicle has passed. Choose it where vehicles arrive throughout the day and nobody is stationed at the entrance.
Swing arm access gates
A swing arm access gate is a single steel arm hinged on an upright post and swung across the road by hand. It is the economical choice for unmanned, low-traffic entrances such as private service roads, storage yards and small staff car parks, where the gate is opened a few times a day and there is no power at the entrance.
Rectangular car park barriers
The galvanised rectangular car park barrier is a framed steel swing gate hung between hang and slam posts, and it presents a more solid stop across the entrance than a single arm. Retail parks, warehouses, NHS sites and land owned by local authorities use it to mark access boundaries, and with no electronics or motor it needs little upkeep once the posts are set.
Bi-folding speed gates
Bi-folding speed gates fold each leaf back on a hinge between its panels, so the gate opens much faster than a conventional swing gate. They are rated for 100% duty, which suits distribution depots, secure government sites and urban compounds where vehicles pass all day and a queue on the road is not acceptable. The automatic bi-folding gate brings the same folding action to entrances run from an access control panel and safety sensors.
Automatic swing gates
The automatic swing gate opens through a full 180 degrees on a single or double leaf, clearing the entire opening for wide and high vehicles. It is a galvanised full height gate, supplied preassembled and run by a programmable control panel, for vehicle entrances that must stay closed and secure between authorised movements and that have ground for the leaves to swing into.
Temporary vehicle gates for site entrances
The RB2000 vehicle gate is a freestanding steel gate on castors that connects into a run of RB2000 road barriers and opens wide enough for plant and delivery vehicles. Construction, roadworks and infrastructure projects use it to close a site entrance without posts, footings or power.

Manual or automatic car park barriers
The choice between manual and automatic operation depends on who runs the entrance and how often vehicles use it. A manual barrier is right where an attendant, gatehouse or site manager is close by, or where the entrance opens only a few times a day, and because it needs no power, cabling or controls it can go wherever the ground allows.
Automatic operation becomes worthwhile once authorised vehicles arrive throughout the day and nobody is free to lift an arm, because staff, residents, tenants and contractors then let themselves in. An automatic barrier needs a single phase supply, safety loop detection in the lane and an access control input, so power and cabling have to be planned before it is ordered.
Planning a car park barrier system
Arm barrier or full height gate
An arm barrier stops vehicles while the lane stays open beneath and around the arm, which is the right level of control for a car park that pedestrians still walk through. A compound, depot or yard locked out of hours needs a gate that fills the opening: the galvanised rectangular gate where the entrance is closed by hand, or the automatic swing and bi-folding gates, which stand up to 2.4 m high, where it has to open on demand.
Entrance width and arm span
Measure the clear opening between kerbs, walls or posts and allow for the widest vehicle that will use it, including HGVs turning in from the road. Arms in the range span up to 9 m and automatic gates give a clear opening of up to 10 m, so one barrier or gate closes most entrances, and a wider opening is split with a central island and a pair of barriers.
Space in front of the entrance
A swing gate needs its full arc kept clear of parked cars, kerbs and rising ground on the side it opens towards, and each leaf of a double gate needs its own arc. A bi-folding gate folds into a fraction of that space, which makes it the answer for a narrow frontage or an entrance set close to the road. With any barrier or gate, set the line of the entrance far enough back for a vehicle to wait off the public road while it opens.
Car park barrier installation
Arm barrier pedestals and end rests bolt down to a concrete base with anchor bolts, and gate posts are normally cast into concrete footings, so the groundwork is the first job on site. Planning the footings, power and access control cabling together means the surface is opened only once.
Temporary and permanent entrances
For a season, an event or one phase of a build, choose equipment that goes in without footings or a power supply. The gas-assisted rising arm barrier needs no electrics and installs quickly, so it suits overflow parking, seasonal car parks and event venues, and on construction and roadworks sites the RB2000 vehicle gate moves with the barrier run as the work progresses.

Entrance barriers for car parks, depots and site compounds
Private, staff and business park car parks
Queue time at the start and end of the working day matters most, so an automatic arm barrier that drivers open themselves is the usual choice. Covered and multi-storey car parks also fit height restriction barriers ahead of the entrance.
Council, NHS and school sites
Many of these entrances are shut at fixed times and controlled by keyholders, often with no power to hand. Rectangular gates, swing arm gates and manual raise arm barriers close them by hand.
Parking posts, bollards and barrier controls
Automatic rising bollards
Automatic rising bollards control an entrance without an arm across it, lowering flush with the road to let authorised vehicles pass and rising again behind them. They suit private roads and pedestrianised entrances, connect to the same access control systems as automatic barriers and have a manual override for power cuts.
Fixed, removable and retractable parking posts
Posts protect individual bays and close the secondary routes an entrance barrier does not cover. Stainless steel bollards mark a permanent line, and fold-down parking posts guard a single bay. Where a lane must open for emergencies or maintenance, removable parking posts lift out of a socket. Retractable parking posts and flush-fitting Stealth posts drop below ground instead and leave a level surface.
Control panels and electrical accessories

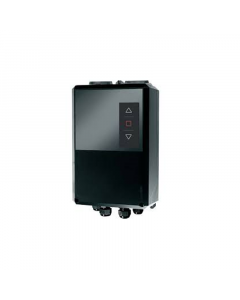

The Feig control panel runs automated barriers and gates from fobs, timers or linked security systems. A padlockable rotary isolator cuts power safely during maintenance.
Pedestrian gates for site entrances
The RB2000 pedestrian gate connects into the same barrier run as the vehicle gate, giving operatives their own walking route through the site entrance, and its anti-climb mesh keeps the run secure either side.

Popular Categories

Road Barriers
View Products >

Water Filled Barriers
View Products >

Cones
View Products >
Frequently Asked Questions
What are car park barriers also called?
Car park barriers are also called boom barriers, boom gates, raise arm barriers, rising arm barriers and bar gates, all names for a pivoting arm that lifts to let a vehicle through. Framed swing barriers are often sold as car park gates, and the wider group that includes full height gates is usually described as entrance barriers or vehicle gates and barriers.
How are automatic car park barriers controlled?
An automatic barrier opens on a signal from an access control device, such as a key fob, token, proximity card or an intercom answered by reception or security. The control panel raises the arm and lowers it once the vehicle has cleared the lane. On-screen diagnostics on the controller help with setting up and fault finding.
Can a manual barrier be locked in the raised position?
Yes. Manual raise arm barriers lock in both the raised and lowered positions with a padlock, so an entrance can be held open for a busy period or secured shut overnight. Swing arm gates lock open or closed with an optional latch post, and rectangular gates take chains, locks or padlock latches.
What finishes and colours are car park barriers available in?
Arm barriers have zinc plated and polyester powder coated steel bodies, with arms in red and white or yellow and black. Swing arm gates are powder coated, rectangular gates are galvanised, and the automatic gates are galvanised or zinc plated steel.
Do I need a height restriction barrier as well?
An entrance barrier controls who enters, while a height restriction barrier controls the size of vehicle that can reach the entrance at all. It is needed under canopies and anywhere vans, caravans or HGVs are not wanted. HERMEQ lists height restriction barriers in their own category within the traffic management range.
What affects the price of a car park barrier?
Operation makes the biggest difference, because a manual barrier has no motor, controller or power supply to buy and install. Price then rises with span, and a full height gate costs more than an arm across the same opening. Automatic gates add the control panel, safety devices and groundwork for power and cabling, and a double leaf gate costs more than a single leaf.
