TVCB On-Ground Mesh Heavy Duty Vehicle Gate (OG3)

Name: TVCB On-Ground Mesh Heavy Duty Vehicle Gate (OG3)
SKU: HG257401
Price: 2760 GBP

Skip to the end of the images gallery

This image is for illustration purposes only

Skip to the beginning of the images gallery

Product Highlights

TVCB compatible – Designed to fix directly to Temporary Vertical Concrete Barriers (TVCBs).
Heavy-duty mesh frame – Provides visibility, strength, and wind resistance.
Powder coated finish – Custom colour options for enhanced protection and visual integration.

Alternative Products

SKU HG257401

This mesh vehicle gate is designed for integration with TVCBs, providing secure, on-ground vehicle access to restricted areas. The OG3 system includes high-strength mesh, heavy-duty fixings, and optional powder coating. Supplied with anchor plates and bolt kits, this vehicle access gate delivers durable, compliant control for sites using concrete barriers.

As low as £2,300.00 £2,760.00

In stock

Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery Final shipping costs and times are calculated at checkout. Shipping address may affect available delivery methods & times.

Width

Colour

Details

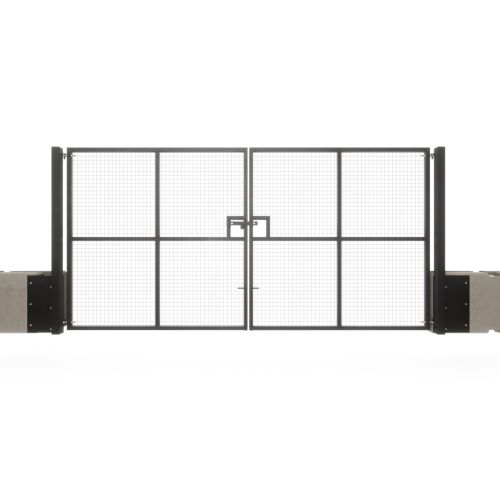

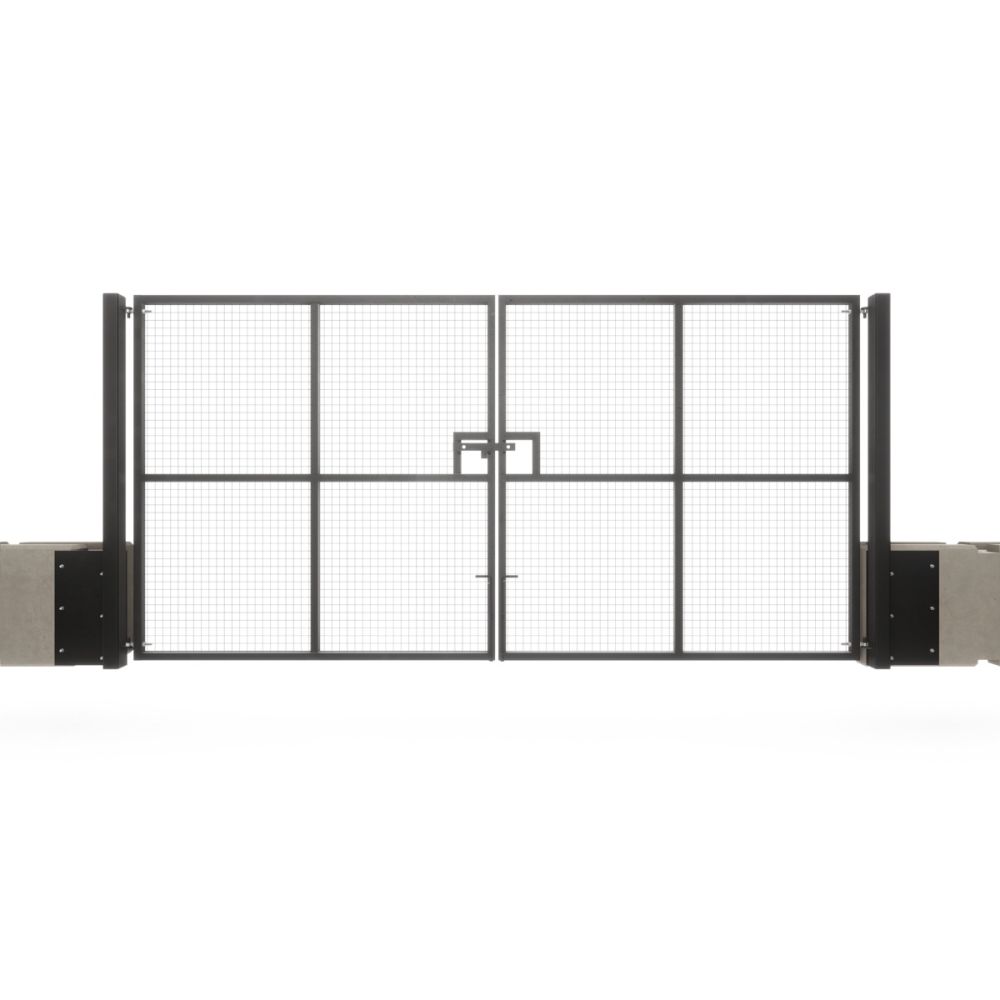

The OG3 Mesh Vehicle Gate is a robust access gate system designed specifically for use with Temporary Vertical Concrete Barriers (TVCBs). Offering 2400mm height and up to 6m width, it delivers exceptional perimeter security and reliable vehicle access. The open mesh structure enhances visibility and airflow, while providing the rigidity required for high-risk environments.

It is built from heavy-gauge steel and finished in a durable powder coating for long-term performance. Available in a choice of colours, it meets both safety and aesthetic requirements across sectors including infrastructure, highways, and defence. The gate is supplied with anchor bolts, fixing plates, and installation hardware, and integrates seamlessly with HERMEQ’s TVCBs (ordered separately).

Sizes available: 4m, 5m or 6m width
Height: 2400mm
Finish: Powder coated (custom colours available)
Fixing: TVCB-compatible base plates with anchor bolts
Cladding: High-security steel mesh

As our TVCB barriers are cast from a well-respected high-strength concrete, and combined with National Highways specification steel reinforcing, they meet the component requirements of EN 1317, 'Compliant Road Restraint Systems for Temporary Safety Barriers'.

Please note: These barriers are only crash tested if connected with bolts and installed by an approved technician.

The OG3 is engineered for projects where high-strength perimeter control is non-negotiable. From major infrastructure builds to roadside installations, the gate provides dependable access control at scale. The TVCB fixings make it uniquely suited to sites using temporary concrete barriers for vehicle mitigation and zone demarcation.

The mesh cladding allows easy line-of-sight for operatives and security personnel while maintaining a strong physical barrier. Its on-ground installation reduces site disruption and offers flexibility in deployment. The extended anchor plates (750mm x 470mm) and supplied M16 bolts ensure stability even under repeated use or in high-wind environments.

Applications include:

Highways and traffic management compounds
Major construction access points
Railside and transport security zones
Events or high-traffic site entry control
Critical infrastructure protection

Powder coating enhances durability and helps align visual identity with other fencing elements or site requirements. HERMEQ also offers full installation support for this product, with nationwide availability for projects requiring integrated fencing and gate systems with professional deployment.

HERMEQ stock a full range of Temporary Mesh Fencing, Steel Hoarding, and Traffic Control Barriers to complement this gate system.

Need any help? Contact HERMEQ Today.

Contact our team via phone 0800 043 2520, email sales@hermeq.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.

Additional Details

The OG3 TVCB-Compatible Vehicle Gate provides a fully engineered access control solution for challenging construction, transport, and infrastructure sites. Designed for permanent-grade performance with temporary flexibility, it’s one of the most robust on-ground access gates on the UK market.

Height: 2400mm (prevents climbing and overreach)
Widths: 4m, 5m, 6m (to suit various vehicle access requirements)
Fixing System: Pre-drilled 750mm x 470mm steel base plates, 10mm thick
Bolts Included: 12x M16 anchor bolts
Required TVCB Units: 2x CB151985 - ordered separately

Construction & Finish
All OG3 gates are constructed from heavy-gauge steel and protected with a powder-coated finish. This not only improves weather and UV resistance but also helps reduce corrosion and wear from site operations. Colour customisation is available on request.

On-Ground Installation
Unlike in-ground alternatives, this gate system is mounted directly onto TVCB barriers. That means zero digging, zero setting time, and full reusability across projects. Perfect for phased builds or sites where access locations may evolve.

Security & Compliance
The OG3 vehicle gate is suitable for use in high-risk zones due to its secure mesh frame and tamper-resistant fixings. With integrated TVCB compatibility, it supports compliance with traffic and pedestrian safety regulations on infrastructure jobs.

Delivery & Installation
HERMEQ offers UK-wide delivery and optional installation by trained site teams. Whether you need a single gate or a network of barrier-linked access points, our support ensures compliance, continuity, and professional execution.

FAQs

Does this vehicle gate come with TVCBs included?
No. You must order 2x TVCB barriers (CB151985) separately to anchor this gate securely.

What sizes are available?
This model is available in widths of 4m, 5m, and 6m, all standing at 2400mm tall.

What finish does the gate have?
It comes powder coated for weather resistance. You can request specific RAL colours if needed.

Can this gate be reused?
Yes. The on-ground mounting system allows you to detach and relocate the gate across projects.

Is installation difficult?
No. It’s designed for fast installation using the included fixing plates and anchor bolts. No groundworks required.
