Cranked Wheel Guide

Name: Cranked Wheel Guide
SKU: SF518732
Price: 896.81 GBP

Skip to the end of the images gallery

This image is for illustration purposes only

Skip to the beginning of the images gallery

Product Highlights

15° Cranked Profile - Steers reversing vehicles accurately into position.
Galvanised Finish - Long-lasting protection in demanding HGV yard conditions.
1.8m Length - Wide format suits large trailers and articulated trucks.

Alternative Products

SKU SF518732

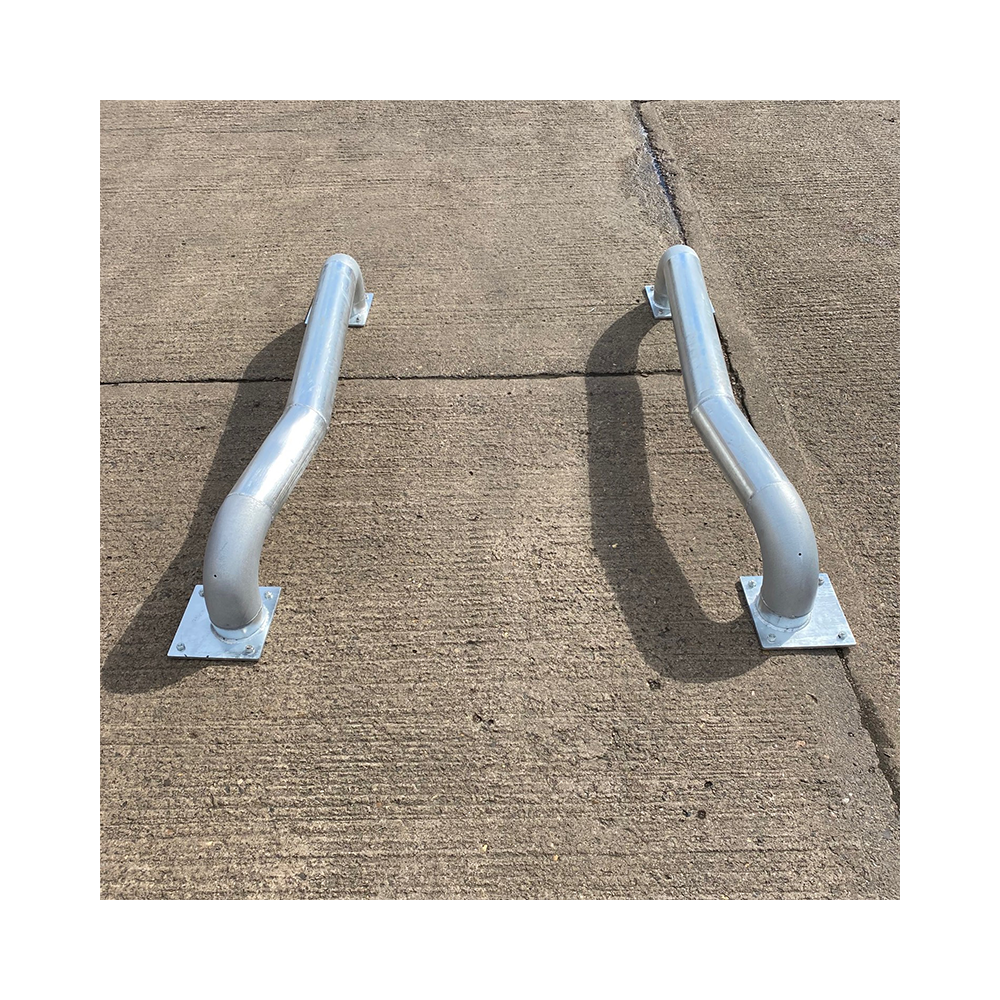

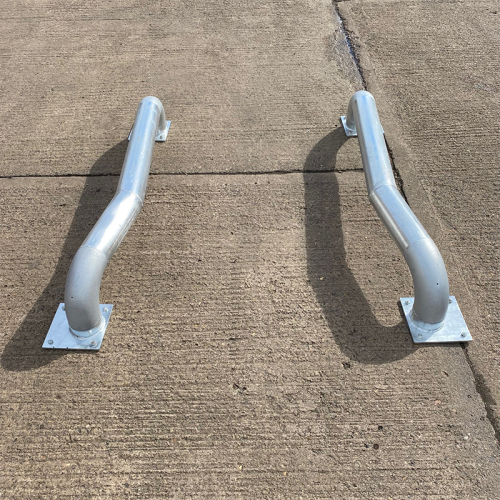

Cranked HGV Wheel Guides made from galvanised steel to guide reversing vehicles in warehouse loading bays. Sold in pairs – left and right crank. Available in 139mm and 168mm diameters.

As low as £747.34 £896.81

In stock

Quickest Available Delivery: Quickest Available Delivery: 2 to 3 Week Delivery Final shipping costs and times are calculated at checkout. Shipping address may affect available delivery methods & times.

Colour

Size

Details

Designed for operational safety and precise bay alignment, HERMEQ’s cranked wheel guides provide directional assistance for reversing HGVs in tight warehouse spaces. Each pair includes a left and right 15° crank, ensuring vehicles are guided smoothly into docking positions. The angled profile enhances control during final approach, minimising the risk of structural impact or tyre scuffing on fixed assets.

Manufactured from heavy-duty galvanised steel, these wheel guide units deliver corrosion resistance and durability in all-season use. The bolt-down system enables secure installation to concrete, ensuring permanent bay layout stability. Their 1.8m length accommodates wide vehicles and trailer formats, supporting consistent manoeuvring across large fleet operations.

Cranked Shape for Bay Entry – 15° angle facilitates accurate alignment when reversing vehicles.
High-Strength Galvanised Steel – Built for long-term use in industrial, logistics and depot environments.
Simple Fixing Method – Each guide includes square baseplates and is secured with 8 x 18mm bolts.
Damage Prevention – Reduces risk of vehicle collision with racking or walls during loading.
Sold in Matched Pairs – Supplied as left-hand and right-hand cranks for complete bay coverage.

HERMEQ’s wheel guides are suitable for busy HGV sites where driver precision and asset protection are critical. Their cranked form redirects vehicle motion toward the centreline of the bay, ensuring repeatable entry angles regardless of driver or vehicle type. With larger diameter options—139mm and 168mm—fleet managers can choose the format that best suits their loading profiles. The compact 320mm height offers protection without obstructing under-run bars or sensors.

Install them in conjunction with wheel stops or visual indicators to enhance operational efficiency. Combined with HERMEQ’s Street Furniture range or Bike Racks, they support safe, structured logistics environments. Designed with UK warehousing in mind, these wheel guide pairs keep site operations flowing.

Need any help? Contact HERMEQ Today.

Contact our team via phone 0800 043 2520, email sales@hermeq.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.

Additional Details

Use Cases for Cranked Wheel Guides:

Warehouse loading bay approach
Fleet distribution depot alignment
Logistics centres with narrow docking corridors
Heavy goods vehicle processing stations

HERMEQ’s cranked wheel guide pairs improve visibility and directionality for drivers backing into constrained access areas. The curved profile allows better centreline control, especially on sites where straight guides may offer limited visual reference.

Each guide includes a square mounting plate and is fabricated from industrial-grade galvanised steel. Their fixed positioning ensures consistent bay configuration, supporting operational uniformity across multi-bay layouts. These guides are especially valuable in wet or dark environments where external mirrors may be impaired.

When used alongside Outdoor Seating or Litter Bins, they contribute to well-zoned facilities with clear vehicle/pedestrian boundaries. Their impact-resistant design reduces repair costs linked to site infrastructure damage from reversing errors.

Specifications

FAQs

Are cranked wheel guides better than straight?
Yes. Cranked versions help steer HGVs into bays more precisely by redirecting wheel motion.

What size are the wheel guides?
Each is 1.8m long and available in either 139mm or 168mm diameter.

How are they installed?
Bolt-down via square baseplate using 8 x 18mm bolts per unit on level concrete.

Can these be used outside?
Yes. Galvanised steel construction is suited for all-weather applications.
