Palisade Railway – Rail

Name: Palisade Railway – Rail
SKU: PA344330
Price: 23.1 GBP

Skip to the end of the images gallery

This image is for illustration purposes only

Skip to the beginning of the images gallery

Product Highlights

Rail-compliant steel rail – Certified 45x45mm RSA rails for palisade fencing projects.
Full bay integration – Designed to connect pales and posts with 12 rails per fencing bay.
Custom finish options – Galvanised or powder coated for enhanced weather resistance.

SKU PA344330

Palisade network rail fencing rails used to horizontally connect pales and posts. Each bay requires 12x rails to complete the palisade system. Supplied in 45x45mm RSA sections, galvanised or powder coated. Engineered to meet rail industry specifications for permanent boundary applications and security fencing installations across challenging gradients and terrain.

As low as £19.25 £23.10

In stock

Quickest Available Delivery: Quickest Available Delivery: 2 to 3 Week Delivery Final shipping costs and times are calculated at checkout. Shipping address may affect available delivery methods & times.

Colour

Type

Details

Additional Details

FAQs

Details

HERMEQ’s Palisade Network Rail Spec Rails are the core horizontal component of the certified palisade fencing system used across railway and high-security projects. Designed to link pales and posts securely, each bay installation requires 12x 45×45mm rails, ensuring structural stability and compliance with Network Rail and other permanent boundary specifications.

The rails conform to the NR/L2/TRK/5100/1/WP 2015 rev A standard and are manufactured under HERMEQ’s ISO 9001-certified quality assurance process. Regular audits from BSI and CE bodies confirm the strength and durability of the product line. Each RSA rail section features 10mm front face holes to enable firm fixing between pale and post, using high-grade fasteners for secure fitment.

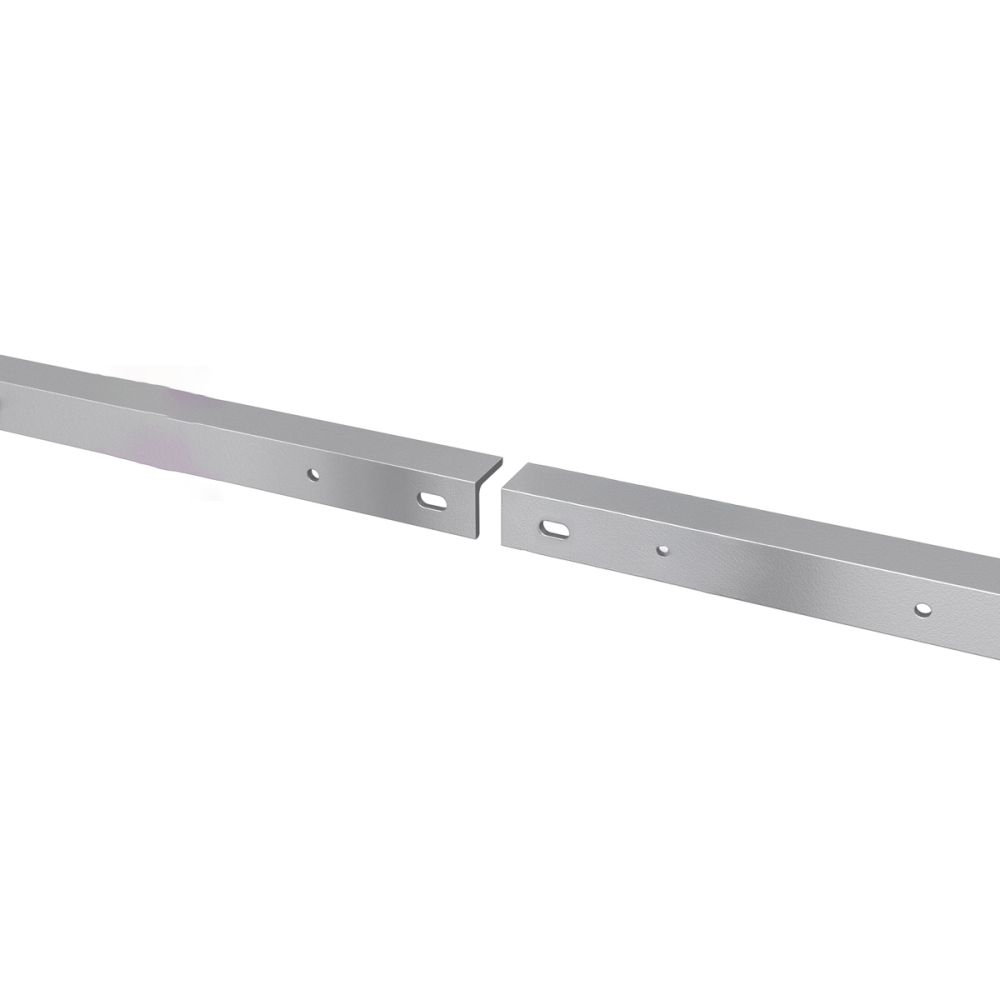

Rail dimensions – 45×45×6mm RSA with precision-drilled holes for simple installation.
Materials – Heavy-duty steel, available galvanised to BS EN ISO 1461 or powder coated.
Usage – Connects pale and post sections in Network Rail-compliant palisade systems.
Adaptability – Follows the gradient of undulating terrain for seamless alignment.
Finish options – Standard in silver, optional green RAL6005 or black RAL9005 coating.

Built for long-term durability and reliability, these rails deliver superior resistance to impact and corrosion. Whether used in a standard railway fencing installation or a custom high-security enclosure, they form a trusted link within the broader palisade system. As part of HERMEQ’s modular offering, these rails allow for rapid installation, ease of site adaptation, and optimal protection where critical boundary control is required.

HERMEQ stock a wide-range of Palisade Ultra, Palisade Standard, Palisade Network Rail Spec, Safe Mesh and various Domestic Railing options to meet every project specification.

Need any help? Contact HERMEQ Today.

Contact our team via phone 0800 043 2520, email sales@hermeq.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.

Additional Details

Designed for use with HERMEQ palisade fencing bays or rail-compatible systems adhering to rail sector compliance norms.
Powder coating options include standard RAL colours for improved visual integration and extended life in exposed conditions.
Rail dimensions (45x45x6mm) match HERMEQ’s Palisade Network Rail Spec bays and can be ordered individually or in full sets per bay.
Secure fitment supported with M8×25mm and M12×30mm shear nuts and fixings, allowing consistent and safe fastening during install.

Installation is straightforward on both flat and sloped terrain thanks to the adaptable design of the rail-to-post fixings. These components play a vital role in maintaining the strength and alignment of the entire palisade system, ensuring regulatory compliance and long-term performance in challenging outdoor settings. With direct compatibility to HERMEQ’s palisade posts and steel pales, buyers benefit from seamless system sourcing, coordinated deliveries, and guaranteed material compatibility.

Rail sections are corrosion-protected via hot-dip galvanising and can be custom powder coated to match site specifications. Their clean finish and modular simplicity make them a reliable solution for large-scale infrastructure installations, industrial boundary protection, and any high-security project requiring robust steel fencing.

FAQs

How many rails do I need per palisade bay?
Each palisade fencing bay requires 12x horizontal rails to connect pales and posts securely.

Are these rails compatible with all HERMEQ palisade fencing?
Yes, these 45×45mm RSA rails are fully compatible with HERMEQ’s Network Rail Spec palisade systems.

What coatings are available?
Rails are available hot-dip galvanised as standard, with optional powder coating in green, black, red or blue.

Can these be used on sloped or uneven terrain?
Yes, they adapt well to gradients, ensuring a stable and continuous fencing line even on difficult surfaces.
