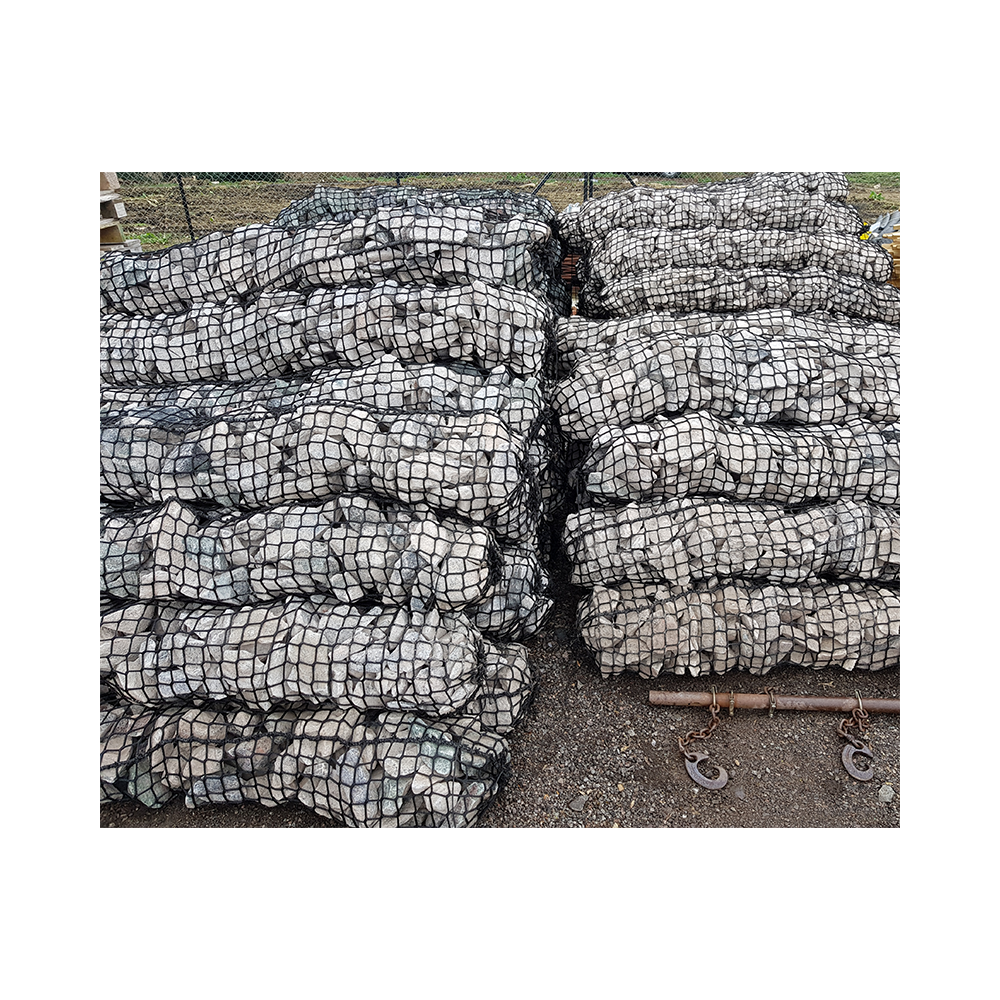

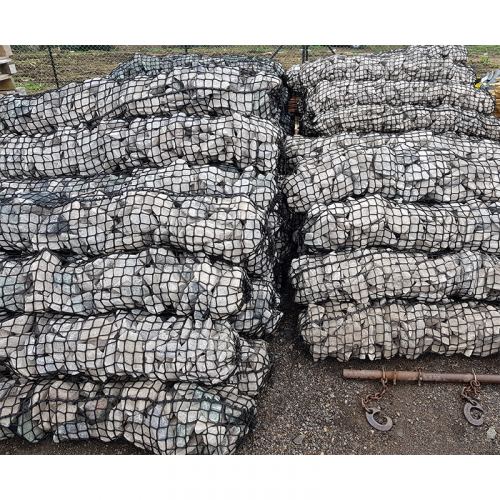

Gabion Rock Rolls
Gabion Rock Rolls are used as permanent gabion to prevent washout and scour in your wetland environment. Rock Rolls can be used to provide a solid foundation for Coir Logs or Coir Pallets and Sods. From here, the roots of growing plants can quickly grow into the voids of the rock rolls to provide long term erosion control and bank support.
Gabion Rock Rolls installed below Coir units can be used to support a filter fabric or biodegradable matting. This type of installation will retain fines in the bank with the roots of the plants from pre-vegetated coir units establishing themselves into the bed of the waterway and through your woven geotextile into the fill.
Applications:
- Watercourse shorelines
- High flow riverbanks
- Streams
Features:
- Provides a solid foundation for Coir Logs to be installed
- Creates a sustainable environment for plant roots to bing
- Long term erosion control and bank support
Product Specifications:
| Diameter | 300mm, 400mm |
| Netting Mesh Size | 45mm |
| Roll Length | 2m |
| Netting Polymer | Polypropylene |
| Netting Tensile Strength | 3.2kN / mesh (CEN/TC/53) |
| Netting Yarn Type | 5mm knotless multifilament |
| Stone Fill | Granite Stone 70-130mm or as specified by engineer |
| Target Weight | 300mm = 240kg/roll, 400mm = 360kg |

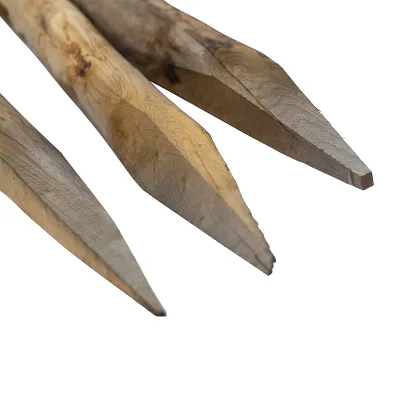

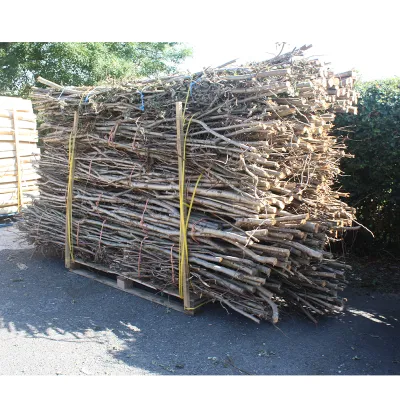

Rock Rolls are used with a range of options in our Water Margin Protection range for erosion control to protect vulnerable water margins and to support the restoration of waterside vegetation. Other options in this range include Chestnut Posts, Brushwood Faggots and Coir Fencing.
HERMEQ stock a wide-range of Geotechnics, Geotextiles, Geomembranes & Root Barriers conforming to all required safety specifications and regulations.
