Geotextile Reinforcement Fabric
Frequently Bought Together

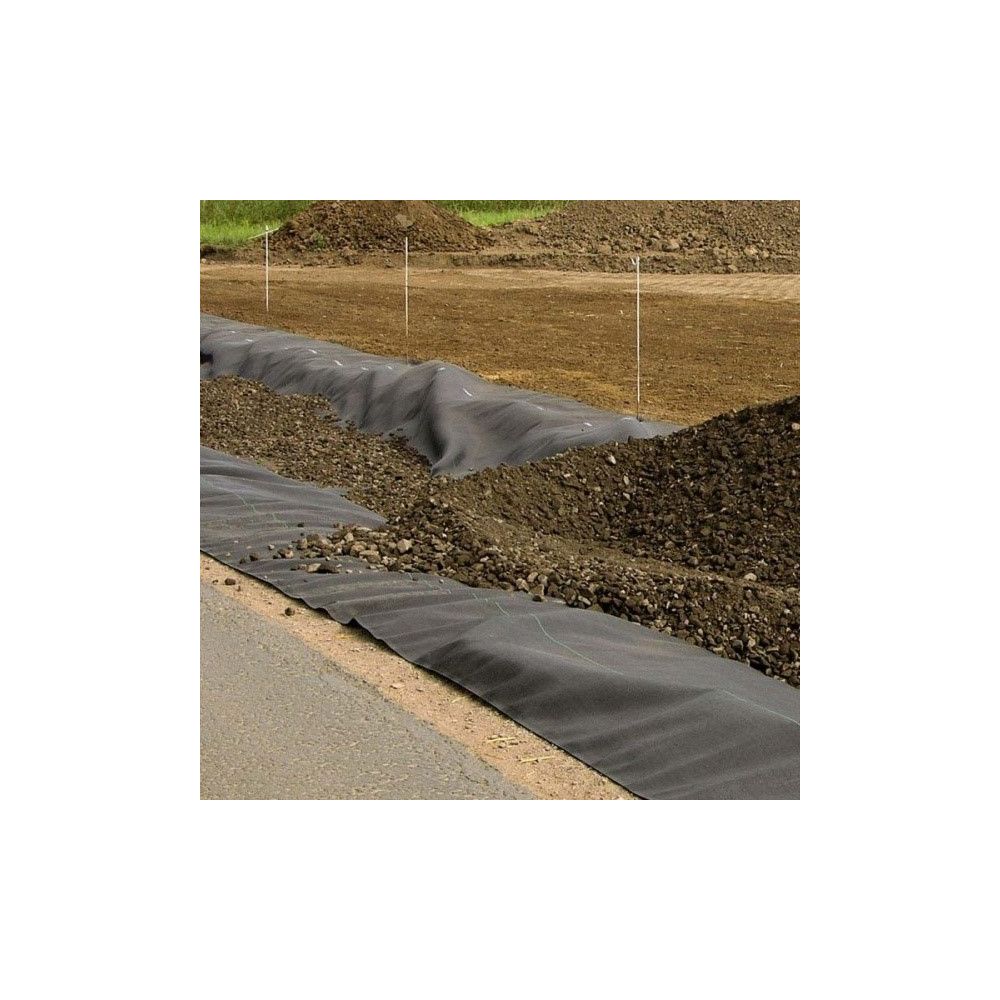

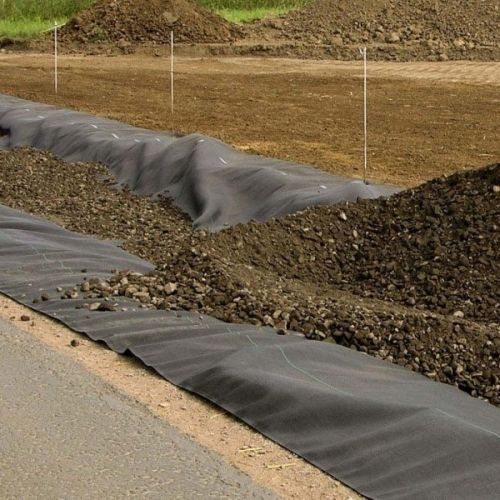

Our Woven Geotextile Reinforcement Fabric has been designed to provide effective reinforcement to weak subgrades, absorbing stresses caused by heavy traffic.
This Geotextile Fabric also helps to control erosion by creating a barrier between the water, soil and rock particles to mitigate the corrosive effect of water on coastlines and riverbanks. This should prevent soil and rock particles from being dislodged and transported back into the sea or river.
All Geotextile Rolls are supplied at 5m wide x 100m long.
Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery
Our Lotrak range of geotextile fabrics is a cost-effective and eco-friendly solution for construction and civil engineering applications.
Features:
- High strength and low elongation provides effective ground reinforcement

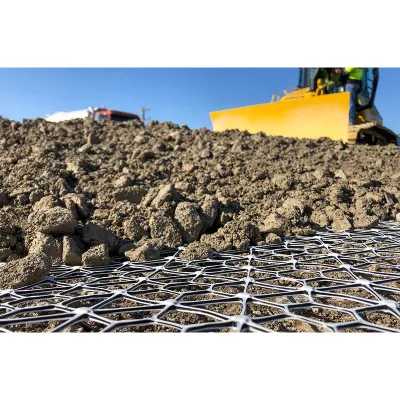

- Aperture design of geogrid enables aggregate materials to interlock and encourages load dispersal
- Erosion control geotextiles help control erosion by creating high-performance barrier
- High tensile strength and CBR properties are best suited as reinforcement for soft ground
- Manufactured under ISO quality management and construction products regulation
Benefits:
- Superior reinforcement
- High tensile strength
- Superior separation
- Excellent soil and aggregate confinement
- Excellent lightweight reinforcement
Specifications:
| 25R | 50R | 70R | |
|---|---|---|---|
| Tensile Strength (kN/m) MD,CD | 26,26 | 52,52 | 74,72 |
| Tensile Strength at 5% strain (%) MD,CD | 16,16 | 25,45 | 55,55 |
| Elongation at Max Load (%) MD,CD | 9,9 | 11,8 | 9,7 |
| CBR Puncture Resistance (N) | 3200 | 6000 | 9200 |
| Cone Drop Penetration (mm) | 12 | 8 | 6 |
| Pore size 90% finer than (microns) | 270 | 210 | 240 |
| Water Permeability (VIH500) | 0.010 | 0.014 | 0.018 |
| Water Flow Rate (l/m2/sec) | 10 | 14 | 18 |
| Roll Size (Wm x Lm) | 5 x 100 | 5 x 100 | 5 x 100 |
HERMEQ stock a wide range of Geotechnics, Geotextiles, Geomembranes & Root Barriers conforming to all required safety specifications and regulations.
