HERMEQ NorwayGround Reinforcement X Grid
Product Highlights
- Fast install system - Lay 100m² per hour per person with easy interlocking grid panels.
- Eco-conscious build - Manufactured from 100% recycled polypropylene with up to 25 years lifespan.
- High ground stability - Prevents rutting, erosion, and potholes across access routes and green areas.
Alternative Products
SKU GM215534
Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery

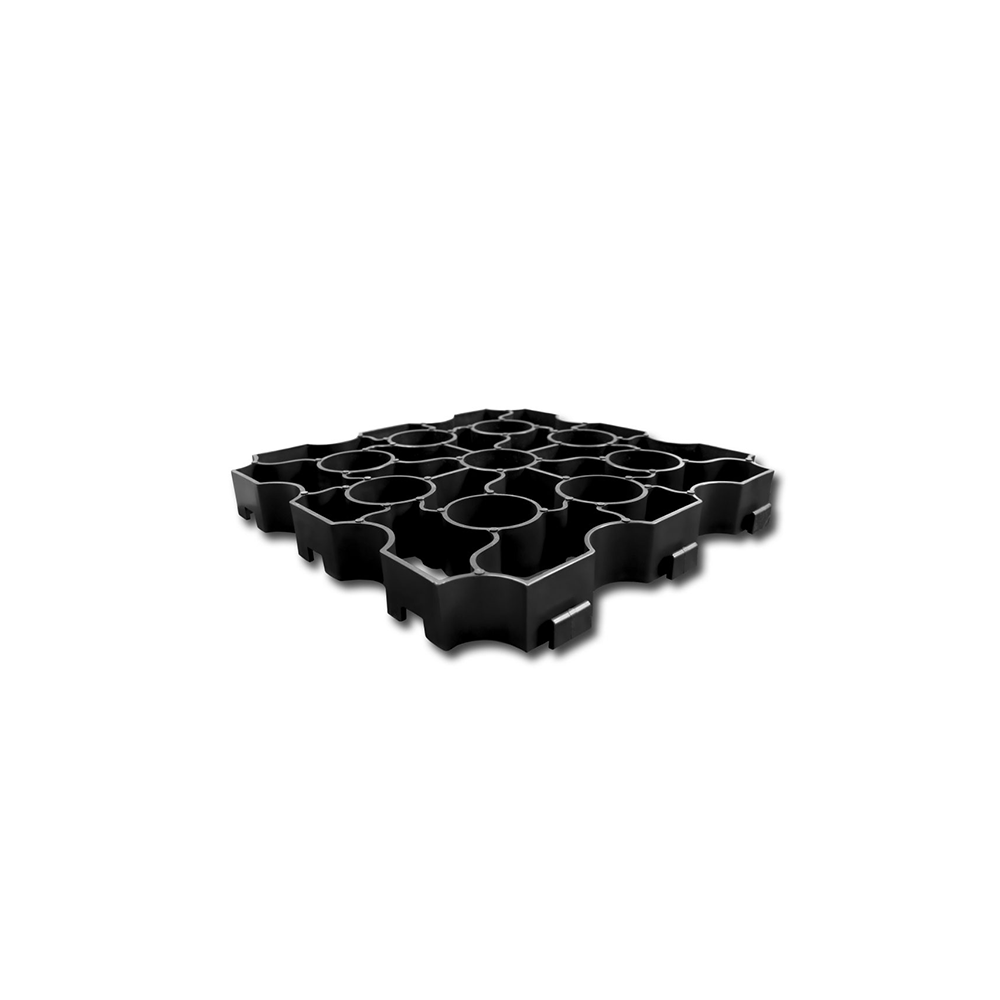

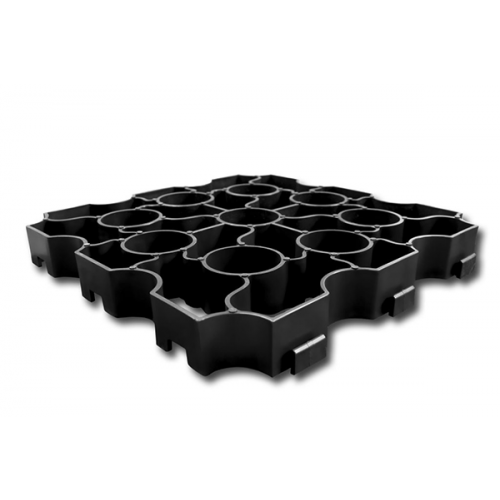

Ground Reinforcement X-Grids are engineered for sustainable access control and ground stability across construction, landscaping, and infrastructure projects. These durable protection mats are made from 100% recycled plastic and connect seamlessly to form solid and stable walking or driving surfaces.
Each grid is designed with high structural integrity, allowing fast coverage of up to 100m² per hour per person. They’re ideal for long-term or semi-permanent applications such as site access roads, car parks, golf courses, and pedestrian walkways. Their interlocking system offers tool-free assembly, while the grid layout reduces surface erosion and supports grass regrowth.
- Fast install system - Lay 100m² per hour per person with easy interlocking grid panels.
- Eco-conscious build - Manufactured from 100% recycled polypropylene with up to 25 years lifespan.
- High ground stability - Prevents rutting, erosion, and potholes across access routes and green areas.
- Versatile colour range - Available in black, green, and natural to match site aesthetics.
- Pedestrian & light vehicle rated - Suitable for car parks, pathways and garden projects.
These ground protection mats are widely used by local councils, contractors, and facility managers to create clean, safe routes on soft or unstable ground. With 93% void space, they support natural drainage and minimise water pooling. X-Grids operate in temperatures from -50°C to over 90°C, making them reliable across year-round projects.
For businesses looking to minimise maintenance while protecting the ground underneath, this is a long-lasting, budget-friendly solution. Their modular format simplifies handling and transport, reducing on-site setup costs and enhancing project speed. Whether for public events, highways, or parklands, they offer strong ROI through resilience and ease of reuse.
HERMEQ stock a wide range of Ground Mats, Bog Mats, Trench Covers & Road Plates conforming to all required safety specifications and regulations.
Need any help? Contact HERMEQ Today.
Contact our team via phone 0800 043 2520, email sales@hermeq.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
Ground protection mats like X-Grids play a vital role in both temporary and permanent surfacing projects. Their reinforced design spreads applied loads, improving safety and reducing damage to grass or gravel substrates.
Each grid panel is lightweight (574g) but structurally effective, allowing flexible configuration for slopes, uneven surfaces, or perimeter edging. The built-in peg and slot connectors snap together easily, requiring no extra tools or joiners.
- Panel Size: 330mm x 330mm x 40mm
- Material: Recycled Polypropylene
- Panel Weight: 574g
- Colour Options: Black, Green, Natural
- Void Ratio: 93%
- Max Gradient: 12%
- Max Speed: 15mph (light vehicles)
- Wall Thickness: 3mm
- Temperature Range: -50°C to 90+°C
- Lifespan: Up to 25 years
They’re commonly used in rural settings, driveways, and heavy-footfall zones to retain surface integrity. Unlike metal or concrete alternatives, plastic mats won’t corrode and offer greater handling ease for ongoing site flexibility.
What is the main benefit of ground protection mats like X-Grids?
They stabilise surfaces, prevent erosion, and allow light vehicle and pedestrian access on soft ground while protecting the underlying terrain.
How fast can X-Grids be installed?
Each person can install up to 100m² per hour without specialised tools, thanks to the interlocking peg and slot design.
Can they be used on slopes or loose soil?
Yes. They are rated for gradients up to 12% and conform to uneven surfaces without losing integrity.
Are these rubber mats suitable for eco-sensitive zones?
Absolutely. Made from recycled plastic, they’re sustainable and allow natural drainage and grass growth.
