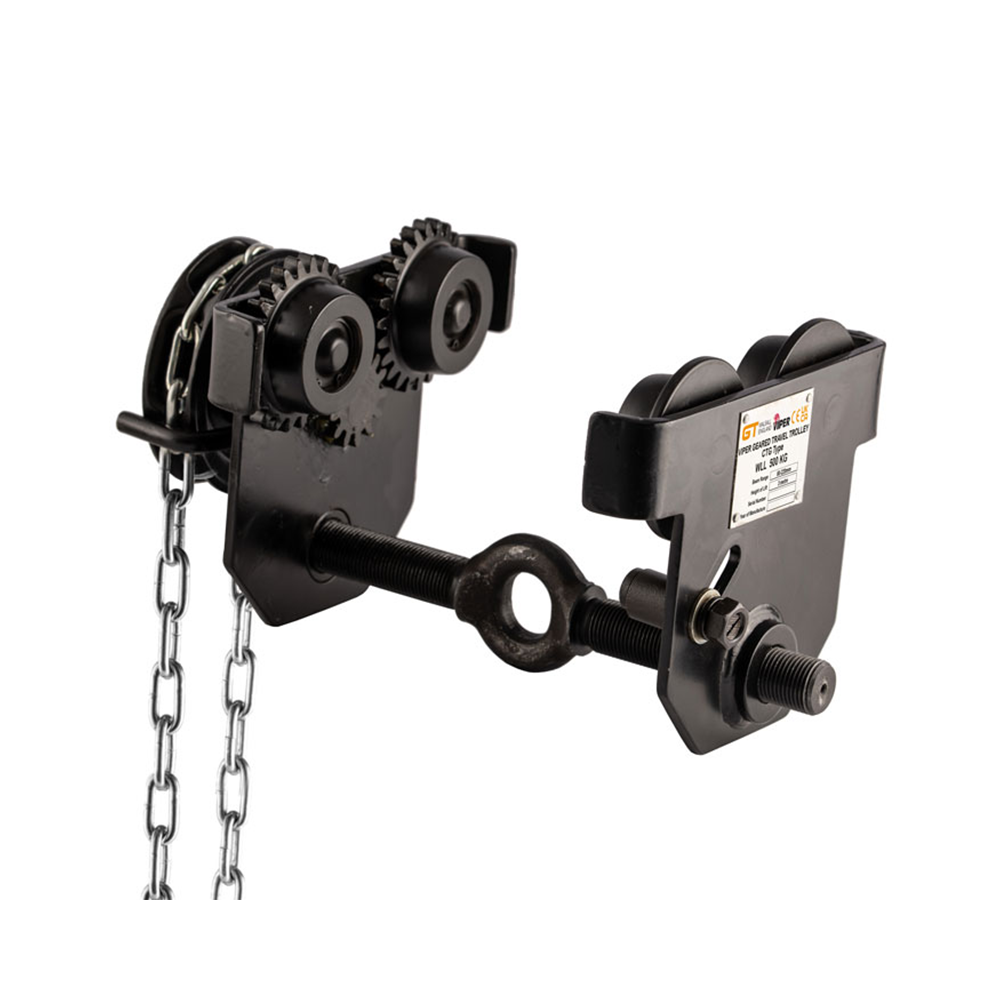

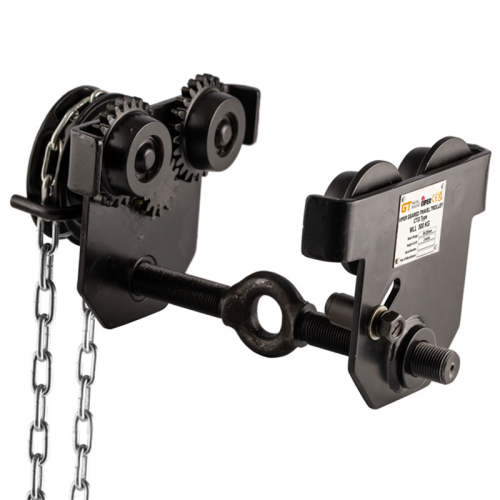

Geared Travel Beam Trolley
Frequently Bought Together
Geared Travel Beam Trolley used in material handling systems to move loads horizontally or along a beam or track. Typically consists of a trolley with wheels or rollers that can travel along the beam and equipped with gearing mechanism for controlled movement.
We supply sizes which can withstand loads up to 5 tonnes.
Compliant to W.L.L. performance requirements of BS EN 13157.
Quickest Available Delivery: Quickest Available Delivery: 2 Day Delivery
Features:
-
Gearing Mechanism: The geared mechanism allows for precise control over the trolley's movement along the beam. It enables the operator to easily manoeuvre and position loads with accuracy.
-
Capacity: Geared travel beam trolleys come in various load capacities to accommodate different weights of materials or equipment. It's essential to choose a trolley that meets or exceeds the weight of the load you intend to move.
-
Attachment Points: Geared travel beam trolleys typically have attachment points or hooks for securing loads. The design may include features to accommodate various types of lifting equipment, such as hoists or hooks.
-
Adjustability: Adjustable features to fit different beam widths. This adaptability makes them suitable for use with a variety of beam sizes within a given range.
-
Application: Geared travel beam trolleys find applications in various industries, including manufacturing, construction, warehouses, and other settings where the horizontal movement of heavy loads is required.
Specifications:
- Drop forged screw type adjuster enables safe and speedy adjustment.
- Matt black finish.
- Minimum breaking load is 4 times the Working Load Limit.
- Lightweight robust construction.
- High-grade steel sealed ball bearings for precise and smooth rolling.
- For use with hand and electric hoists.
- All trolleys are designed for use with same capacity Chain Blocks & Lever Hoists.
- Side plates are produced with trolley wheel guards for additional safety.
- Marked in accordance with BS EN 13157.
