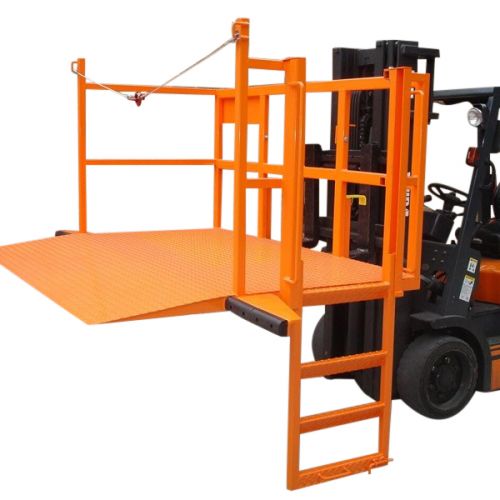

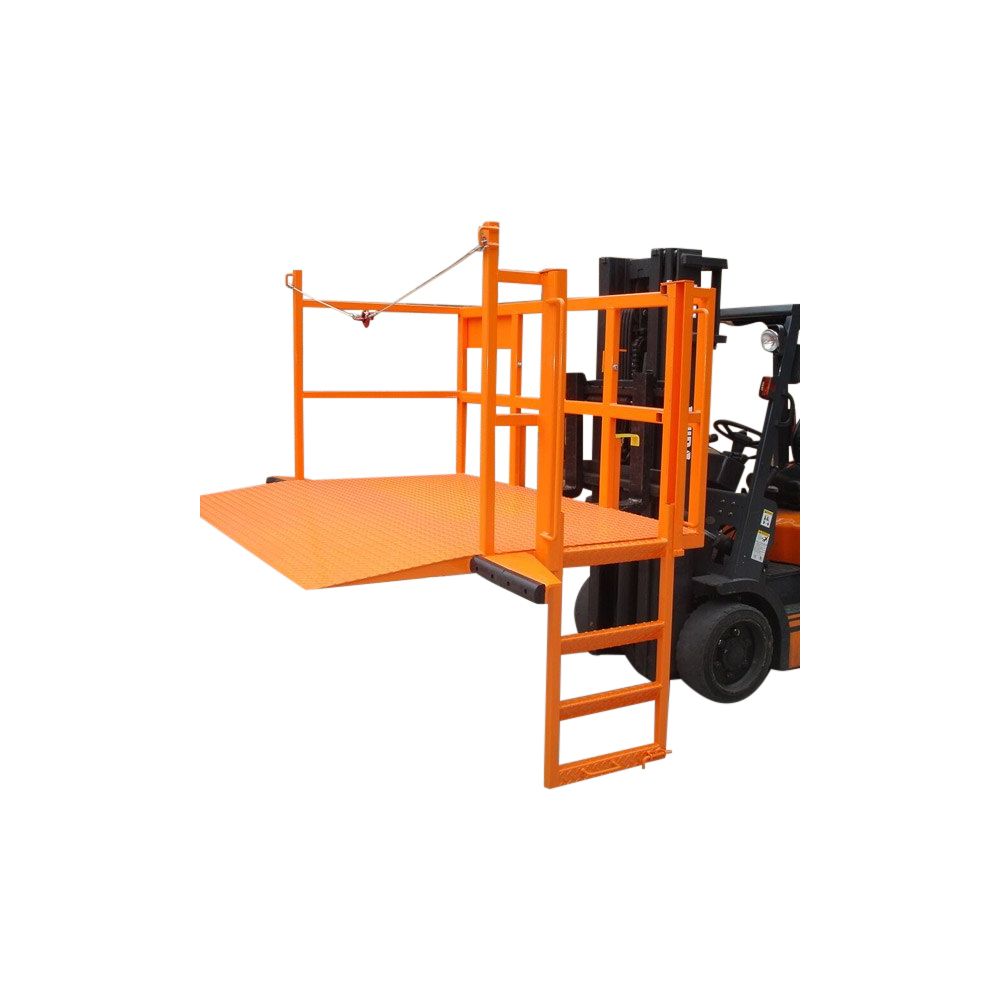

Roll Cage & Pallet Lifter

Load-lifters are specifically designed for the safe loading and unloading of roll cages onto and from articulated vehicles.
£2,481.25 £2,977.50

Quickest Available Delivery: Up To 5 Working Days Final shipping costs and times are calculated at checkout. Shipping address may affect available delivery methods & times.

In stock

Standard Features

  • Lowerable ladder for safe access for personnel
  • Rubber buffered wings to limit entry into rear of vehicle
  • Retention rope to minimize cage movement
  • Maximum fork section 100 x 45 mm at 1000 mm centres
  • Painted bright orange for safety


  • The product must be positioned on level ground.
  • Position the forks to the correct distance apart to locate into fork pockets.
  • Drive forks fully into fork pockets.
  • Unlatch the safety chains and re-couple to keep bracket.
  • Load the load lifter with 2 or 3 cages (dependent upon type of cage).
  • Re-attach the safety chains.
  • Lift the load lifter so that the two retaining brackets (Yellow in colour) fully engage with the forklift carriage.
  • Apply required back tilt of the forklift mast.
  • Proceed to the open lorry approaching square on and not angular.
  • Lift the Load lifter above the lorry bed height and proceed forward into the lorry so that the side handrails are within the sides of the lorry.
  • Realign forklift mast to the vertical position and lower onto the lorry bed ensuring that the retaining brackets are still engaged to the forklift carriage.
  • Unlatch the safety chains and re-couple to keep bracket and remove the cages
  • Once empty lift the Load lifter and reverse away for the next operation.

HERMEQ stock a wide range of Handling & Lifting, Vehicle & Container Access, Trench Covers & Road Plates conforming to all required safety specifications and regulations.
