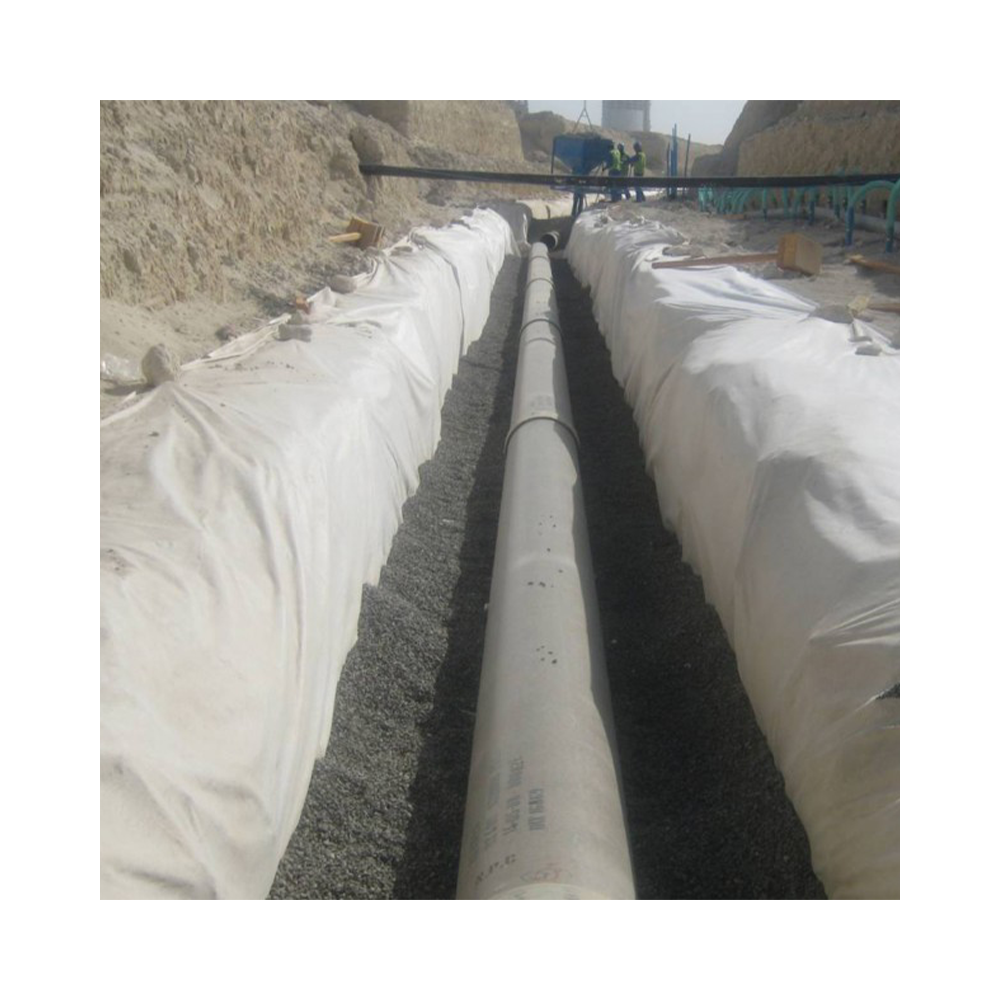

Non Woven Geotextile Drainage Fabric
Frequently Bought Together
This Geotextile solution has been designed to provide excellent separation, filtration and drainage properties for your construction or civil engineering project.
Separation Geotextiles are used between the subgrade and sub base to prevent the intermixing of expensive stone and other aggregates within the soil whilst providing solid ground stabilisation. Separators will also prevent the loss of construction gravel and aggregates into the underlying soil.
Filtration Geotextiles provide rapid filtration allowing water to pass into a filter drain without the carriage of fine soil particles. With the Geotexile's opening size small enough to control soil particle movement but large enough to avoid clogging – water flow is maintained by the creation of a bridging zone to promote natural soil filtration.
Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery
Features:
- Provides effective filtration for range of applications such as drains and trenches
- Prevents loss of construction aggregates into underlying soil
- Provides high tensile strength and CBR properties to offer protection as well as separation and filtration
- Reduces carbon footprint of your project
Benefits:
- Proven separator performance
- Excellent filtration capabilities
- Added strength and resistance
- Increased mechanical strength
- Optimum drainage capabilities
- Effective puncture resistance
- Reduced stone requirements
Specifications:
|
|
80 |
100 |
160 |
200 |
300 |
|---|---|---|---|---|---|
| Tensile Strength (kN/m) Md,CD | 6,6 | 8,8 | 14,14 | 18,18 | 25,25 |
| Elongation at Max Load (%) | 36,42 | 45,45 | 50,50 | 50,50 | 65,65 |
| CBR Puncture Resistance (N) | 1050 | 1500 | 2300 | 2900 | 4300 |
| Cone Drop Penetration (mm) | 48 | 36 | 23 | 18 | 13 |
| Pore Size 90% finer than (microns) | 128 | 100 | 80 | 70 | 70 |
| Water Permeability (VIH50) | 0.144 | 0.130 | 0.090 | 0.080 | 0.065 |
| Water Flow Rate (l/m2/sec) | 144 | 130 | 90 | 80 | 65 |
| Roll Size Wm x Lm | 4.5 x 100 | 4.5 x 100 | 4.5 x 100 | 4.5 x 100 | 4.5 x 50/100 |
