HERMEQ NorwaySafe Mesh Twin Wire (868) - Calculator
Product Highlights
- 868 twin wire mesh system - Two 8mm horizontal wires and one 6mm vertical for strength.
- Clamp bar fixing design - Provides higher tamper resistance than clip-based systems.
- Three height options - Available in 1.8m, 2.0m, and 2.4m for versatile perimeter fencing.
Alternative Products
SKU SM532005

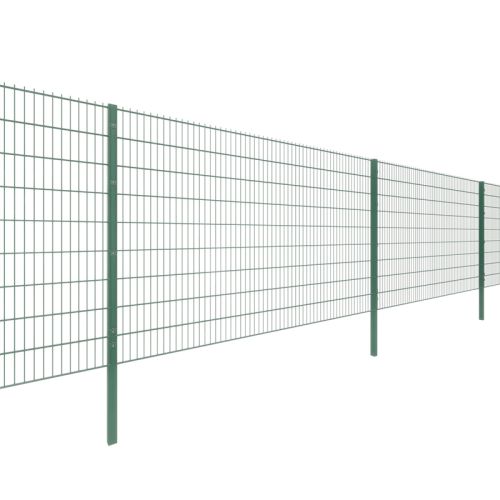

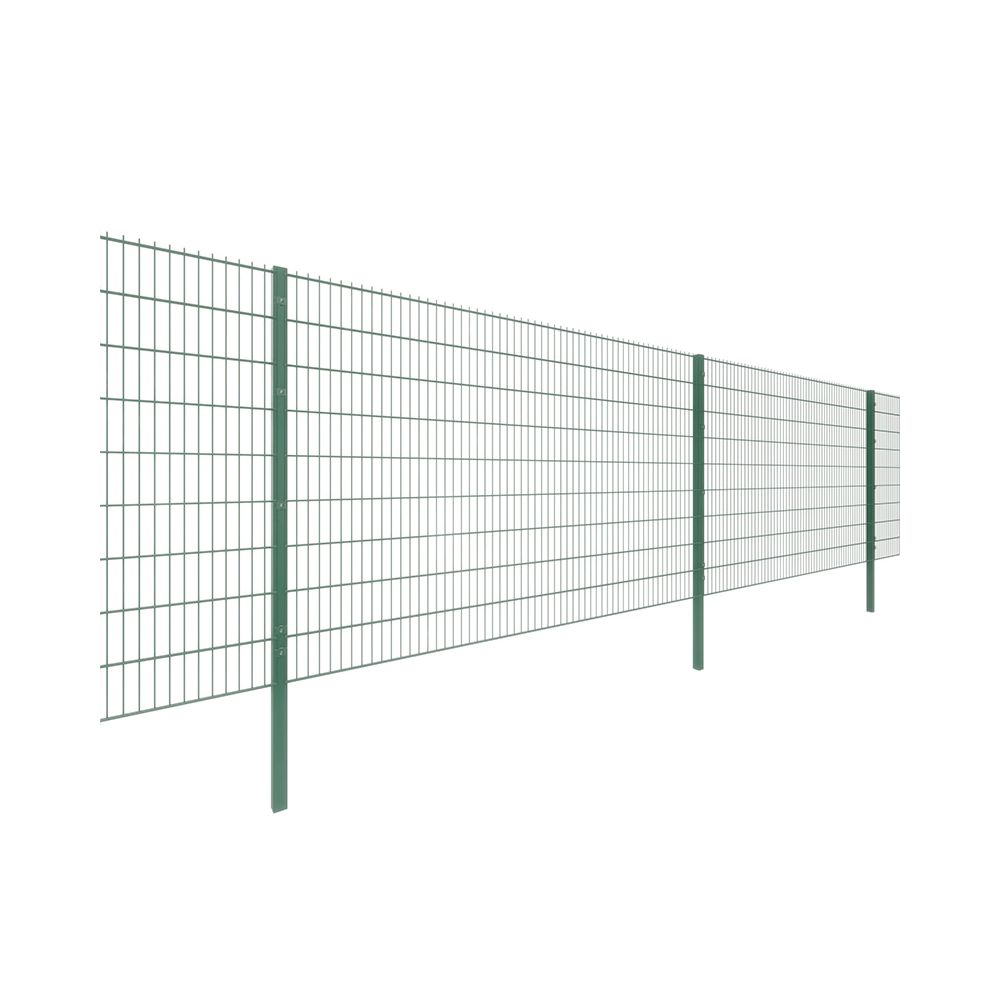

The Twin Mesh 868 Safe Mesh Fencing system is a robust and easy-to-install perimeter solution ideal for commercial, industrial and recreational environments. It features two parallel 8mm horizontal wires and one vertical 6mm wire for strength and climb resistance. This mesh wire fence is available in three height options to suit a variety of perimeter fencing needs.
HERMEQ’s Safe Mesh Twin Wire 868 system is a high-spec mesh wire fence used for reliable and tamper-resistant perimeter fencing. Featuring two horizontal 8mm wires and one 6mm vertical wire, the mesh provides superior rigidity and protection. A full-length clamp bar runs along each panel, secured using stainless steel tamper-proof screws.
With three standard height options available, this fence can be installed across a range of sites including commercial yards, public grounds and industrial units. The post system supports stepped installation for sloped terrain and uses robust materials powder-coated for environmental durability.
- Mesh dimensions: 66.6 x 50mm up to 1200mm, then 200 x 50mm spacing above
- Clamp bar design: Enhanced stability over clip-based systems
- Fixing hardware: M8 x 40 stainless security screws included
- Post sizing: Varies with height — see specification table
- Plastic caps and finish: Supplied per post type and colour
For projects requiring enhanced security and resistance to unauthorised access, the Safe Mesh Twin Wire 868 system delivers high performance and flexibility. Designed for commercial and industrial fencing environments, this twin-wire v mesh format supports climb resistance and impact durability, ideal for areas exposed to higher risk.
The system is supported by a clamp-bar fixing approach rather than basic clips, increasing its strength under tampering or wind loads. Mesh wire panels are galvanised to BS EN 10244-2 and coated to BS EN 13438:2005 standards, offering corrosion resistance even in exposed installations.
Three height options — 1.8m, 2.0m, and 2.4m — give site managers flexibility in defining clear boundary control. Whether for warehouses, transport yards, recreation zones, or municipal facilities, this mesh fencing is engineered for rapid installation and long-term maintenance reduction.

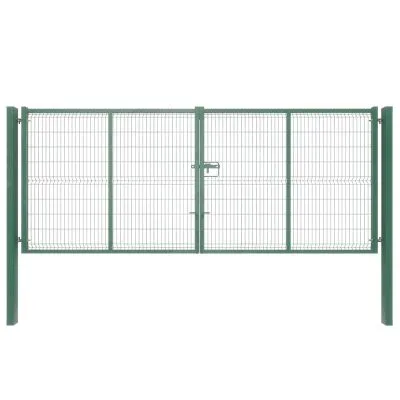

HERMEQ stocks a wide range of V Mesh Perimeter Fencing, Vehicle Access Gates, Permanent Fencing & Temporary Fencing to meet all industry needs.
Need any help? Contact HERMEQ Today.
Contact our team via phone 0800 043 2520, email sales@hermeq.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
Safe Mesh 868 fencing provides a superior balance between visibility, rigidity, and intrusion resistance. The twin-wire layout includes a vertical 6mm bar intersected by two 8mm horizontal wires at every node. This delivers a tightly-spaced, flat-fronted design that resists climbing and bending.
Each panel mounts to steel posts using a full-length clamp bar secured with stainless M8 fixings. The clamp bar prevents panel displacement, unlike clip systems which are more vulnerable to forced removal. This perimeter fencing system is especially suited to high-traffic environments like depots, schools, and utility compounds.
Use cases:
- Commercial and industrial perimeter fencing
- Public access control and event zones
- School and council facility enclosures
- Multi-use games areas and recreation grounds
- Secure compounds and infrastructure yards
All components meet the following standards:
- Mesh: BS 4102 wire / BS EN 10244-2 galvanising
- Posts: BS EN 10210-2 steel / BS EN 10346 galvanised finish
- Powder Coating: BS EN 13438 (100 microns minimum)
- Fixings: Vandal-resistant stainless steel security screws
Custom finishes and sizes can be provided upon request. Please contact HERMEQ for colour range or assistance with fence line layout plans.
What is Twin Wire 868 fencing?
It uses two 8mm horizontal and one 6mm vertical wire to form a strong, flat mesh wire fence designed for high-security perimeter fencing.
Is this mesh fencing resistant to tampering?
Yes, its clamp bar fixing system with stainless screws provides better resistance than clip-based alternatives.
Does it suit sloped ground?
Yes, panels can be stepped to follow contours using the adjustable post and clamp bar configuration.
What sizes are available?
Standard panel heights are 1.8m, 2.0m and 2.4m. Custom sizes available upon request.
