Splay Back Truck
Product Highlights
- Curved splay back design - Traditional build suited for bulk material handling.
- Up to 740mm width - Available in four sizes to match operational needs.
- Durable blue epoxy coating - High visibility and corrosion-resistant finish.
SKU HL800023
Quickest Available Delivery: Quickest Available Delivery: 10 Day Delivery

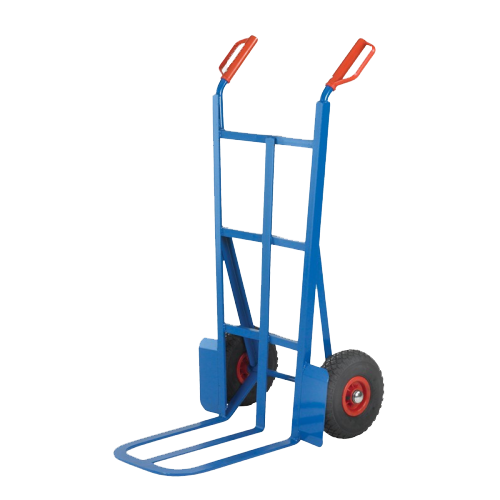

The Splay Back Truck offers a time-tested solution for robust manual handling. With its distinctive curved back and centre support strap, it ensures stability when moving stacked items or irregular loads. Red hand grips add user comfort, and the full welded tubular frame is coated with long-lasting blue epoxy for extended outdoor use.
Available in four arm widths — 520mm, 588mm, 672mm and 740mm — the truck provides options to fit tight corridors or wider packages. Choose between solid rubber wheels for grip or pneumatic tyres for shock absorption on rough terrain. This traditional model has become a modern essential for warehouses, docks and site logistics.
- Classic curved frame – Maintains load stability during upright transport and tipping.
- Four width options – Tailor to workspace size and handling requirements.
- Choice of tyres – Solid for flat ground or pneumatic for outdoor shock resistance.
- Welded steel build – Designed to take repeated use in industrial settings.
- One-piece toe and strap – Provides greater base support and balance during loading.
Whether managing a warehouse pick operation or unloading goods at a busy construction site, the Splay Back Truck offers flexibility and strength. It bridges the gap between traditional sack trucks and more specialised equipment, ideal for teams seeking consistent handling performance on varying surfaces.
Solid-tyred options support predictable movement indoors, while pneumatic wheels give extra cushioning outdoors or over ramps. This truck is highly effective for box stacking, crate moving and general transit tasks between site areas, vehicles and holding areas.
HERMEQ stocks a wide-range of Steps & Access, Ladders & Stairways, Handling Equipment, and Foot Ramps & Trench Covers conforming to all required safety specifications and regulations.
Need any help? Contact HERMEQ Today.
Contact our team via phone 0800 043 2520, email sales@hermeq.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
The Splay Back Truck blends heritage sack truck design with modern construction for today’s tough handling demands. Its steel structure is reinforced with welded angles and finished with red hand grips for comfort and visibility. It’s suited to market deliveries, dock offloads and warehouse relocation jobs.
- Arm Measure Options: Available in 520mm, 588mm, 672mm and 740mm widths to suit parcel dimensions and operator preference.
- Toe Plate: Fixed, single-piece toe plate maximises strength and reduces flex under load.
- Wheels: 200mm solid tyres for flat ground stability or 260mm pneumatic wheels for a smoother push over bumpy surfaces.
- Build Quality: Red hand grips, centre strap support and blue epoxy coating create a dependable, safe-to-operate sack truck.
This unit adapts to shop-floor restocking, outdoor deliveries, tool transport across large sites or workshop reorganisation. It pairs perfectly with the Euro Loop Handle Truck for high-volume load handling and with the 3 in 1 Sack Truck for multi-position handling tasks.
Arm Measure (mm) |
Toe Depth (mm) |
Tyre Diameter (mm) |
Tyre Type |
Weight (kg) |
---|---|---|---|---|
520mm | 305mm | 200mm | Solid | 18 |
588mm | 305mm | 260mm | Pneumatic | 18 |
672mm | 450mm | 200mm | Solid | 20 |
740mm | 450mm | 260mm | Pneumatic | 20 |
What size options are available?
You can choose from 520mm, 588mm, 672mm or 740mm arm widths depending on your load space needs.
What’s the benefit of the curved splay back?
It helps cradle cylindrical or stacked loads securely during tilt and transport.
Can I choose my tyre type?
Yes. Solid rubber for indoor use, pneumatic for outdoor or uneven terrain.
Are the handles comfortable?
Yes, each truck comes fitted with protective red hand grips to reduce strain.
