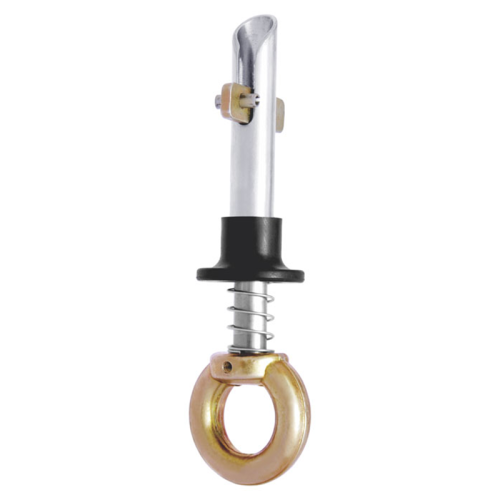

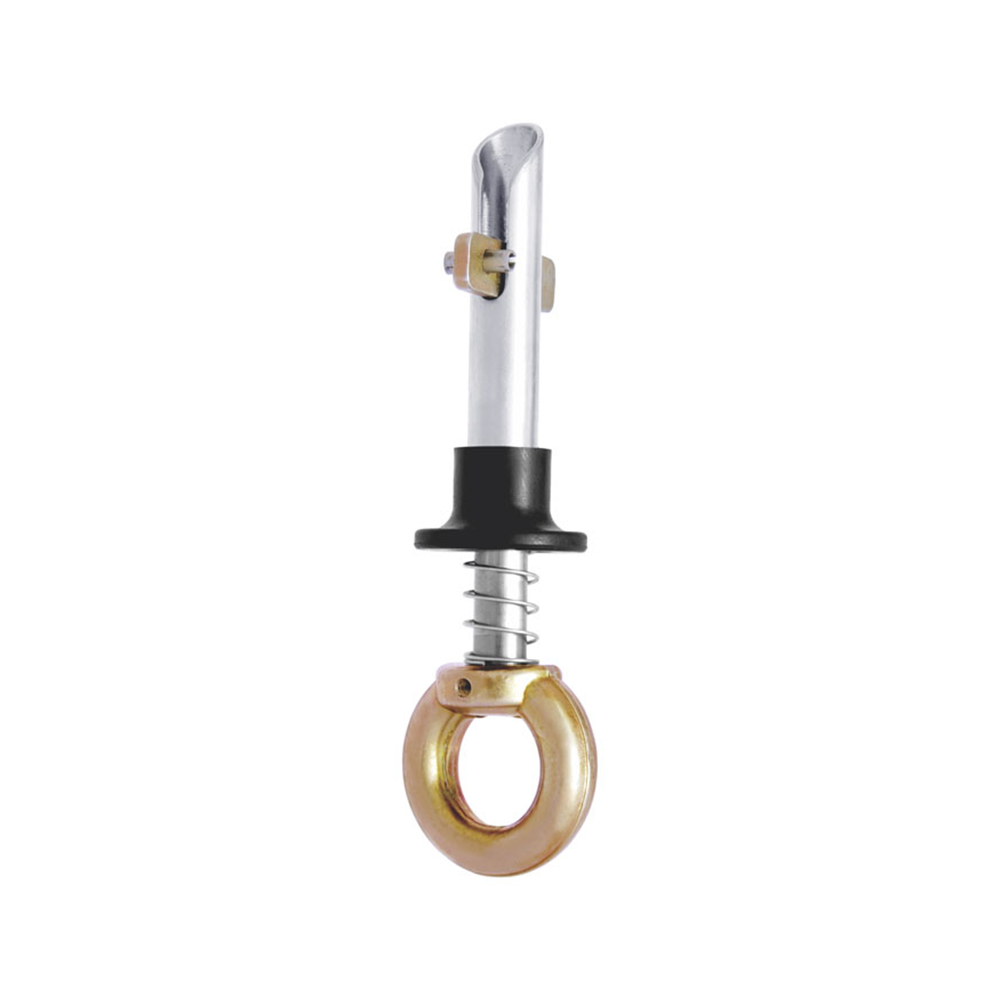

Toggle Anchor - 4cm
Toggle Anchor designed to be quickly installed on horizontal steel surface with a pressure button that selects function "open" or "lock".
Features:
-
Quick Installation: The primary feature of this toggle anchor is its quick installation on a horizontal steel surface. This can be particularly useful in scenarios where efficiency and speed are crucial, such as temporary worksites or situations requiring rapid deployment.
-
Horizontal Steel Surface Compatibility: Ensure that the toggle anchor is specifically designed for use on horizontal steel surfaces. The anchor's design and mechanism should be well-suited to provide reliable and secure attachment on this type of structure.
-
Pressure Button Functionality: The pressure button serves a critical role in allowing users to toggle between the "open" and "lock" functions. Understand the functionality of this button, how it interacts with the anchor, and how it contributes to the ease of installation and use.
-
Toggle Mechanism: The toggle mechanism engages when the anchor is in the "lock" position, should be designed for stability and reliability. It needs to securely fasten the anchor to the steel surface, ensuring that it can support the intended load.
-
Function Selection: The ability to select between "open" and "lock" functions provides versatility. When in the "open" position, the anchor may be easily installed or removed, while the "lock" position ensures a secure and stable connection.
-
Load Capacity: The anchor should have a specified load capacity suitable for fall protection applications. It must be capable of supporting the weight of an individual and any associated fall protection equipment.
Specifications:
- Size: 22mm
- Length: 4cm
- Resistance: 12 kN
- Minimum Breaking Strength: 23 kN
- Conforms to BS EN 795 Type B
