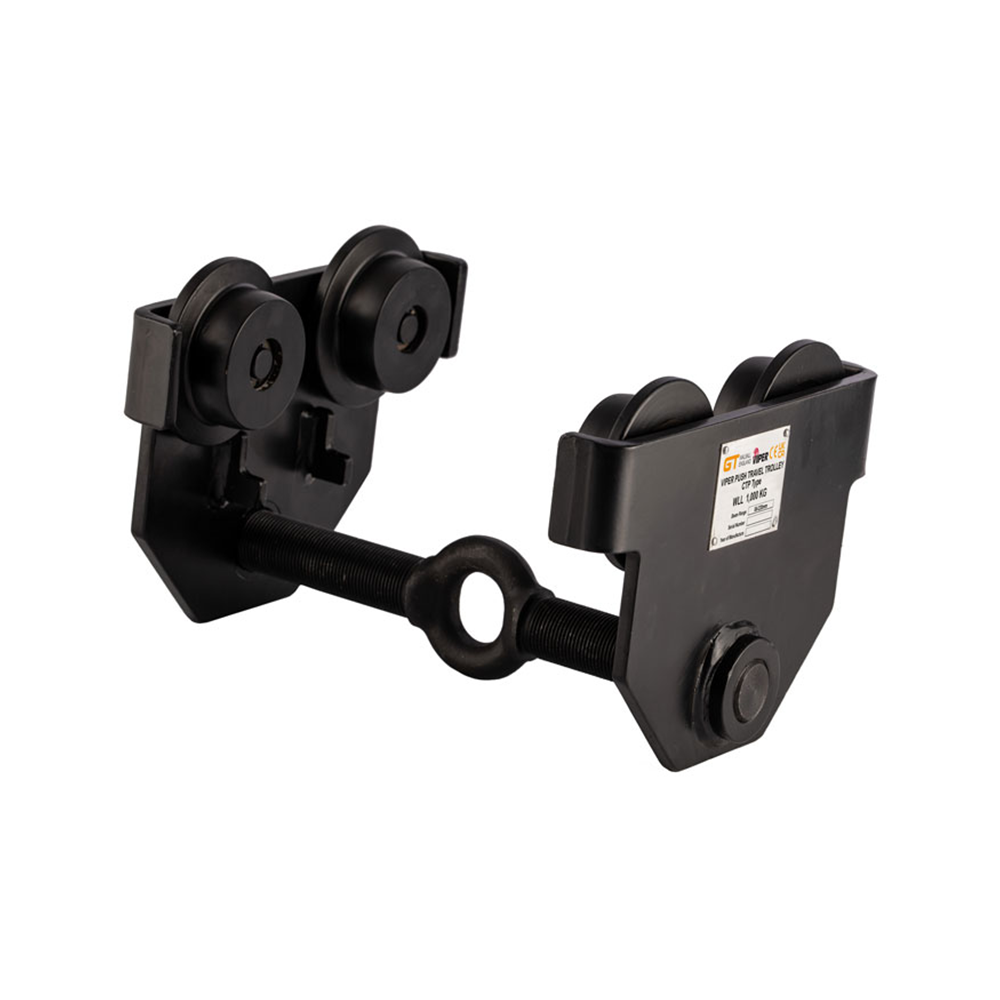

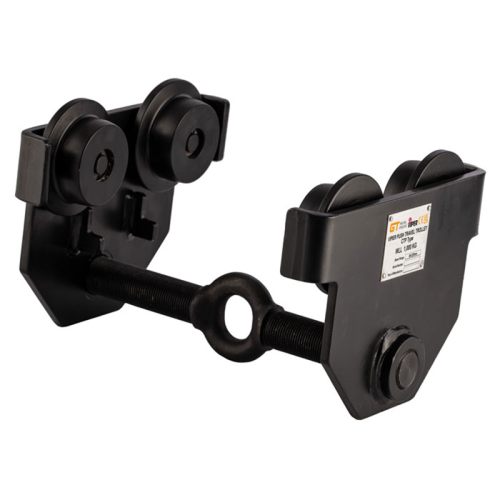

Push Travel Beam Trolley

SKU
HL800505

Push Travel Beam Trolley used to move along an I-beam or other overhead support structures. Designed to provide horizontal mobility and is commonly used in industrial settings for tasks such as moving heavy loads along assembly lines in warehouses or during material handling processes.

We supply Push Travel Beam Trolleys to withstand loads up to 5 tonnes.

Compliant to performance requirements of BS EN 13157.

As low as £54.35 £65.22
In stock

Quickest Available Delivery: Quickest Available Delivery: 2 Day Delivery Final shipping costs and times are calculated at checkout. Shipping address may affect available delivery methods & times.



Features:

  1. Design: The trolley typically consists of a frame with wheels or rollers that can move along the horizontal flanges of an I-beam.

  2. Manual Operation: "Push travel" indicates that the trolley is manually operated by pushing or pulling. Users move the trolley along the beam by exerting force on it.

  3. Adjustability: Some push travel beam trolleys are adjustable to fit different beam widths. This feature allows for versatility in various applications.

  4. Load Capacity: The trolley is designed to support load capacities up to 5 tonnes.

  5. Usage: Commonly used with hoists or other lifting equipment to facilitate the movement of loads horizontally along the beam.

Specifications:

  • Drop forge screw type adjuster to enable quick and secure adjustment.
  • Matt black finish.
  • Meets W.L.L. performance requirements of BS EN 13157.
  • Lightweight robust construction.
  • High-grade steel sealed ball bearings for precise and smooth rolling.
  • For use with hand and electric hoists.
  • Trolleys are designed for use with same capacity as Heavy Duty & Standard Chain Blocks & Lever Hoists in our range.
  • Side plates are produced with trolley wheel guards for additional safety.
