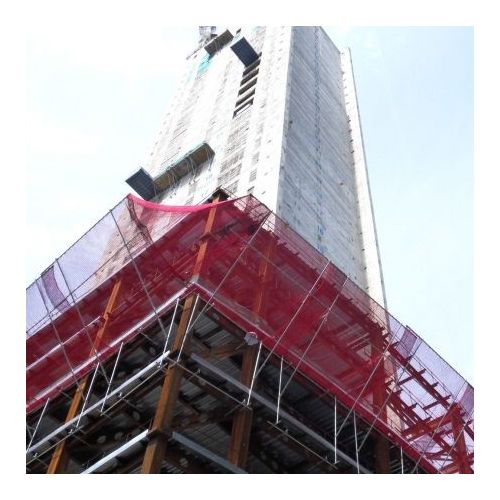

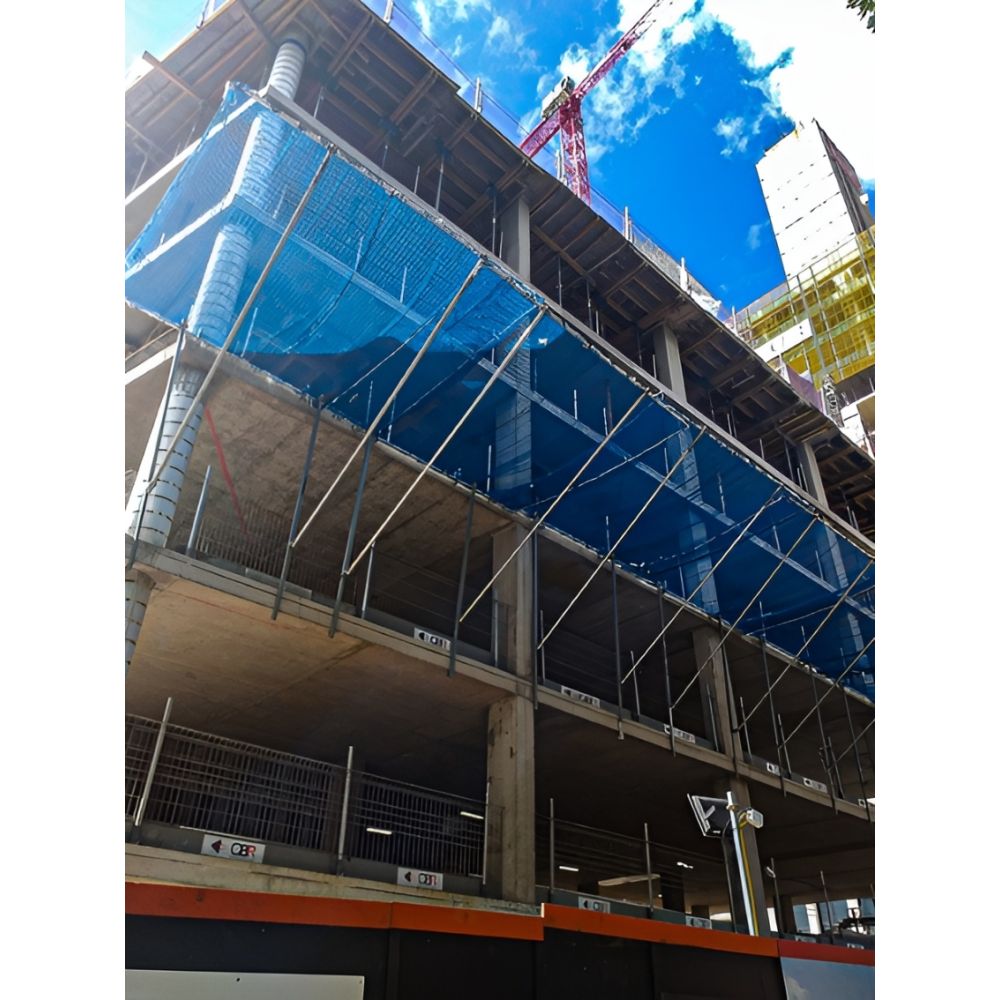

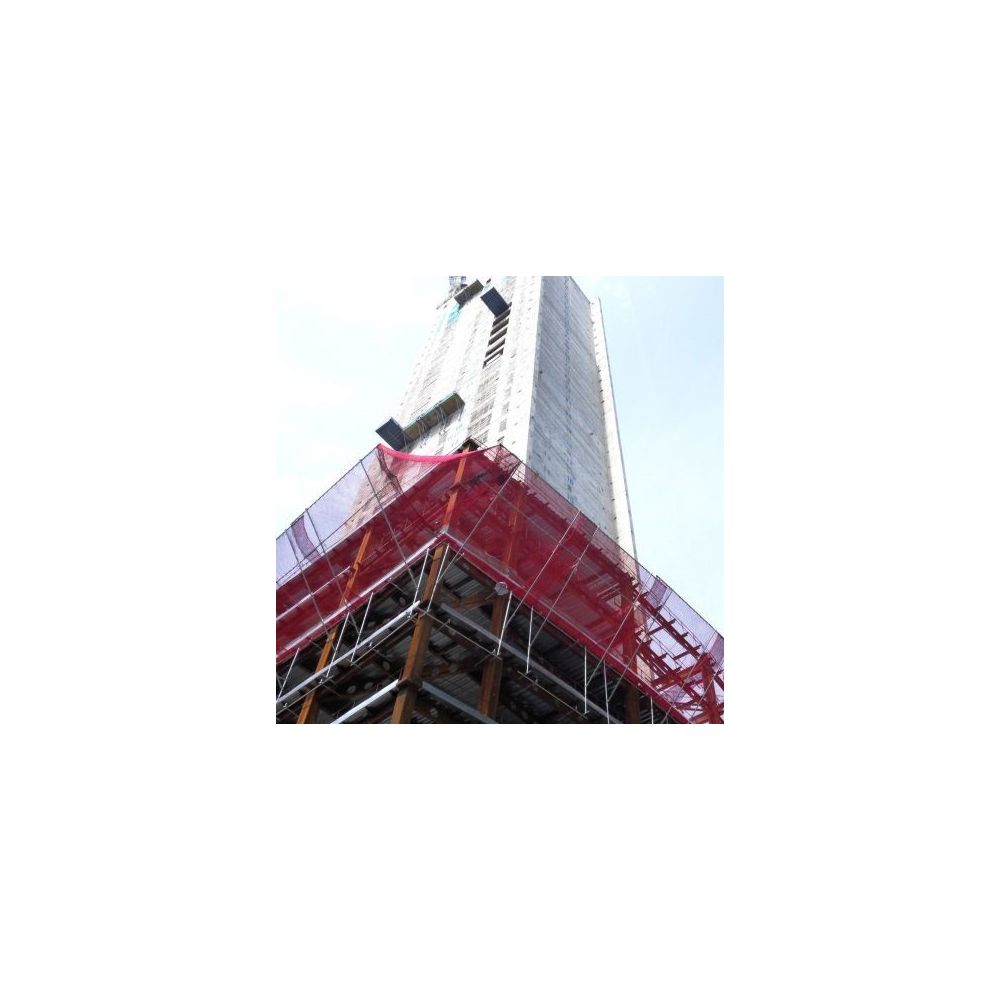

Safety Net Catch Fan

Key Features & Benefits

Designed to effectively capture and retain falling objects, the HERMEQ Fan helps protect operatives, the public, and nearby assets, while also reducing the risk of costly incidents and potential liability. Its highly adaptable design ensures compatibility with a wide range of construction methods, offering flexible configurations wherever reliable containment is required. The system’s layout improves site accessibility compared to traditional protection solutions, enabling work to continue efficiently even in areas where edge protection may need to be temporarily removed—provided appropriate restraint measures are in place. Additionally, the foldable design allows cranes to operate in close proximity to the building façade, enhancing overall site logistics.

• Protects public, employees, buildings, vehicles overhead cables.
• Designed to catch, absorb forces and contain falling items and debris.
• Fits to scaffolding, steel frame buildings and precast concrete.
• Fits overhangs and corners.
• Easy to reposition.
• Folds for crane access and high winds.

Product Value & Applications

The HERMEQ Fan has been engineered to overcome the ongoing risks associated with falling objects on construction sites—an area where many traditional protection methods fall short. Its design prioritises both effective containment and maximum versatility, ensuring reliable performance across a wide range of site conditions and building types.

At its core, the system incorporates a high-performance Class B1 safety net, featuring a 60 x 60mm primary mesh combined with a 20 x 20mm debris layer. This dual-layer configuration is proven to arrest loads of up to 100kg from heights of up to 6 metres, in full compliance with EN 1263. The net’s inherent elasticity, combined with controlled flex within the frame, dissipates impact forces efficiently reducing the risk of injury and preventing materials from rebounding or fragmenting onto areas below. With an energy absorption capacity of up to 7 kJ, the system significantly outperforms conventional protection solutions, while the finer debris mesh ensures even small particles are safely contained.

Designed with practicality in mind, the HERMEQ Fan can be folded inward for safe retrieval of fallen materials and to maintain operational flexibility. It can be installed directly onto steel or concrete structures or integrated with scaffolding using purpose-designed fixings. Multiple size options—including standard, maxi, and corner configurations—allow the system to adapt to complex building geometries, including structures with overhangs.

The system is also optimised for dynamic construction environments. It can be quickly repositioned by crane and progressively raised as the build advances. Units can be overlapped without the need for additional fixings, or securely joined where required, providing flexibility in layout and coverage. An optional wind-lock mechanism enhances stability under normal wind conditions while supporting safe retraction during extreme weather.

In addition to protecting workers and the public, the HERMEQ Fan helps safeguard adjacent buildings and infrastructure. Its translucent netting allows natural light to pass through, minimising disruption to pedestrian routes, retail spaces, and surrounding areas. This makes it particularly well suited to projects in busy urban locations where maintaining access and visibility is essential.

HERMEQ stocks a wide range of equipment for Working at Height, including Edge Protection Systems, Fall Arrest Systems, and Harnesses & Lanyards conforming to all required safety specifications and regulations.
