Heavy Duty Fall Arrest System
Frequently Bought Together

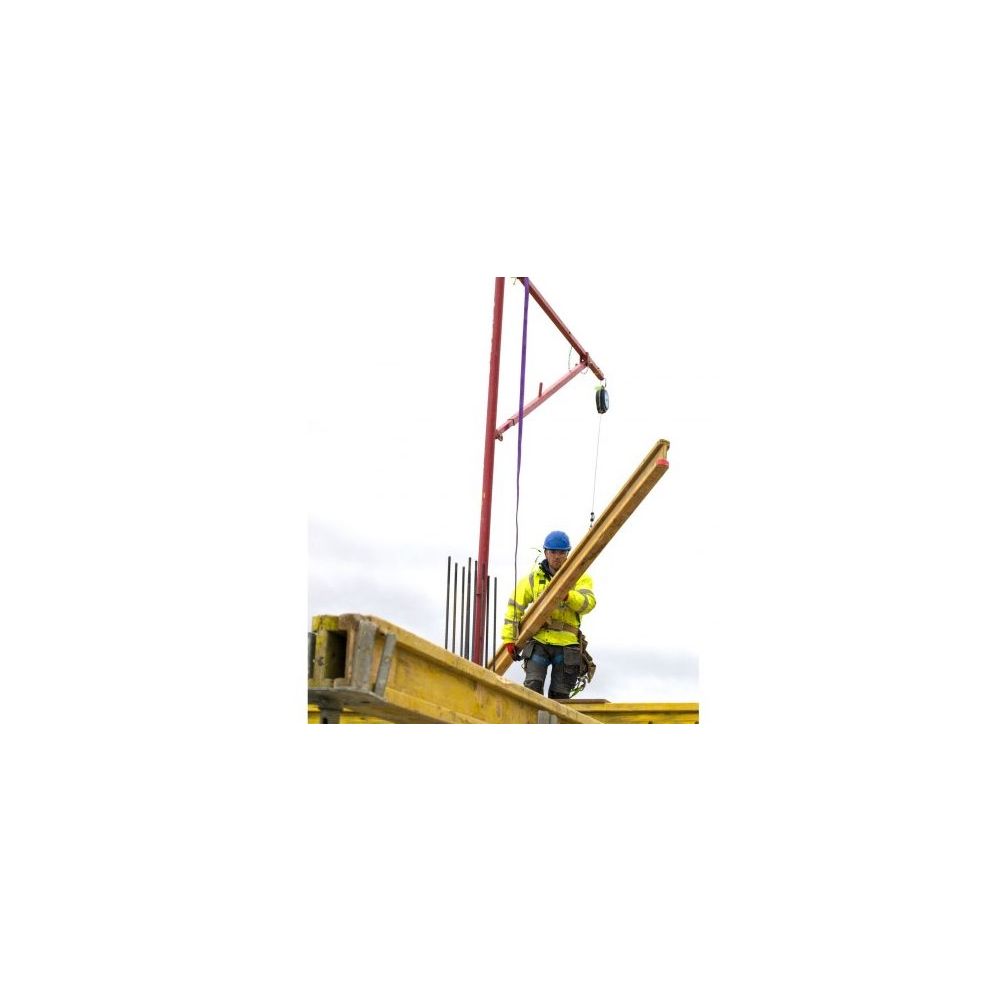

Our Heavy Duty Fall Arrest System is a heavy duty safety solution for personal protection when working at height during the decking for horizontal formwork operation. The system is swift to use and install, providing workers with 360˚ of free movement and covering an area of 125m² whilst allowing workers to move within a radius of 6.5m around the column.
The Heavy Duty Fall Arrest System is easy to use and install providing workers with 360˚ freedom of movement and covering an area of 125m². It is designed to prevent falls during the decking operation and provides personal safety when mounting decking panels, edge protection, slab edges and generally all formwork assembly activities where working at height is considered a risk.
The system is easy to set up and use with no external accessories are required. Optimally designed for columns spaced up to 8.5m apart allowing workers to safely cover surfaces up to 125m² with a radius of 6.5m
The Heavy Duty Fall Arrest System is Available with a Range of Extras:
- Retractable block – Fall arrest block that stops in case of fall
- Conical tube – Component to be inserted into concrete structure.
- Harness extension – Component joining the operator to the retractable device with 1.5m maximum length.
- Safety harness – Device anchoring the operator to the Fall Arrest System.
- Sling – Used for crane handling (if preferred). To take it out of the column or remove it once the work is complete.
- Cylindrical leveller – Accessory to ensure the conical tube is vertical and prevent it from rising under the pressure of the concrete.
- Hook – Component used to reach the Fall Arrest System to change the anchor point.
- Carabiner-EN 362 – Connects the main structure and harness extension to the user harness.
Supplied seperately these additional components are available to order along with your fall arrest system via our sales team who'll be happy to assist you with what additional features you may want from your Fall Arrest System, contact us today.
| Component | Dimensions (mm) | Weight (KG) |
|---|---|---|
| Aluminium L Shape Body | 2500x4300 | 80 |
| Retractable Device | 2500/3500 | 1599/1850 |
| Conical Tube | 873 x Ø76 | 2.71 |
| Harness Extension | 1500/500 | 0.31/0.15 |
| Safety Harness | 500 x 150 | 1 |
| Sling | 3000 | 0.62 |
| Cylindrical Leveller | 1.005 x Ø70 | 3.96 |
| Hook | 140 x 2,850 | 2 |
| Carabiner-EN 362 | 100 | 0.50 |
