Cellular Paving
Frequently Bought Together

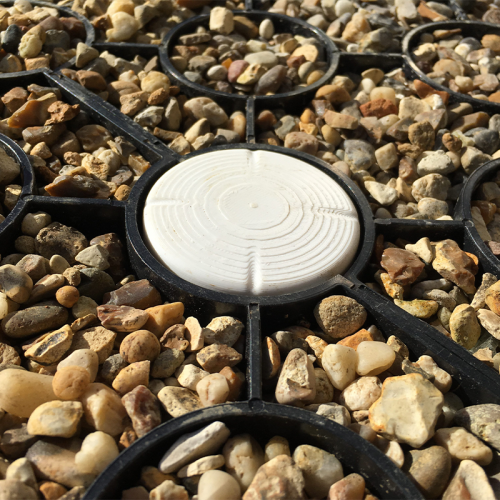

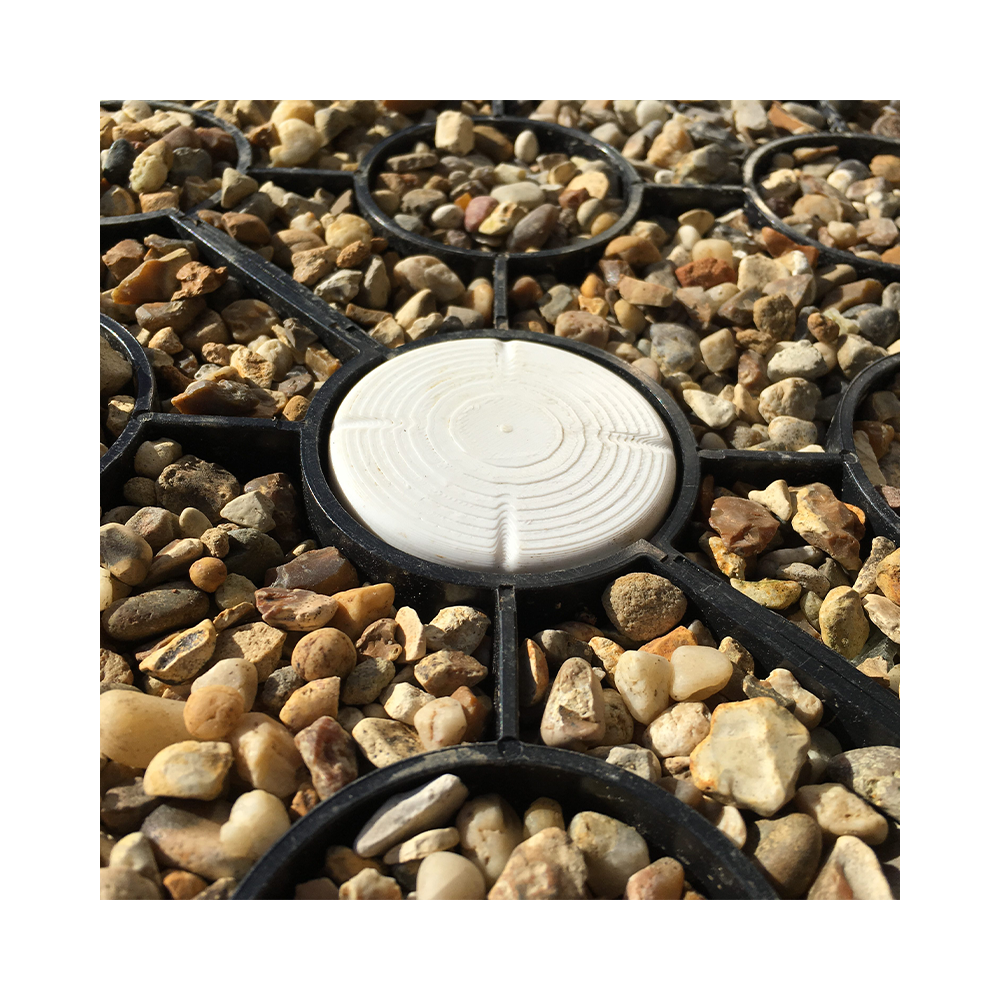

Cellular Paving is a cost-effective solution for rutted grass areas, displaced gravel and for surface water run-off control. These plastic tiles are locked together to create a permeable, reinforced surface giving your area an eco-friendly alternative to tarmac or concrete blocks.
The paviour system can be filled with soil or gravel – its open base has been designed to promote unrestricted grass root growth and prevent rutting. The permeability of the tiles allows water to drain through easily to mitigate against flooding in built-up areas making them fully compliant with Sustainable Urban Drainage Systems and the Flood and Water Management Acts 2010.
Features:
- Load-bearing capacity up to 160 tonnes/m²
- Vehicle compression strength of 20 tonnes axle loading (DIN 1072 standard-approved)
- Manufactured in the UK from chemically inert, non-toxic 100% recycled polymer
- Pre-assembled in 1 m² panels for quick installation – easily cut with hand or power saw
- 3mm wall thickness for excellent performance
- Will resist lateral movement, improve traction and allow expansion and contraction
- Promotes optimum grass growth, root protection and surface stabilisation.
- Open-cell structure for high surface water infiltration
- Low Carbon Footprint
Applications:
- Grass or Gravel Car Parks
- Overspill / Overflow Grass Car Parks
- Fire Access Routes
- Helipads
- Walkways and Disabled Access Routes
- Driveways and Residential Lawn Parking
- Shed base
Specifications:
- Tile Size: 500mm x 500mm x 40mm (4 tiles/m2)
- Tile Weight: 1.28kg
- Wall Thickness: 3mm
- Maximum Load: 160 tonnes/m2
- Maximum Axle Load: 20 tonnes
- Colour: Black
- Working Temperature: HDPE = -20 to +80ºC, PP = -20 to +70ºC
- Fire Rating: HB tested to BS EN 11925-2 2010
- Material: Recycled or virgin UV stabilised polyethylene / polypropylene (HDPE standard), chemically inert and non-toxic, frost-resistant
- Pallet Quantity: max 60m2 per pallet
HERMEQ stock a wide range of Ground Mats, Bog Mats, Trench Covers & Road Plates conforming to all required safety specifications and regulations.
Need any help? Contact HERMEQ Today.
Contact our team via phone 0800 043 2520, email sales@hermeq.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
