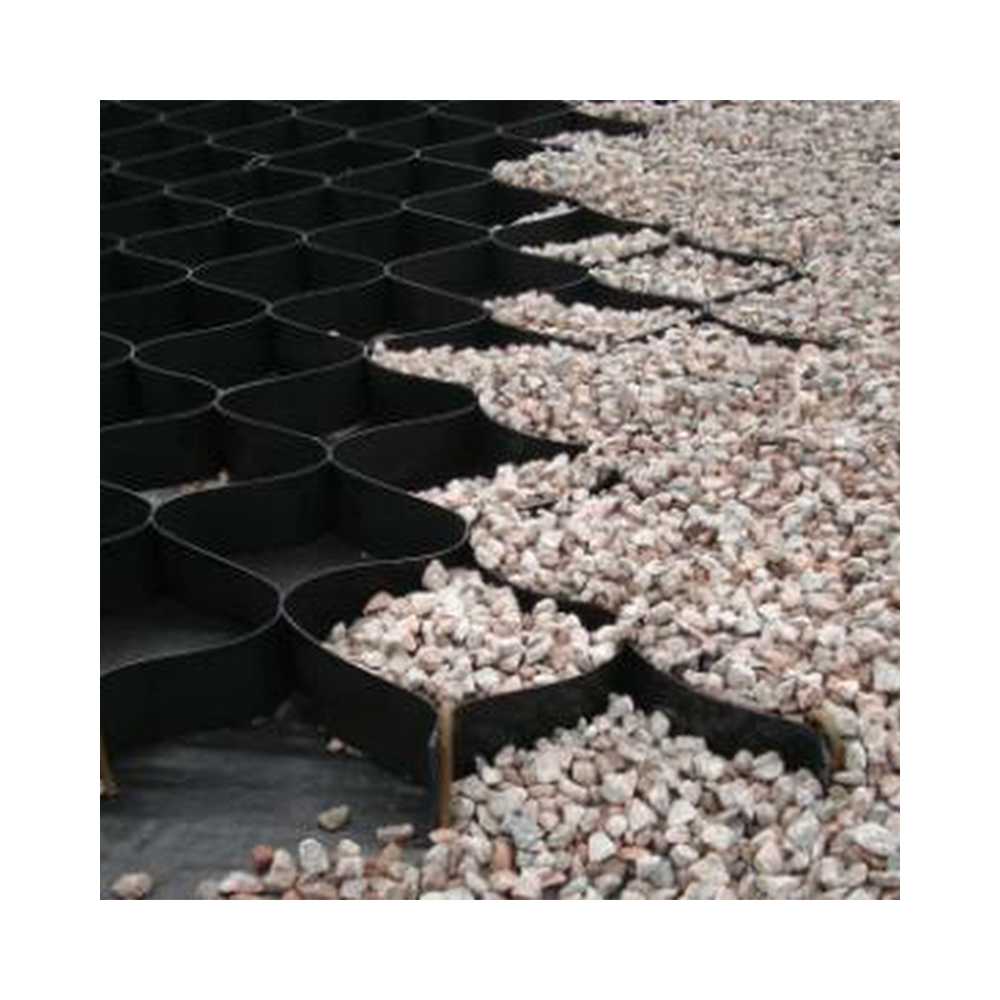

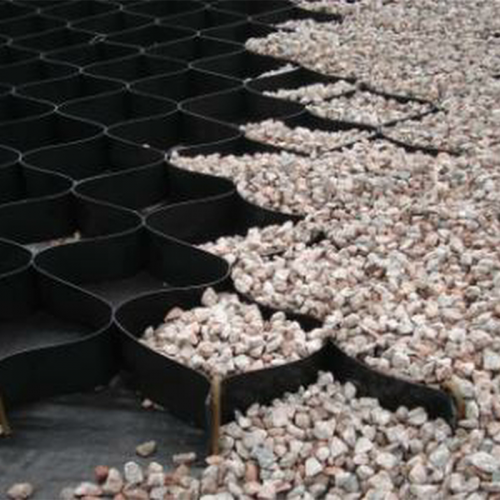

Gravel Paviour Systems consist of interconnecting polymer strips that form pockets to locate and strengthen the fill material which significantly improves the tensile strength to increase the resistance and cohesion of the fill.
This paving provides an excellent permeable solution for protecting tree roots providing a stable and robust platform for vehicle access pathways within the root protection area of the trees to prevent root damage. Each panel has been designed with a cellular structure to reduce vertical load pressure on sub soils and tree roots to prevent damage.
For Tree Protection applications, no-dig solutions are generally preferred and Paviour systems used with separating geotextiles is ideal with only the surface vegetation needing to be removed before installation. In addition to affecting the tree roots in your area, this also saves construction costs and controls surface rutting.
Applications:
- Vegetation and protection for steep slopes
- Reinforced grass surfaces for access roads, car parks, fire access
- Tree Root Protection
- Basal support for block paving under heavy loading
- Sand dune stabilisation
- Liner protection for lakes and ponds
Features:
- Designed with pockets to locate and strengthen the fill material
- Cellular matrix of interconnecting polymer strips
- Protects vegetation
- Can reduce foundation stone thickness up to 50%
- Life expectancy of 120 years
- Tested in accordance with BS EN 964-1 and BS EN ISO 13426-1-2003
Specifications:
- Colour: Black
- Material: High Density Polyethylene
- Material Thickness: 1.2mm
- Panel Size: 6.0mm x 4.0mm
- Cell Diameter: 300mm
- Cell Height: 75mm, 100mm, 150mm, 200mm
- Junction Tensile Strength: 900N, 1200N, 1800N, 2400N
- Material Tensile Strength: 22kN/m
- Panel Weight, 17kg, 24kg, 36kg, 48kg
