Product Highlights
- Concrete and hoarding hybrid system - Combines crash-tested barrier base with visual screening solution.
- 2.5T interlocking concrete block - Provides high-impact resistance and stable perimeter control.
- Fully rated timber hoarding - Class 3 plywood hoarding adds height and visual shielding on-site.
SKU CB4144

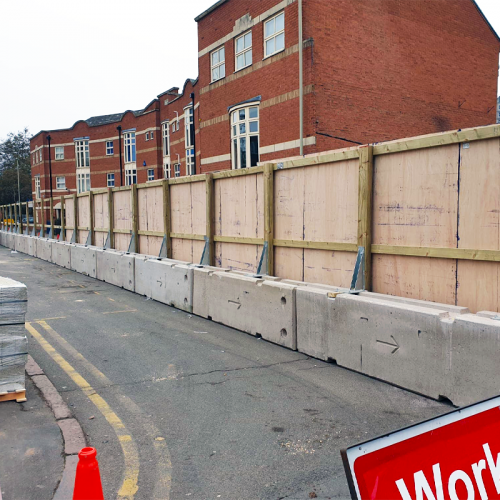

The PCH concrete block system features a 2.5T concrete barrier base with timber plywood hoarding for enhanced site security and privacy. Each interlocking unit spans 3150mm wide and reaches 2400mm in height when assembled. Ideal for high-traffic areas or urban worksites where visibility control and impact resistance are critical for safe operation.
The PCH Barrier is a complete concrete block hoarding system, engineered for environments where visibility management and vehicle impact resistance must work in tandem. It features a heavy-duty precast concrete base with a modular timber hoarding extension, creating a 2400mm high installation ideal for roadside, infrastructure, and construction perimeter protection.
The 2.5-tonne concrete base is based on HERMEQ’s tested Temporary Vertical Concrete Barrier (TVCB) design, measuring 3150mm overall length and 450mm in width. This mass is paired with pressure-treated timber hoarding panels, which include Class 3 rated 18mm plywood boards and structural C16-grade posts and rails. The combination provides both crash resistance and visual shielding.
Key features & benefits:
- Concrete block for retaining wall and hoarding base – Offers foundation-level support for long runs of screening panels.
- Timber hoarding fixed via angle gussets – Secured using coach screws and bolts for lasting rigidity.
- Modular installation – Ideal for long perimeter lines requiring repeated sections.
- Heavy-duty blocks – Built with 50N/mm² concrete for maximum crash performance.
This system is trusted for shielding construction zones in urban or roadside environments where public exposure and pedestrian safety must be tightly managed. The modular hoarding panels provide a clean finish while meeting all external durability standards.
HERMEQ stock a wide range of Concrete Barriers, Traffic Management, Permanent Fencing & Temporary Fencing conforming to all required safety specifications and regulations.
Need any help? Contact HERMEQ Today.
Contact our team via phone 0800 043 2520, email sales@hermeq.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
The PCH Barrier provides a turn-key concrete and timber perimeter system. The 2.5T base units are manufactured from 50N/mm² precast concrete and measure 3150mm in total length. The modular plywood hoarding sits atop each unit and consists of 18mm hardwood board, fixed with M8/M10 coach screws and gussets to 6x3 and 4x2 C16 structural timber sections.
- Hoarding height: 1600mm – Combined system reaches 2400mm assembled.
- Durability rated timber – Class 3 specification for long-term external exposure.
- Secure attachment method – Timber fixed using angle gussets, bolts and washers.
- Interlocking concrete blocks – Offer seamless line continuity and reinforced installation.
Each PCH concrete block hoarding system is delivered ready for installation with optional offloading services including Moffett access. Speak to our team for bespoke panel branding or installation services tailored to your site requirements.
What does the PCH block system include?
Each unit includes a 2.5T interlocking concrete base and a timber plywood hoarding extension secured with structural timber and bolts.
Is the plywood suitable for outdoor use?
Yes. The timber hoarding panels are made from 18mm Class 3 hardwood plywood rated for external use.
Can the system be repositioned?
Yes. The concrete blocks can be moved or adjusted as needed.
Are these suitable as concrete blocks for retaining wall use?
While not retaining blocks, their structure provides significant stability for fencing and screening applications.
