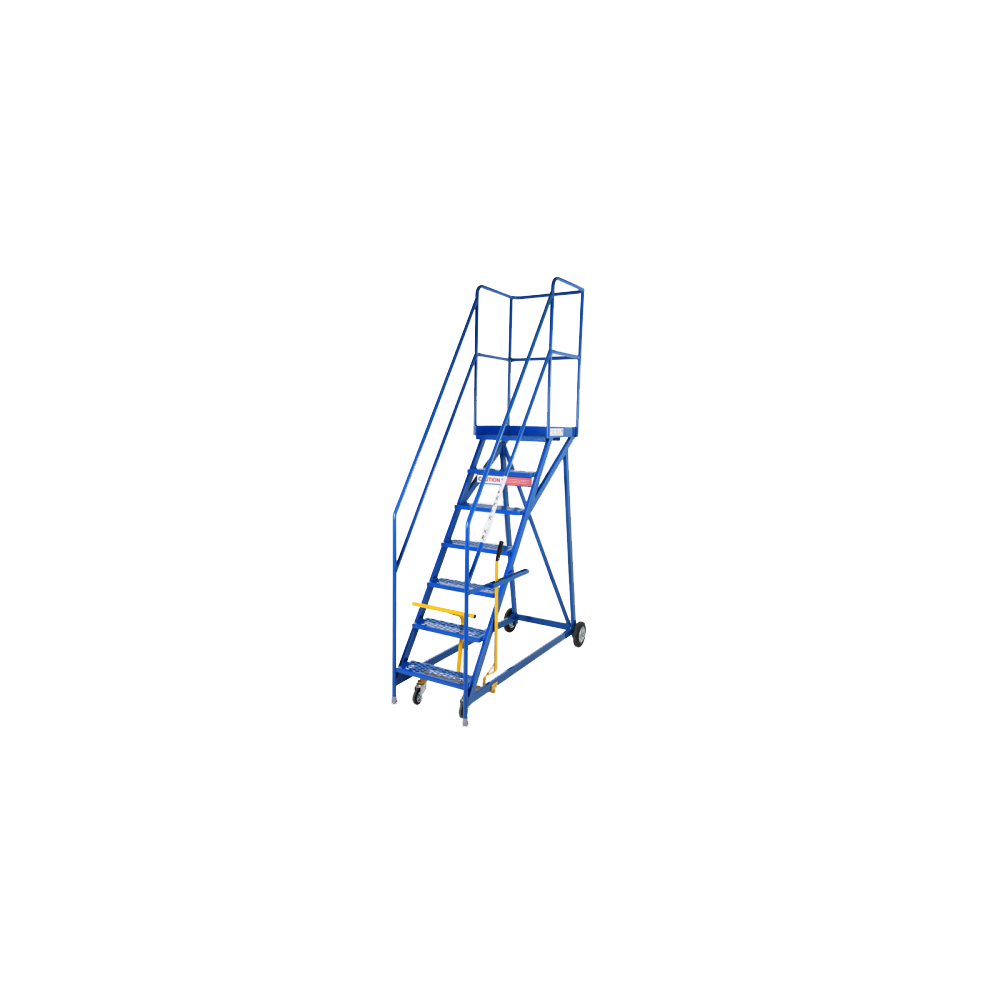

Heavy Duty Narrow Base Steps
Heavy Duty Narrow Base Portable Steps have designed to cater to narrow spaces. in the most demanding of environments such as busy warehouses. These Mobile Step Units can be ordered with 3 up to 15 treads including the platform at the top.
Quickest Available Delivery: Quickest Available Delivery: 3 to 4 Week Delivery
Each Step Unit comes with a hand lock anchorage to ensure that when locked the front feet rest firmly and securely onto the ground for increased safety. The steps also come with a safety warning bar fitted to protrude in front of the steps to deter users from climbing the steps with the unit is mobile and not static.
Each Step Unit comes with a hand lock anchorage to ensure that when locked the front feet rest firmly and securely onto the ground for increased safety. The steps also come with a safety warning bar fitted to protrude in front of the steps to deter users from climbing the steps with the unit is mobile and not static.
At the base legs of your Narrow Base Portable Steps come 2 swivel castors with 100mm diameter rubber tyred wheels with roller bearings and 2 rear axle mounted 200mm diameter wheels with rubber tyres and roller bearings.
Manufactured in the UK from welded heavy gauge steel box section and bar construction and powder coated with a durable blue epoxy coating with the safety bar and hand lever mechanism finished in safety yellow.
You have the choice to choose between a Ribbed Rubber or Expanet Tread Surface depending on your preference.
Our Portable Step range are the only BSI Kitemark Standard BS EN 131-7 internationally accredited range available in the UK after rigorous testing. This best in-class range sets a new benchmark for quality, durability, reliability and safety.
|
Treads |
Average Working Height |
Platform Height |
H x W x D (mm) |
|---|---|---|---|
| 3 | 2190mm | 690mm | 1690 x 700 x 930mm |
| 4 | 2420mm | 920mm | 1920 x 700 x 1140mm |
| 5 | 2650mm | 1150mm | 2150 x 700 x 1240mm |
| 6 | 2880mm | 1380mm | 2380 x 700 x 1410mm |
| 7 | 3110mm | 1610mm | 2610 x 700 x 1570mm |
| 8 | 3340mm | 1840mm | 2840 x 700 x 1740mm |
| 9 | 3570mm | 2070mm | 3070 x 700 x 1900mm |
| 10 | 3800mm | 2300mm | 3300 x 900 x 2060mm |
| 11 | 4030mm | 2530mm | 3530 x 900 x 2230mm |
| 12 | 4260mm | 2760mm | 3760 x 900 x 2400mm |
| 13 | 4490mm | 2990mm | 3990 x 1230 x 2560mm |
| 14 | 4720mm | 3220mm | 4220 x 1230 x 2730mm |
| 15 | 4950mm | 3450mm | 4450 x 1230 x 2890mm |
