HERMEQ NorwaySafe Base Wind Resistance System
Product Highlights
- Single or double ballast support - Adaptable for light or high wind conditions.
- Anti-trip foot design - Increases site safety and complies with edge risk standards.
- Quick integration - Fits all HERMEQ hoarding base and metal fencing systems.
SKU SS1827
Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery

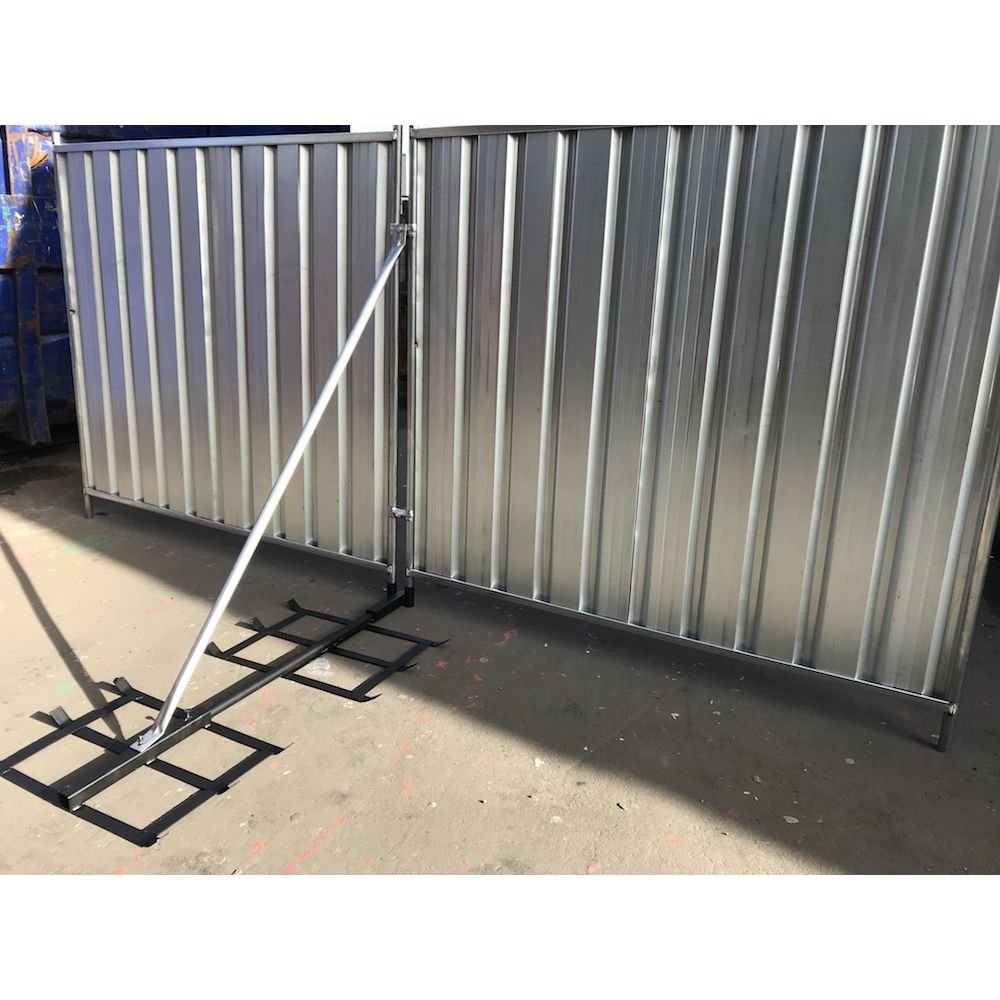

The Safe Base Wind Resistance System is designed for on-ground installation to improve the wind loading of temporary metal fencing and hoarding panels. Available in both single and double tray configurations, it uses additional weight and structural bracing to stabilise fencing installations in exposed or high-risk areas.
This system is widely used on construction and infrastructure projects where steel hoarding is deployed without permanent ground fixing. The trays support standard ballast materials such as concrete blocks or sandbags, creating a secure panels base that resists tipping and shifting due to wind or movement.
- Ballast tray options - Choose between single or double trays depending on wind exposure.
- Anti-lift bracket system - Prevents uplift during severe conditions.
- Anti-trip base feet - Reduces pedestrian hazards around perimeter areas.
- Quick fit assembly - No need for in-ground installation tools or fixings.
- Modular design - Scales with site requirements and panel layouts.
This system is built to stabilise hoarding bases across flat terrain where temporary fencing cannot be dug into the ground. As weather becomes increasingly unpredictable, project managers rely on systems like this to maintain control and compliance without requiring fixed foundations.
The single tray version includes a metal base foot with one ballast tray, a stabilising brace, and a coupler that connects to hoarding panels or mesh fencing. This gives standard wind loading reinforcement ideal for semi-sheltered or residential settings. For higher-risk areas—such as open fields, elevated sites, or winter works—the double tray version adds a second ballast base, increasing weight capacity and anchorage.
The Safe Base is compatible with HERMEQ’s steel hoarding panels and metal fencing systems, integrating directly with existing site assets. The adjustable ballast system can be deployed and reconfigured quickly to accommodate site layout changes or evolving security boundaries. With no permanent fixing required, it also minimises reinstatement work at the end of the job.
Whether used as a short-term risk reduction tool or a long-term wind resistance solution, the Safe Base system delivers exceptional performance for contractors managing compliance and safety. Its integration with HERMEQ’s broader fencing ecosystem ensures a cohesive, adaptable solution for B2B applications across construction, utilities, and event infrastructure.
HERMEQ stock a wide-range of Steel Site Hoarding, Temporary Fencing, Permanent Fencing & Road Barriers conforming to all required safety specifications and regulations.
Need any help? Contact HERMEQ Today.
Contact our team via phone 0800 043 2520, email sales@hermeq.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
The Safe Base Wind Resistance System is engineered to mitigate wind-related instability across metal fencing, hoarding panels and temporary perimeters. Particularly useful on urban infill sites, scaffold boundaries, and demarcated roadways, it adds lateral strength to flat-surface fencing systems.
- Frequently specified for highways, airport perimeter fencing, and major infrastructure builds.
- Used on internal compounds where in-ground fixing is restricted due to underground services or substructure risks.
- Suitable for both urban and rural locations—especially areas affected by crosswinds or high footfall.
Tray Configurations and Ballast
The modular design enables users to choose either a single or double tray setup. Each tray accommodates standard HERMEQ ballast blocks or third-party weights. Where higher wind loads are expected, a second tray can be bolted on to double the ballast capacity and create a heavier base.
Panel Compatibility
Designed for HERMEQ hoarding panels and metal fencing systems, the Safe Base slots under standard fence feet or panel junctions to maintain stability. Its low profile also ensures there are no trip hazards across pedestrian routes or site walkways.
Anti-Lift and Anti-Trip Safety
Every unit is fitted with an anti-lift coupler and anti-trip foot. This prevents the panel from tipping forward or dislodging under pressure. These safety features make it fully compliant with temporary works best practices and ideal for contractors prioritising H&S compliance.
Installation and Reuse
No ground penetration is required. The system can be set up, repositioned, and dismantled without causing ground disturbance—making it suitable for projects with phased works or environmental controls. All parts are galvanised for long life and reuse across multiple projects.
What’s the difference between the single and double tray version?
The double tray version holds twice as much ballast, providing stronger wind resistance. It’s ideal for exposed sites or areas with high wind loading.
Can this be used on uneven surfaces?
This system is designed for flat, stable ground. For uneven surfaces, additional bracing or levelling may be required.
What ballast can be used in the trays?
Standard concrete blocks or sandbags are suitable. The trays are sized for HERMEQ ballast units but compatible with other materials of similar dimensions.
Will this system fit all metal fencing or hoarding bases?
Yes, it is compatible with HERMEQ metal fencing and hoarding panel systems. Check dimensions for third-party panels before use.
