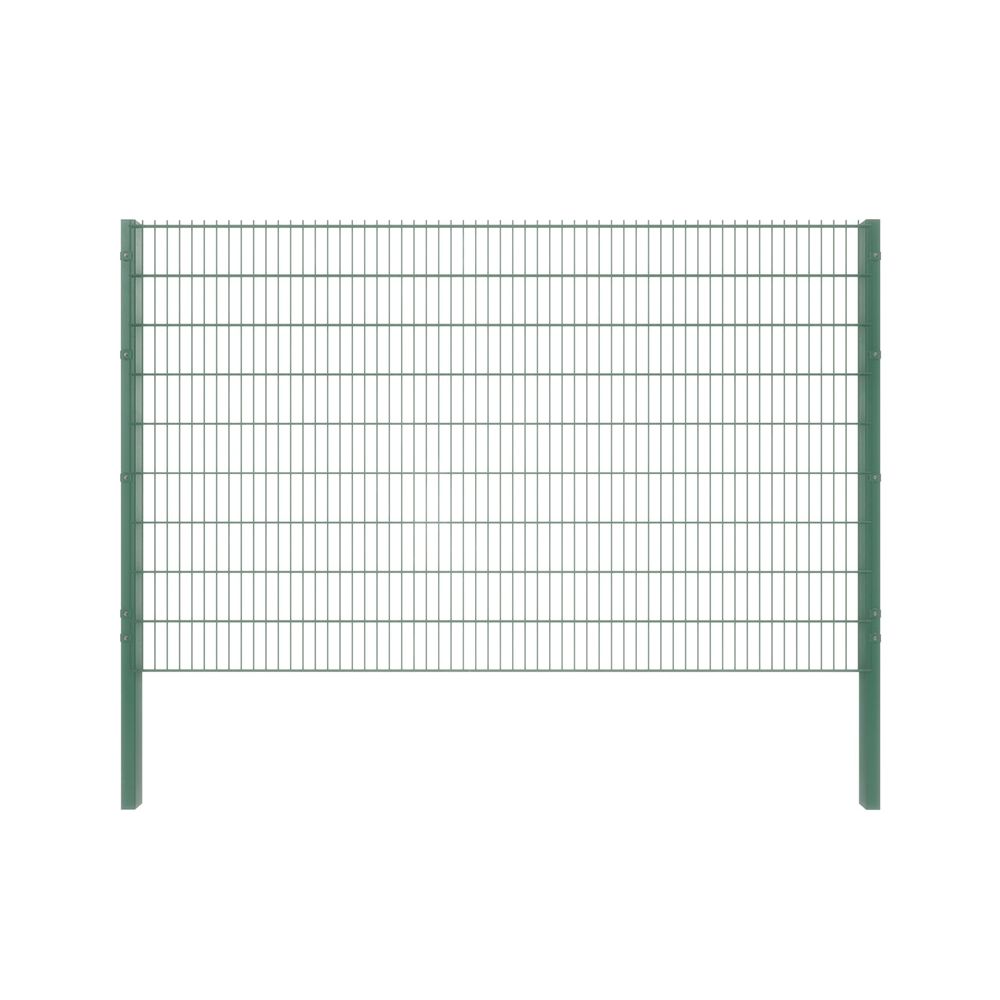

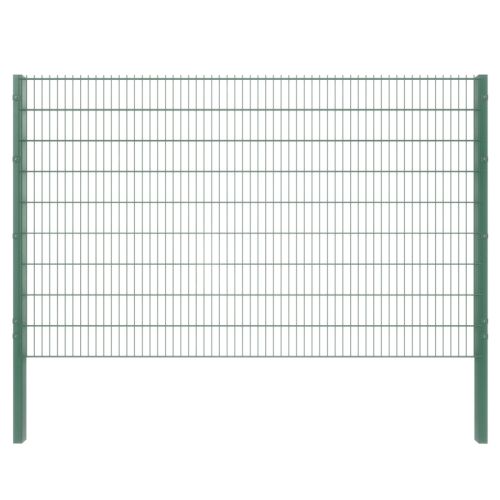

HERMEQ NorwaySafe Mesh Twin Wire (868) - Panel Only
Product Highlights
- Twin Wire Strength - Built from two 8mm horizontals & one 6mm vertical wire for added durability.
- Secure Fixing System - Clamp bar and vandal-resistant screws prevent tampering and enhance safety.
- Powder-Coated Finish - Long-lasting, corrosion-resistant coating compliant with BS EN 13438.
Alternative Products
SKU SM532002
Quickest Available Delivery: Quickest Available Delivery: 2 Day Delivery
Specifications
- Mesh Panel - mesh size 66.6 x 50mm up to 1200mm high then wire spacing at 200 x 50mm - 1 x 6mm vertical and 2 x 8mm horizontal wire
- Post size varies with height (see table)
- Clamp Bar 40 x 5mm at bar (full length of mesh panel)
- Plastic Cap varies with post size
- M8 x 40 stainless steel security screw
Posts, Clamps and Fixings
The posts and full-length clamp bars that we offer provide a fixing system which secures the panels but allows for variations. The system is easy to install and allows the panels to be stepped, helping the fence line to follow the contours of the ground. With the vandal-resistant security fixings, this post and clamp system provides a higher level of security than the traditional clip system.
Product and Finish Standards
- Mesh panel wire manufactured to BS 4102 and galvanised to BS EN 10244-2:2001 class D, weld strength is 75% of the minimum tensile strength of the wire (tensile range 540-690 N/m2)
- Post material manufactured to BS EN 10210-2:1997 and galvanised to BS EN 10346:2009
- Panels and Posts are powder coated to BS EN 13438:2005 (min 100 microns)
HERMEQ stock a wide-range of V Mesh Perimeter Fencing, Vehicle Access Gates, Permanent Fencing & Temporary Fencing conforming to all required safety specifications and regulations.
Need any help? Contact HERMEQ Today.
Contact our team via phone 0800 043 2520, email sales@hermeq.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
This 868 twin wire panel is engineered for tough site demands including:
- Commercial perimeter fencing and business parks
- School enclosures and public play areas
- Recreational grounds and community zones
- Industrial estates requiring durable mesh fencing
Available in multiple heights and coated to industry standards, this panel is an essential component in HERMEQ’s mesh wire fence range. It’s ideal for areas where anti-climb, high-strength panels are critical. Easy to install with stepped panel options and vandal-proof fixings, this system delivers superior protection and a professional finish.
- Mesh Type: Twin 8mm horizontal, 6mm vertical
- Mesh Spacing: 66.6 x 50mm (up to 1.2m), then 200 x 50mm
- Finish: Galvanised & Powder Coated to BS EN 13438:2005
- Compliance: BS 4102, BS EN 10244-2:2001, BS EN 10346:2009
- Post System: Varies by height, clamp bar + M8 x 40 fixings
What size mesh wire does the 868 panel use?
It features two 8mm horizontal wires and a 6mm vertical wire, offering high rigidity and cut resistance for perimeter fencing.
Where is this mesh fencing typically used?
It’s ideal for commercial sites, schools, recreational areas, and industrial zones where visibility and strength are key.
How is the panel fixed to the post?
This system uses full-length clamp bars and vandal-resistant security fixings for a higher-security alternative to traditional clips.
Is the panel compliant with UK safety standards?
Yes. All materials and finishes meet BS and EN standards for strength, galvanisation, and powder coating.
