Combiform Screed Rail Top Extender 30mm
Product Highlights
- Extended coverage - Adds 30mm height for deeper concrete cover applications.
- Integrated contraction joint - Replaces traditional saw cuts in slab setups.
- Removable or permanent - Can be left in place or removed post-cure.
SKU KF3510

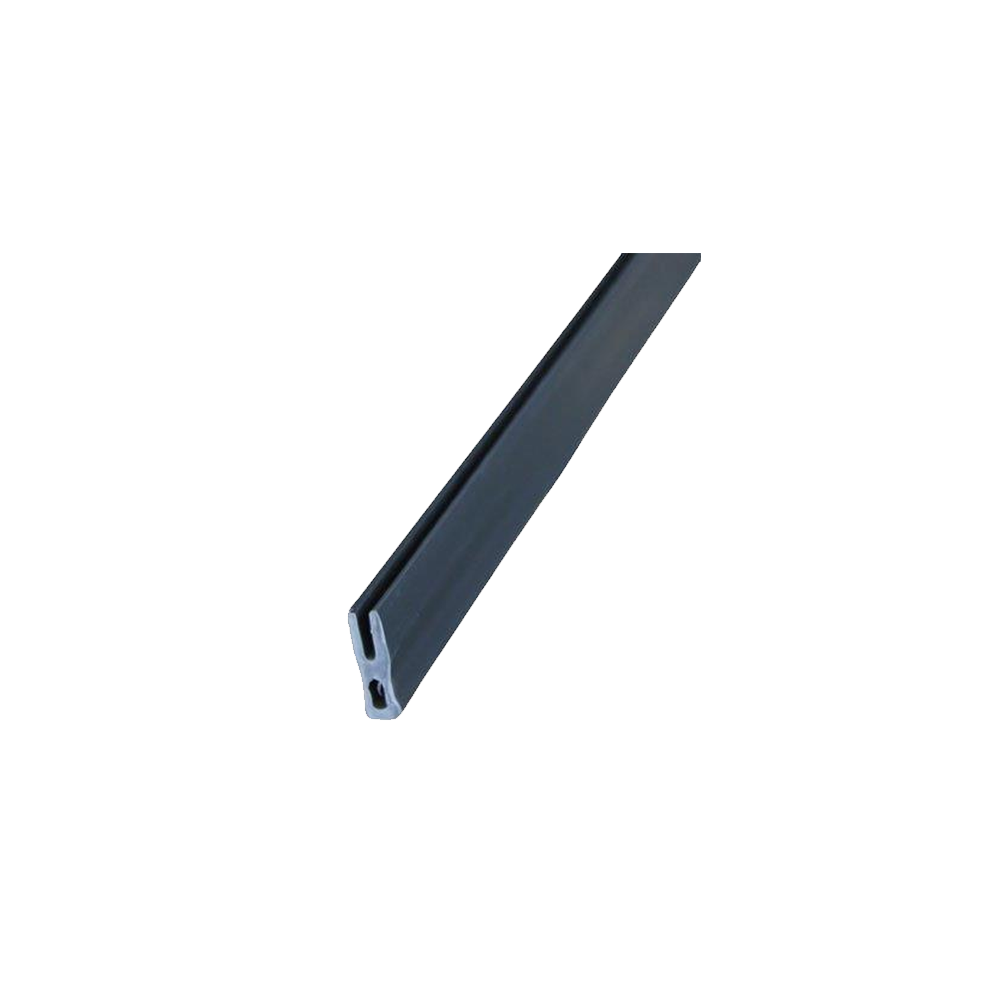

This 30mm plastic screed rail extender is mounted on top of an existing rail to increase concrete cover and serve as a built-in saw cut. It helps form slab joints while streamlining installation. Suitable for heavy-duty floors and aggressive environments, this screed rail top extender can be removed or left in place. Durable, flexible, and easy to apply on site.
The Combiform screed rail extender enhances concrete floor setups by increasing slab depth while forming clean and accurate contraction joints. Designed to sit on top of an existing screed rail, this 30mm component eliminates the need for post-cure saw cutting and simplifies joint planning across a range of slab layouts.
Made from PP plastic, this screed rail top extender is suitable for both internal and external environments. It performs reliably even in chemically aggressive or abrasive industrial settings, supporting greater slab thickness where required.
- Flexible application - Can be left in after curing or removed for alternate joint filling.
- Efficient workflow - Speeds up joint formation and reduces the need for post-cure tooling.
- Heavy-duty compatible - Designed for use in industrial and commercial slabs.
- Joint accuracy - Ensures contraction points form exactly where needed.
- Durable construction - Made from EU-compliant polypropylene plastic.
Whether used in large warehouse slabs or external yards, the extender ensures a clean finish without added tooling time. It improves site efficiency by removing the need for saw cuts and supports consistent performance across the full surface area.
Mounting is straightforward—simply clip or place the screed rail extender atop the base rail before concrete pouring. Once cured, it can be removed for sealant application or left in as a permanent fixture. The 30mm profile offers excellent control for deep-pour sections or topcoat overlays.
HERMEQ stock a wide-range of Road Forms, Groundworks, Ground Mats & Road Plates conforming to all required safety specifications and regulations.
Need any help? Contact HERMEQ Today.
Contact our team via phone 0800 043 2520, email sales@hermeq.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
- Mounts directly on screed rails to create predefined contraction joints.
- Supports thicker topcoat concrete applications across slab installations.
- Can be removed post-pour or left in permanently with sealant.
- Ideal for environments requiring robust joint systems in floors.
- Manufactured from PP plastic to EU standards 67/548/EEC and 1999/45/EC.
Height (mm) | Length (mm) | Width (mm) | Weight/pc (KG) |
30 | 2200 | 8 | 0.5 |
Material: PP plastic (compliant with 67/548/EEC & 1999/45/EC)
Height: 30mm
Length: 2200mm
Width: 8mm
Weight: 0.5kg
Use: Joint former and topcoat depth extender
What is a screed rail extender used for?
It increases concrete cover and replaces saw cutting by forming built-in contraction joints.
Is the combiform extender removable?
Yes, it can be removed post-cure or left in place depending on sealant requirements.
What type of floors can it be used with?
It's suitable for heavy-duty, industrial, and chemical-resistant environments.
How is it installed?
The extender mounts directly on top of a standard screed rail before pouring.
