V Mesh Fence Feet Locking System

Product Highlights

  • Stabilised System - Securely locks V-mesh fence panels on all surfaces.
  • Anti-Trip Bracket - Safe for public areas and pedestrian zones.
  • Reusable Kit - Lightweight and durable for project-to-project redeployment.

SKU A105550

Engineered for V-mesh fencing, this temporary fencing locking system provides strong anchoring on soil, concrete and asphalt surfaces. It includes a stabilising brace and bracket for high wind resistance and site safety. Lightweight, reusable and anti-trip, this mesh fence locking system is ideal for secure, compact installations on construction or event perimeters.

As low as £114.74 £137.69
In stock

Quickest Available Delivery: Quickest Available Delivery: 3 Day Delivery Final shipping costs and times are calculated at checkout. Shipping address may affect available delivery methods & times.



HERMEQ’s V Mesh Fence Feet Locking System delivers secure, reusable ground anchoring for temporary fencing. Designed specifically for V-mesh fencing, this kit ensures upright panel stability across uneven or exposed sites. It supports deployment on soil, concrete or asphalt, making it ideal for civil works, events, and perimeter protection tasks.

Its stabilising brace enhances wind resistance, and the compact bracket profile minimises trip hazards. The lightweight construction makes site logistics and reuse easier, even across large projects.

  • Specialist Mesh Fence Locking System – Purpose-built for securing V-mesh fencing.
  • Stabilising Brace – Delivers superior resistance in windy conditions.
  • Low Trip Risk – Designed to sit below footfall areas and walkways.
  • Versatile Ground Fixing – Compatible with soil, asphalt and concrete setups.
  • Temporary Fencing Ready – Ideal for rapid site protection and controlled access.

HERMEQ’s V Mesh Fence Locking System is a professional-grade anchoring solution tailored for securing V-mesh panels during temporary installations. It is particularly useful in infrastructure builds, civic works, or any job requiring rapid deployment and takedown of fencing.

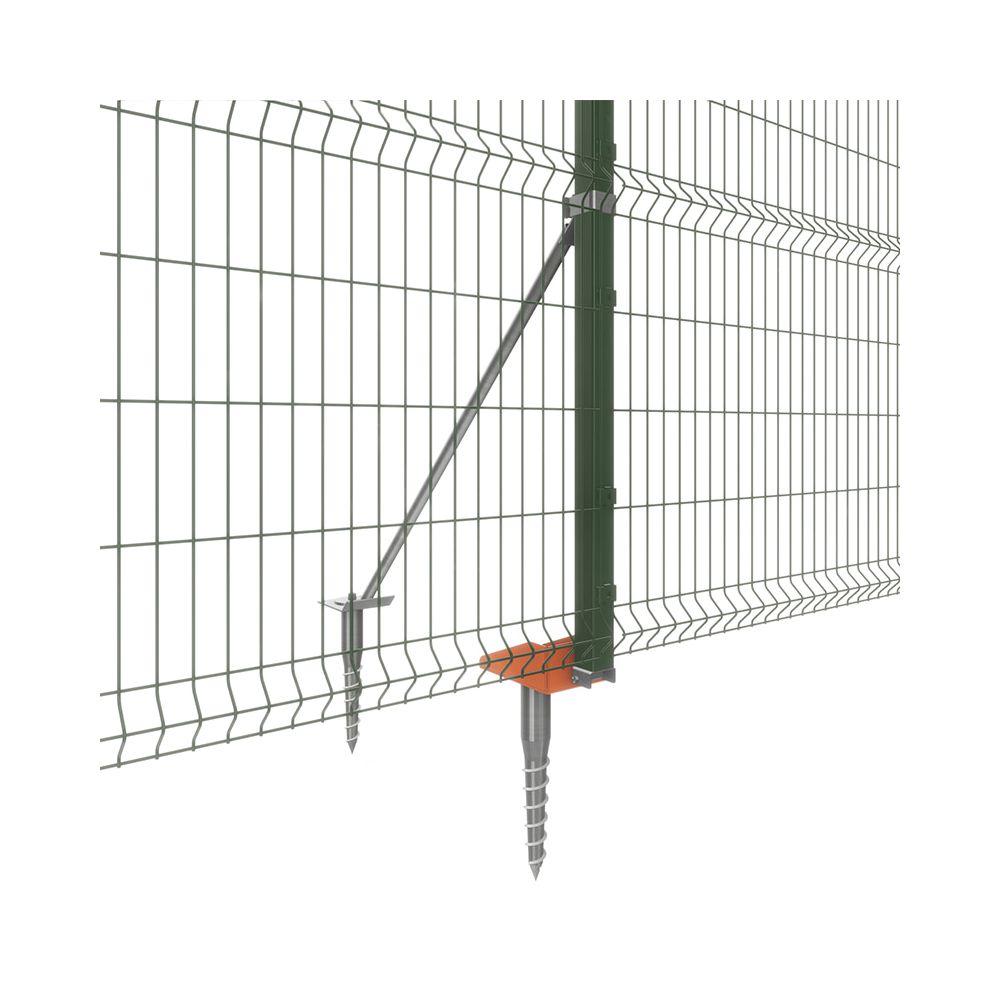

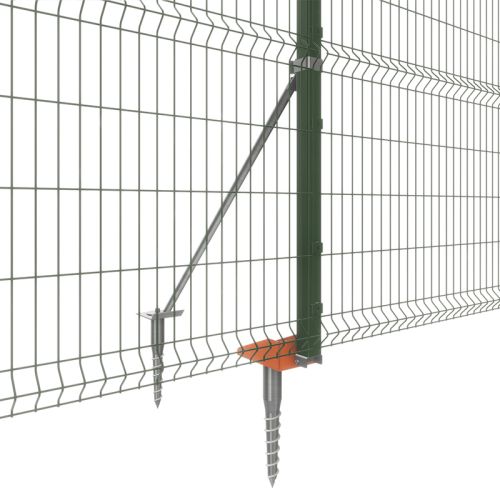

This system works by bracing the fence’s upright posts with a U-bracket and securing the base using surface-specific fixings. These include galvanised screws for soil, resin-anchored bolts for asphalt, and M12 screws for concrete. Once installed, the fencing is held rigid even during poor weather or high winds.

The compact design ensures minimal disruption in pedestrian access zones, reducing injury risk and helping sites stay compliant with safety regulations. It also prevents nesting or blockage, thanks to the minimal environmental footprint of the bracket’s structure.

The full kit includes a V-mesh bracket, stabiliser brace, U-bracket, and fixings. This solution is particularly useful for sites where fencing may need to be relocated regularly. Its zinc-plated construction resists rust and wear from outdoor use.

HERMEQ stock a wide-range of Accessories, Temporary Fencing, Mesh Fencing & Permanent Fencing conforming to all required safety specifications and regulations.

Need any help? Contact HERMEQ Today.

Contact our team via phone 0800 043 2520, email sales@hermeq.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.

This V-mesh fence locking system is engineered for temporary fencing setups where panel stability and safety are critical. From site perimeter control to utility and infrastructure development, it delivers reliable support across multiple surface types. Lightweight yet tough, each component is easily installed and packed for reuse.

  • V-Mesh Bracket: Zinc Plated, 4.5KG, 310mm x 180mm x 210mm
  • Post U-Bracket: Zinc Plated, 0.5KG, 1520mm x 160mm x 120mm
  • Stabilising Brace: Zinc Plated, 5KG, 1520mm x 160mm x 120mm

Fixing types:

  • Soil: 2x Flanged Ground Screws – Galvanised, 530mm x 150mm x 68mm
  • Concrete: 4x M12 Screws – Zinc Plated
  • Asphalt: 4x M12 Anchors – Combined with resin for high durability

Use this system for:

  • Public works or road closures – Maintain secure perimeter with fast deployment.
  • Event crowd control – Align fencing safely in public zones.
  • Construction site demarcation – Lock V-mesh fencing reliably around temporary structures.

The components are designed for minimal disruption and maximum durability, supporting long-term use across rotating project sites. The system offers reduced setup time and increased reliability over traditional methods like ballast blocks or weighted bases. It reduces the risk of wind displacement or fence movement, and thanks to its reusable design, offers long-term cost savings.

  • V-Mesh Bracket: Zinc Plated – 4.5KG – 310mm x 180mm x 210mm
  • Post U-Bracket: Zinc Plated – 0.5KG – 1520mm x 160mm x 120mm
  • Stabilising Brace: Zinc Plated – 5KG – 1520mm x 160mm x 120mm
  • Flanged Ground Screw (Soil): Hot Dip Galvanised – 3KG – 530mm x 150mm x 68mm
  • Concrete Screw: Zinc Plated – 0.1KG – M12
  • Asphalt Anchor: Zinc Plated – 0.1KG – M12

What’s included in the V Mesh Locking System kit?
The system includes a V-mesh bracket, post U-bracket, stabilising brace and fixings for your selected surface type: soil, concrete or asphalt.

Can this system be used with standard mesh fencing?
No. This system is designed specifically for V-mesh fencing due to its bracket shape and support geometry.

Is this solution suitable for windy sites?
Yes. The stabiliser brace offers excellent resistance against wind and weather, keeping fences upright and locked in place.

Are the parts reusable?
Absolutely. All parts are made from zinc-plated or galvanised steel and can be reused across multiple sites.
