HERMEQ DACHWalkthrough Crowd Barrier - Advanced
Product Highlights
- Spring-Loaded Gate: The gated opening automatically returns towards the closed position after use, helping maintain a defined pedestrian access point.
- 750mm Walkthrough Opening: Provides a clearly marked route for pedestrians entering or leaving a controlled area.
- Connects to Barrier Runs: Hook-and-eye fittings allow the unit to join compatible fixed-leg and loose-leg crowd control barriers.
SKU WB680025

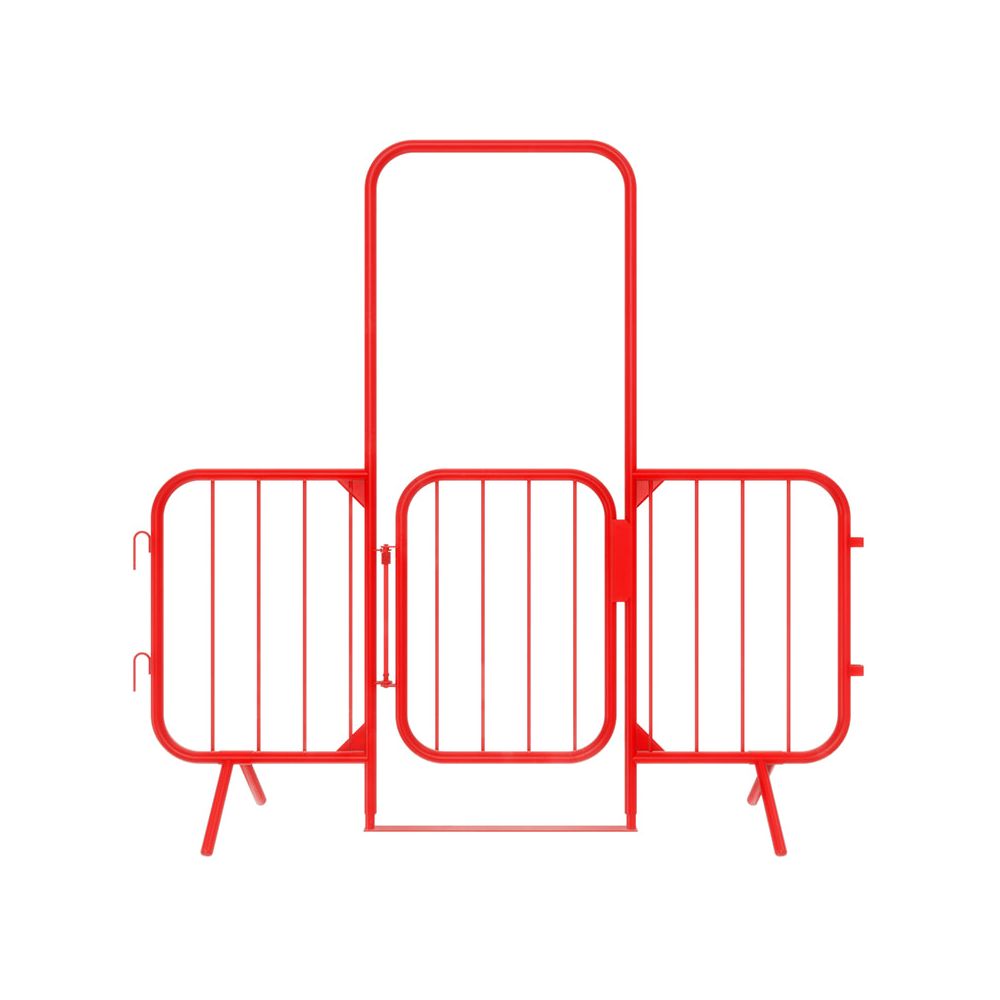

The HERMEQ Walkthrough Crowd Barrier with Gate creates a controlled pedestrian entry or exit point within a connected crowd barrier run. It features a 750mm opening, spring-loaded gate, slam plate and supporting bottom bar, making it suitable for construction sites, events and temporary pedestrian-access layouts.
Quickest Available Delivery: Quickest Available Delivery: Next Day Delivery Available
Designed for layouts where an open walkthrough does not provide enough access control, this gated crowd barrier adds a self-returning pedestrian gate to a compatible barrier run. Its red powder-coated finish makes the access point easy to identify, while the round-top frame and supporting bottom bar provide a practical structure for repeated site or event use.
- Spring-loaded gate: The hinged gate provides resistance when opened and returns towards the closed position, reducing the chance of the access point being left fully open.
- Slam plate: The gate closes against a fitted slam plate, creating a clear stopping point within the walkthrough frame.
- Supporting bottom bar: A lower horizontal bar helps hold the walkthrough frame together and distinguishes the Advanced model from the Basic open walkthrough barrier.
- Round-top frame: The curved upper section reduces the number of frame joins compared with a square-top design, limiting potential weak points around the opening.
- Hook-and-eye connections: Fittings at each side allow the walkthrough barrier to connect with compatible fixed-leg or loose-leg pedestrian barriers.
The 750mm opening provides a designated route through a temporary crowd-control layout. It can be used at construction sites, events and other managed-access areas where pedestrians need a recognisable entry or exit point.
This unit is powder coated red as standard to help distinguish the gated access point from adjoining barriers. Other listed powder-coated colours and custom colours are available, subject to product selection and confirmation. As crowd barriers are moved, stacked and transported in bulk, minor marks or surface imperfections may occur on the coated finish.
For a complete pedestrian-management setup, browse the full Crowd Control Barriers range. This gated walkthrough unit can be connected to the Fixed-Leg Crowd Control Barrier where an integrated base and repeat-use stability are preferred, or the Loose-Leg Crowd Control Barrier where easier stacking, storage and transport are more important.
Need any help? Contact HERMEQ Today.
Contact our team via phone 0800 043 2520, email sales@hermeq.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
| Material | Heavy-duty steel |
|---|---|
| Overall Height | 2,050mm |
| Overall Width | 2,235mm |
| Walkthrough Opening | 750mm |
| Tubing Diameter | 38.1mm |
| Steel Gauge | 0.9mm |
| Gate Type | Spring-loaded pedestrian gate |
| Closing Detail | Slam plate |
| Frame Design | Round-top frame with bottom bar |
| Connection Type | Hook-and-eye fittings |
| Finish | Powder coated |
| Standard Colour | Red |
| Listed Colour Options | Black, orange, blue, green, red, yellow and Kawasaki green |
| Custom Colours | Available on request |
| Compatible Barrier Types | Compatible HERMEQ fixed-leg and loose-leg pedestrian barriers |
| Suitable For | Controlled pedestrian access points within compatible crowd barrier runs |
| Not Suitable For | Vehicle-impact protection or permanent access control |
What is a walkthrough crowd barrier with a gate?
A walkthrough crowd barrier with a gate creates a designated pedestrian entry or exit point within a connected barrier run. This model includes a spring-loaded gate rather than an unrestricted open walkthrough.
What size is the walkthrough crowd barrier?
The barrier is 2,235mm wide and 2,050mm high. The pedestrian opening is 750mm wide.
Does the gate close automatically?
The gate is fitted with spring-loaded hinges that return it towards the closed position after it has been opened. Site teams should still check that the gate operates correctly and is not obstructed.
How does the walkthrough barrier connect to other barriers?
Hook-and-eye fittings at each side allow it to connect with compatible crowd control barriers. It can be used alongside HERMEQ fixed-leg and loose-leg pedestrian barriers.
What is the difference between the Advanced and Basic walkthrough barriers?
The Advanced Walkthrough Crowd Barrier includes a spring-loaded gate, slam plate and supporting bottom bar. The Basic Walkthrough Crowd Barrier has an open, ungated pedestrian passage and does not include these features.
What colours are available?
The barrier is powder coated red as standard. Listed options include black, orange, blue, green, red, yellow and Kawasaki green, with custom colours available on request. Colour availability should be confirmed when ordering.
