HERMEQ DACHWalkthrough Crowd Barrier - Basic
Product Highlights
- 750mm Open Walkthrough: Creates a clearly defined pedestrian entry or exit point without a gate.
- Round-Top Steel Frame: The curved opening reduces the number of frame joins compared with a square-top design.
- Connects into Barrier Runs: Hook-and-eye fittings allow the walkthrough to link with compatible crowd-control barriers.
SKU WB680024

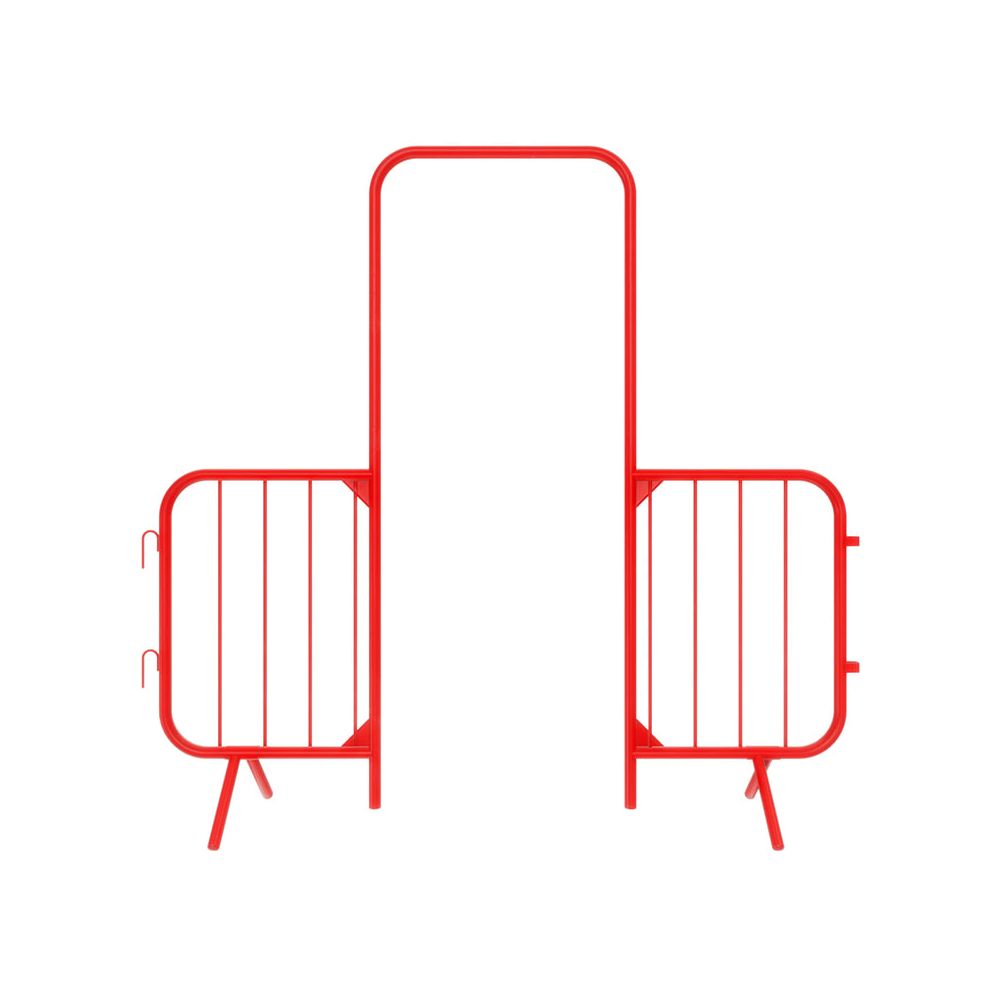

The HERMEQ Basic Walkthrough Crowd Barrier creates a clearly marked pedestrian access point within a connected crowd-control barrier run. Its open round-top frame provides a 750mm-wide walkthrough, while hook-and-eye connectors allow it to join compatible standard crowd barriers. Manufactured from heavy-duty steel, the barrier is powder coated red as standard, with alternative colours available.
Quickest Available Delivery: Quickest Available Delivery: Next Day Delivery Available
The Basic Walkthrough Crowd Barrier is designed for sites, events and public-access layouts that need a simple, visible pedestrian crossing point within a barrier line. Unlike the Advanced model, it has an open walkthrough rather than a spring-loaded gate, making it suitable where unrestricted pedestrian passage is required.
- Clearly marked access point: The central 750mm opening gives pedestrians a defined route through a crowd-control barrier run.
- Open, ungated design: Pedestrians can pass straight through without opening or closing a gate.
- Round-top construction: The curved upper frame uses fewer joins than a square-top walkthrough design, reducing potential weak points in the opening.
- Hook-and-eye connections: Fittings on each side allow the barrier to connect to compatible standard crowd-control barriers or another walkthrough unit.
- Powder-coated finish: Red is supplied as standard to make the access point easier to identify, with a range of alternative colours available.
Four supporting corner plates reinforce the walkthrough frame. The unit can be incorporated alongside compatible fixed-leg or loose-leg pedestrian barrier systems, allowing buyers to add a designated opening without replacing the surrounding barrier run.
The standard red finish helps distinguish the walkthrough from adjoining galvanised barriers. Alternative powder-coated colours can also support colour-coded routes, site zones, event layouts or company branding. Because these barriers are handled and transported in bulk, minor marks or surface imperfections may occur on powder-coated finishes.
Need a different crowd-control setup? Browse the full range of Crowd Control Barriers, or pair this walkthrough unit with the Crowd Control Barrier – Fixed Leg to create a connected pedestrian barrier run. Where more controlled access is required, compare it with the Advanced Walkthrough Crowd Barrier, which includes a gated opening.
Need any help? Contact HERMEQ Today.
Contact our team via phone 0800 043 2520, email sales@hermeq.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
Technical Specifications
| Material | Heavy-duty steel |
|---|---|
| Overall Height | 2050mm |
| Overall Width | 2235mm |
| Opening Width | 750mm |
| Steel Gauge | 0.9mm |
| Tubing Diameter | 38.1mm |
| Frame Shape | Round-top walkthrough |
| Connection Type | Hook-and-eye |
| Supporting Plates | Four corner plates |
| Standard Finish | Red powder coating |
| Finish Options | Customisable powder-coated finish |
| Listed Colours | Black, orange, blue, green, red, yellow and Kawasaki green |
| Custom Colours | Available on request |
| Compatible Barrier Systems | Fixed-leg and loose-leg pedestrian barrier systems |
| Gate Included | No |
| Bottom Bar Included | No |
| Slam Plate Included | No |
| Suitable For | Clearly marked pedestrian entry and exit points within compatible barrier runs |
| Not Suitable For | Applications requiring a gated or self-closing pedestrian access point |
What is a walkthrough crowd barrier?
A walkthrough crowd barrier is a barrier section with an opening that allows pedestrians to pass through a connected crowd-control system. This Basic model has an open central hoop rather than a gate.
How wide is the pedestrian opening?
The walkthrough opening is 750mm wide. The complete barrier is 2235mm wide and 2050mm high.
Does this walkthrough barrier include a gate?
No. This Basic model has an open walkthrough and does not include a gate, bottom bar or slam plate. For a gated option, see the Advanced Walkthrough Crowd Barrier .
How does the barrier connect to other crowd barriers?
The walkthrough is fitted with hook-and-eye connections, allowing it to join compatible standard crowd-control barriers and form part of a continuous barrier run.
Is the walkthrough barrier powder coated?
Yes. It is powder coated red as standard. Black, orange, blue, green, yellow and Kawasaki green are also listed, with custom colours available on request.
Why does the barrier have a round-top opening?
The round-top design reduces the number of joins required around the walkthrough opening compared with a square-top design. This removes potential weak points from the upper part of the frame.
Can it be used with fixed-leg and loose-leg crowd barriers?
The product is intended to fit alongside compatible fixed-leg and loose-leg pedestrian barrier systems. Connection compatibility should be checked before combining it with products from another manufacturer or range. For a compatible surrounding barrier run, see the Crowd Control Barrier – Fixed Leg .
