Armco Curved Beam

Product Highlights

  • Custom curved barrier beams - Concave or convex options for non-linear layouts.
  • Perfect for bends and turns - Ideal where straight barriers won’t fit.
  • Works with all Armco fittings - Integrates with standard posts, bolts and ends.

SKU AR133886

Curved Armco barrier beams in concave or convex profiles. Designed for routes with angles or tight turns. Compatible with all HERMEQ armco barriers and traffic protection systems.
As low as £162.50 £195.00
In stock

Quickest Available Delivery: Quickest Available Delivery: 14 Day Delivery Final shipping costs and times are calculated at checkout. Shipping address may affect available delivery methods & times.

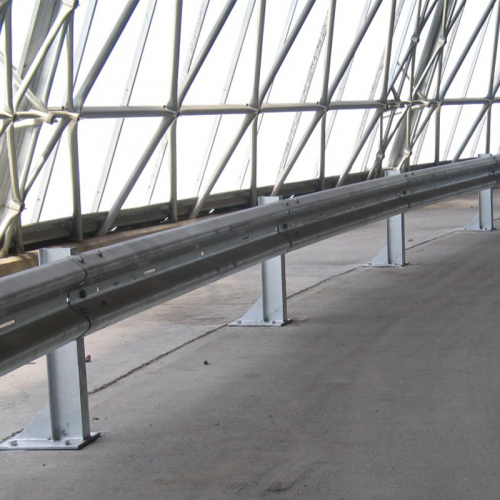

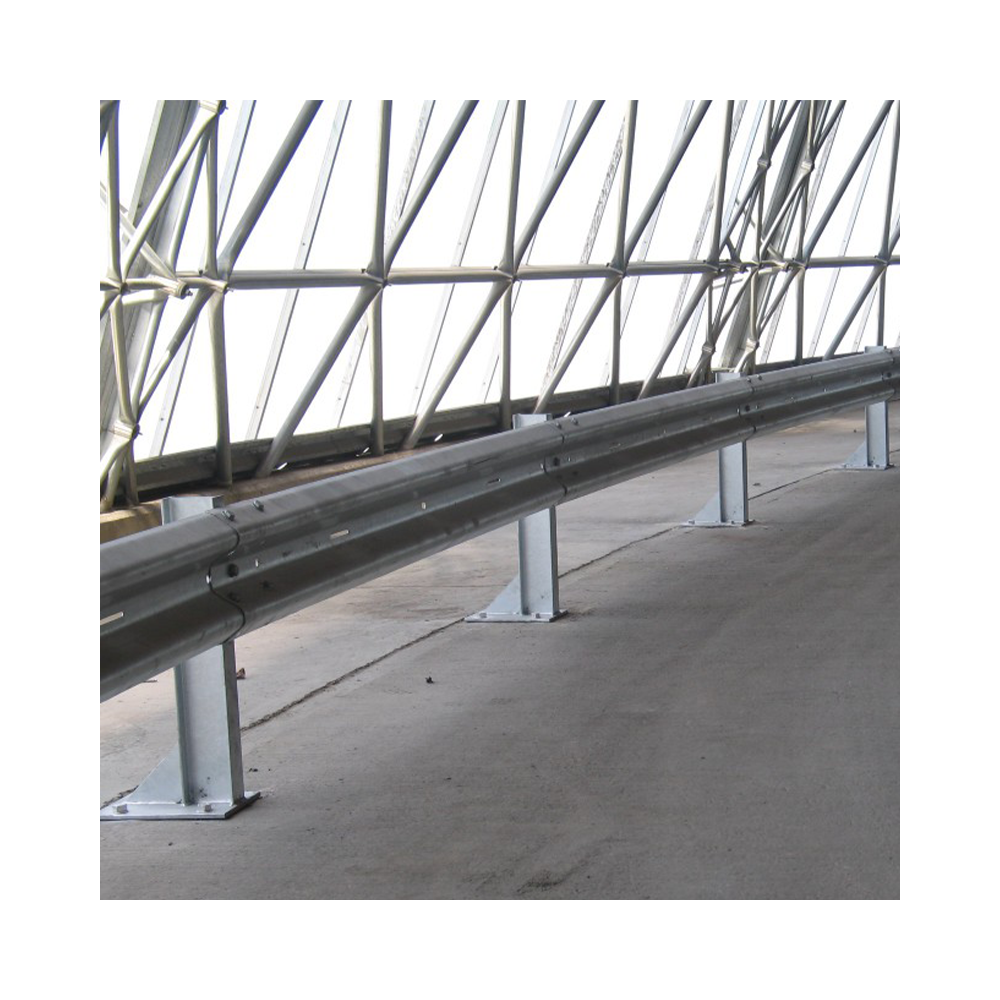

The Armco Curved Beam is a specially shaped barrier section for installations that require directional flexibility. Available in both concave (inward facing) and convex (outward facing) formats, these beams are critical for sites with corners, curved paths or complex layouts where straight beams aren’t viable. They allow full continuity in Armco systems without compromising structural integrity or protection coverage.

These curved beams are commonly used in car parks, vehicle control lanes, logistics yards and industrial perimeters with non-linear layouts. The beam can be tailored to different radii, depending on the specific project requirements. For best results, contact HERMEQ to discuss radius specifications before placing your order.

  • Concave or convex profiles – Choose the correct curvature to match your route.
  • Supports crash barrier continuity – Allows full protection around corners and bends.
  • Engineered for durability – Fabricated from crash-rated steel with galvanised finish.
  • Fixes with standard bolts – Use M16 Lap Bolts and Post Bolts across the system.
  • Pre-drilled for fast install – Aligns with all HERMEQ post types and ends.

Curved beams can be installed between RSJ Bolt-Down or Z-Posts, or with dig-in post variants, depending on your surface and layout type. Their profile allows vehicles to be guided smoothly around turns while still receiving impact protection. These beams are essential for high-traffic layouts with bends or obstacles, such as service roads or internal logistics paths.

Match your curved beams with Straight Corrugated Beams, Fish Tail Ends, Pedestrian Ends and Barrier Corners to form a complete site-safe traffic barrier system. Ensure you specify the required radius with the HERMEQ sales team when ordering.

HERMEQ stock a wide range of Armco components to support your barrier layout, including Straight Corrugated Steel Beams, Fish Tail Ends and Pedestrian Ends enabling complete site protection.

Need any help? Contact HERMEQ Today.

Contact our team via phone 0800 043 2520, email sales@hermeq.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.

  • Concave beams curve inward; convex beams curve outward—ensure correct choice.
  • Used where directional guidance and impact protection are both required.
  • Suitable for logistics facilities, car parks, gated vehicle entry routes and more.
  • Finish is galvanised to BS EN standards for corrosion protection.
  • All fixings and posts sold separately – please order to match site layout.

The Armco Curved Beam is critical in crash barrier systems where tight space, infrastructure layout or traffic direction requires a non-linear installation. Unlike rigid straight beams, these curves enable the barrier to wrap around obstacles, follow edge paths or align with internal walls. They are commonly used in projects across warehousing, public infrastructure and perimeter safety systems.

Every curved beam must be specified with a defined radius to ensure seamless fitment between posts. The HERMEQ team will work with you to define the correct specification for your order. Once in place, curved beams maintain the full impact absorption of standard beams, with continuous vehicle deflection and worker protection.

What is the difference between concave and convex beams?
Concave beams curve inward; convex beams curve outward. Select based on the direction you want the barrier to face.

How do I choose the right radius?
Contact HERMEQ to specify the turning radius required for your layout—we’ll ensure the curve fits your site plan.

Are curved beams compatible with RSJ or Z-Posts?
Yes, these beams integrate fully with all HERMEQ post types, using the same lap and post bolts.

Do I need special bolts to install them?
No, standard M16 Lap Bolts and Post Bolts are used throughout, making integration seamless.
