Product Highlights
- 90° and custom angles - Enables full barrier turns around buildings and boundaries.
- Internal and external profiles - Choose based on site geometry and impact direction.
- Maintains crash barrier continuity - Seamless integration with straight Armco beams.
Alternative Products
SKU AR133869
Quickest Available Delivery: Quickest Available Delivery: 14 Day Delivery

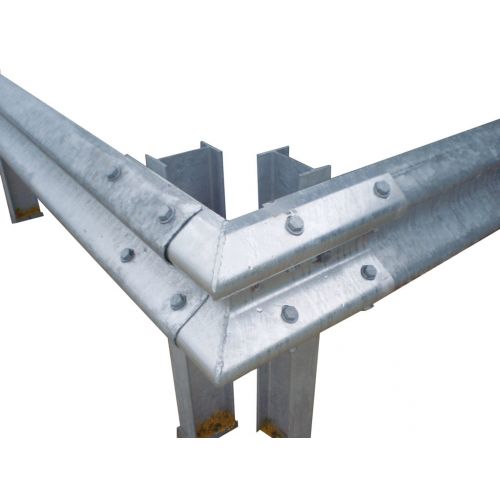

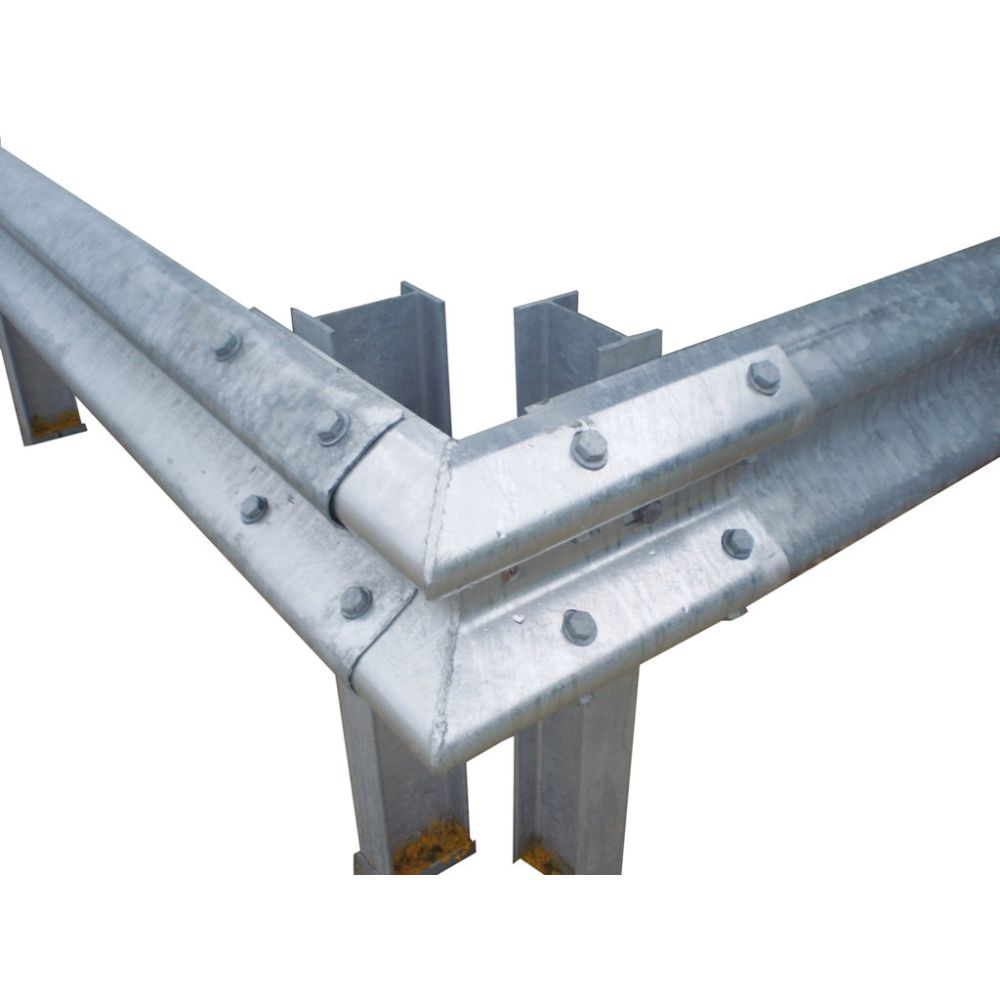

The Armco Barrier Corner allows your crash barrier system to turn at angles while maintaining strength, continuity, and protection. Designed for tight spaces or architectural boundaries, these corner units are available in both internal and external 90° profiles as standard, or can be supplied flexed to bespoke angles on request.
These components are essential for wrapping Armco systems around structures, avoiding obstacles, or protecting exposed areas at building junctions and road edges. Internal corners are used where the beam turns inward, while external versions guide traffic away from structures. Flexible versions can be shaped to your specification, supporting unique layouts.
- Precision bent – Factory-formed angles provide structural integrity and consistent fit.
- Bespoke angle options – Flexible corners available on request for non-standard layouts.
- Standard fixings apply – Use 8 x M16 x 35mm Lap Bolts per corner to connect beams.
- Crash-rated material – Formed from galvanised steel for long-lasting site protection.
- Compatible with HERMEQ system – Matches Straight Beams, Curved Beams, and post types.
Armco corners are key in creating complete barrier layouts without gaps or weak points. They are used in industrial parks, depots, car parks, and service routes to ensure consistent deflection and protection, especially at exposed corners. Where standard 90° angles do not fit, flexible corners can be made to suit turning paths or complex site plans.
Integrate these corners with RSJ Bolt-Down, Z-Posts, or Dig-In post systems depending on surface type. These corners are compatible with all HERMEQ beams and barrier accessories and require no specialist fittings.
HERMEQ stock a wide range of Armco components to support your barrier layout, including Straight Corrugated Steel Beams, Fish Tail Ends and Pedestrian Ends enabling complete site protection.
Need any help? Contact HERMEQ Today.
Contact our team via phone 0800 043 2520, email sales@hermeq.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
- Standard 90° internal and external corners available from stock.
- Flexible options supplied based on specified site angle and radius.
- Each corner connects to beams using 8 x M16 x 35mm Lap Bolts.
- Constructed from galvanised crash-resistant steel.
- Ideal for car parks, depot layouts, industrial fencing and site wraps.
Barrier corners ensure your Armco system can adapt to real-world conditions—turning sharp corners, protecting building bases or adapting to fencing requirements. With factory-formed consistency and bolt-on compatibility, they eliminate structural weaknesses that may occur with angled cuts or DIY bends. For tailored installations, HERMEQ can provide flexible corners to exact site measurements.
Standard corners provide the quickest solution for right-angle layouts, while custom versions allow architects, specifiers, and contractors to maintain safety continuity in non-linear environments. These corners are a key safety element that help ensure full crash protection across your entire barrier run.
What’s the difference between internal and external corners?
Internal corners bend inward (e.g., wrapping around the inside of a building); external corners bend outward to guide traffic away from a point.
Can I order custom angles?
Yes. We offer flexible corners formed to bespoke angles. Speak to HERMEQ to specify the correct curve.
Do I need special fixings?
No, use 8 x M16 x 35mm Lap Bolts to join each corner to adjoining beams.
Are these compatible with RSJ and Z-Posts?
Yes. All corners integrate with HERMEQ post types and barrier beams.
