HERMEQ NorwayFull Height Pedestrian Guardrail (2m x 1m) - Galvanised
Product Highlights
- Full-height galvanised panels - 2m x 1m design ideal for long-term installations.
- Infill bar options - Choose from 12mm, 16mm or 20mm solid bar models with staggered option.
- Flexible mounting methods - Rooted or baseplate-surface fix options available.
Alternative Products
SKU RA0903

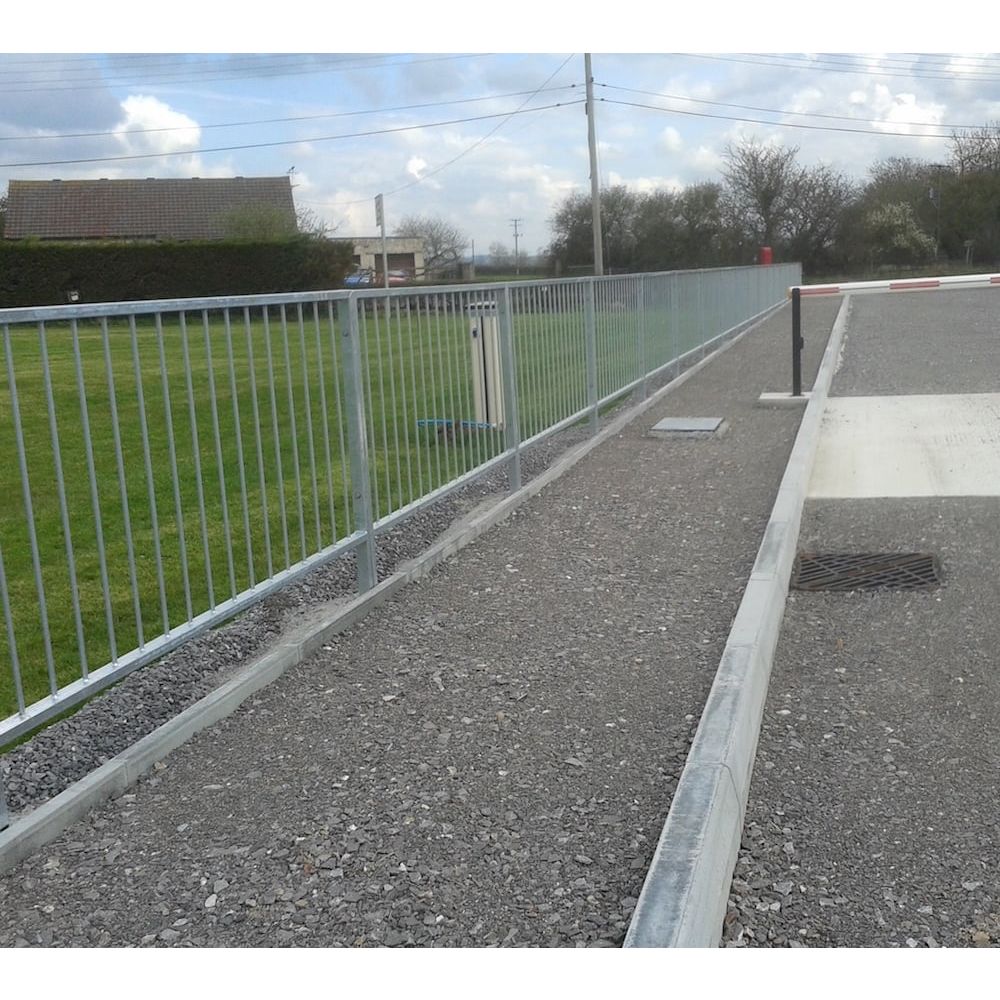

Pedestrian Guardrail panels are made 2m wide and 1m high. Each guardrail panel is bolted to the next inline, with legs concreted into the ground. All guardrail panels are hot dip galvanised to resist corrosion and ensure long-lasting outdoor performance. Powder coating is available in custom colours for specific site visibility needs.Â
Designed for durability and visibility, HERMEQ’s full height pedestrian guardrail offers a long-lasting solution for managing foot traffic on busy construction sites and urban infrastructure projects. Ideal for segregating walkways from vehicle routes, these panels are galvanised for corrosion resistance and available in a powder-coated finish for added visual impact.
The panels are supplied in 2m x 1m sizes and fixed via concreting or baseplate mounts, providing flexibility across various site terrains.
- Standardised panels - 2m x 1m modular format for ease of installation and maintenance.
- Multiple bar thicknesses - M1, R1, and N1 infill bars in 12mm, 16mm, or 20mm diameters.
- Optional powder coating - Custom colours available to meet visibility and branding needs.
- Surface or rooted mount - Offers flexibility based on site foundation conditions.
- BS EN certified - Manufactured to BS EN ISO 1461:1999 standards.
These galvanised railings offer an essential protective barrier to keep pedestrians safe around roadworks, traffic control zones, and temporary walkways. With their robust steel build and hot dip galvanised coating, they provide excellent corrosion resistance and are suitable for permanent or semi-permanent use. Optional powder coating enhances visibility, especially useful in urban council projects or works near schools and public transport zones.
Available in multiple infill bar sizes, this pedestrian guardrail system can be tailored for both security and aesthetic requirements. Whether placed along pedestrian crossings or on construction perimeters, their modular design allows for seamless extension or reconfiguration as site demands evolve.
Unlike traditional fencing, these pedestrian railings are specifically engineered to guide foot traffic and prevent accidental encroachment into vehicular spaces. The option for staggered infill further reduces sightline gaps, making them highly effective in high-density footfall areas such as retail zones and event venues.
Need any help? Contact HERMEQ Today.
Contact our team via phone 0800 043 2520, email sales@hermeq.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
Full height pedestrian railings are used extensively by councils, transport agencies, and construction contractors for site demarcation and pedestrian control. Their galvanised finish ensures longevity in harsh weather conditions, while optional powder coating helps signal danger zones or direct foot traffic more clearly.
Common uses include:
- Traffic light junctions and pedestrian crossings
- Construction site perimeters and walkways
- Temporary or permanent school safety fencing
- Local authority infrastructure upgrades
As standard, each panel uses a 50x30mm RHS frame and stands approximately 1050mm above ground level once installed. Ground conditions can be managed with either full-length rooted posts or surface-mounted baseplates.
Railings can be supplied in special lengths or custom radius/rake configurations to suit sloped roads or uneven terrain. Staggered bar infill options are ideal for reducing visual interference while still maintaining strong barrier integrity.
Finishes conform to BS EN ISO 1461:999 and BS EN 13483:2005 for quality and safety. All materials are designed with high visibility and worker/public protection in mind.
Models Available:
M1 – 12mm diameter solid infill bar
R1 – 16mm diameter solid infill bar
N1 – 20mm diameter solid infill bar
Prefix above models with S for staggered infill bar
Standard Pedestrian Guardrail have a 50x30mm rectangular hollow section (RHS) frame, and are supplied in standard bay sizes of 2m and 1m and they stand nominally 1050mm above ground level. Special lengths, radiused and raked panels can also be provided to cater for locations that have a road or pathway incline or decline to consider.
All pedestrian guardrail have full length posts to be concreted in (rooted), however, all of our guardrail can be provided with baseplates for surface mounting.
The basic finish is hot dipped galvanized to BS EN ISO 1461:999 with options for a polyester powder coated finish available (to BS EN 13483:2005)
What sizes are available for the pedestrian guardrails?
Each panel is 2m wide and 1m high, with a standing height of 1050mm above ground once installed.
Can I install the railings on a sloped surface?
Yes, radiused and raked versions are available to accommodate gradients or curved routes.
Are baseplate mounting options available?
Yes. While full-length rooted posts are standard, baseplates can be provided for surface mounting where digging is impractical.
Is powder coating included?
Powder coating is optional and offered in various colours to meet site visibility or branding needs. Standard finish is galvanised steel.
