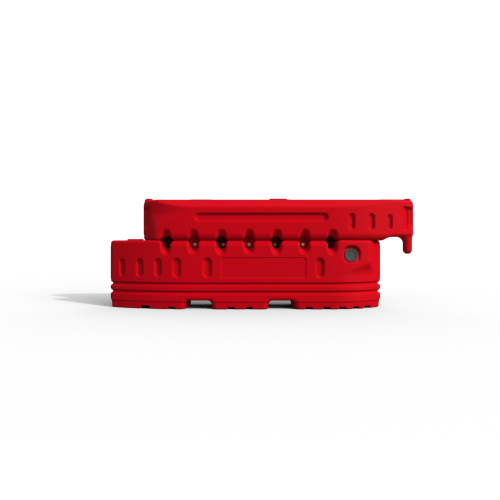

City Wall Crash Tested (25 Mph) Water Filled Barrier

In stock

SKU WF703810

As low as £116.84 £140.21

Quickest Available Delivery: 5 Days



This crash tested water filled barrier delivers 25mph impact resistance, making it ideal for live traffic sites and critical infrastructure works. With a 2m width and support for mesh fencing extensions, it offers full-height protection for road crews and pedestrians. Featuring hook-and-eye connections and 250L water ballast capacity, it ensures strength, stability, and safe traffic redirection across all worksite conditions.

Product Highlights

  • Crash tested to 25mph – Certified protection with minimal deflection for temporary road safety.
  • 2m wide body – Efficient perimeter coverage with fewer units needed per run.
  • Compatible with 2m fence extensions – Build complete high-impact barrier walls.
Details

Details

Engineered for temporary road safety and tested to withstand impacts at 25mph, the HERMEQ City Wall Barrier provides unrivalled protection for construction and infrastructure zones. It’s designed to replace heavier alternatives with a more mobile, stock-ready crash tested unit that doesn’t compromise on performance.

Each 2m wide unit is stackable and can be filled with up to 250 litres of water for ballast. Its innovative hook-and-eye locking system supports curved or linear setups with angular movement up to 280°, while still maintaining connection integrity and crash compliance.

  • Crash certified at 25mph – Tested with fence panel fitted, suitable for high-risk roadside setups.
  • 250L water capacity – Ensures superior ballast for reliable on-site deployment.
  • Custom branding – Optional colour and logo options for contractor identification.
  • Rapid deployment – Stock available with 400 units produced daily to meet urgent demand.
  • Minimal deflection – Even in short 50m test runs, impact force is managed within safe tolerances.

This barrier is used on high-speed roads, major construction zones, and live public works areas where passive vehicle protection is essential. Its modular form simplifies transport, while the high crash rating enables flexible deployment without requiring concrete.

Wherever large-scale protection is required—airports, highways, city centres, or infrastructure overhaul zones—the City Wall barrier delivers compliance-ready safety. Unlike many barriers in its class, it remains crash-certified even with fencing panels installed, allowing a complete 2m high visual and physical deterrent without added risk.

Additional Details

Additional Details

  • Certified to 25mph crash standards – Tested for vehicle deflection and connection stability.
  • Interlocking design – Creates continuous site perimeters, ideal for long road runs or internal compounds.
  • Modular compatibility – Integrates with RB22, RB2000, and GB2 units.
  • Eco-conscious build – Manufactured in a closed-loop, zero-landfill production process.

This water filled traffic barrier is also used in conjunction with TVCB concrete barriers where additional physical resistance is required. While concrete offers unmatched resistance, the City Wall provides similar protection with improved manoeuvrability, faster delivery and safer handling.

When space is restricted or traditional safety fencing doesn’t meet standards, this unit offers the crash-tested reassurance and visual separation critical to road crews, site operatives and contractors working under pressure.

Specifications

Specifications

Crash certification - Impact tested at 25mph

Overall length - 2295mm

Working length - 2040mm

Height - 800mm

Height with fence - 2000mm

Depth - 350mm

Weight (empty) - 21.5kg

Weight (filled) - 271.5kg

Ballast capacity - 250 litres (water-filled)

Connection type - Hook & eye (280° flexible)

Custom colours/branding - Available on request

FAQs

FAQs

What does crash tested at 25mph mean?
It means the barrier has been tested under controlled conditions to withstand a vehicle impact at 25mph. It passed deflection and connection integrity checks post-collision.

Can these barriers be used with fencing panels?
Yes. They are crash tested even when a fencing extension is attached — allowing you to reach a full 2m barrier height safely.

Are the barriers stocked for next-day delivery?
Yes, we typically hold them in stock for immediate shipment across the UK.

What’s the benefit of water filled vs concrete barriers?
Water-filled barriers are easier to transport, install and reposition. They’re ideal for temporary works where flexibility and crash protection are both required.
