HERMEQ NorwayMesh Fence Feet Stabilised Locking System
Product Highlights
- Anti-Trip Design - Minimises hazards for pedestrians with compact footprint.
- Multi-Surface Compatibility - Works with soil, concrete, and asphalt sites.
- Wind-Resistant Brace - Reinforces mesh fencing against strong gusts.
Alternative Products
SKU A105558

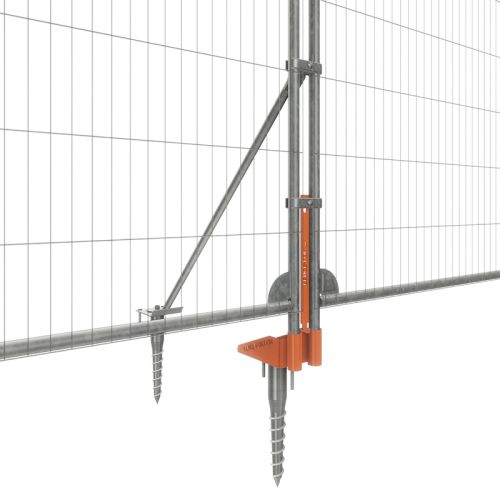

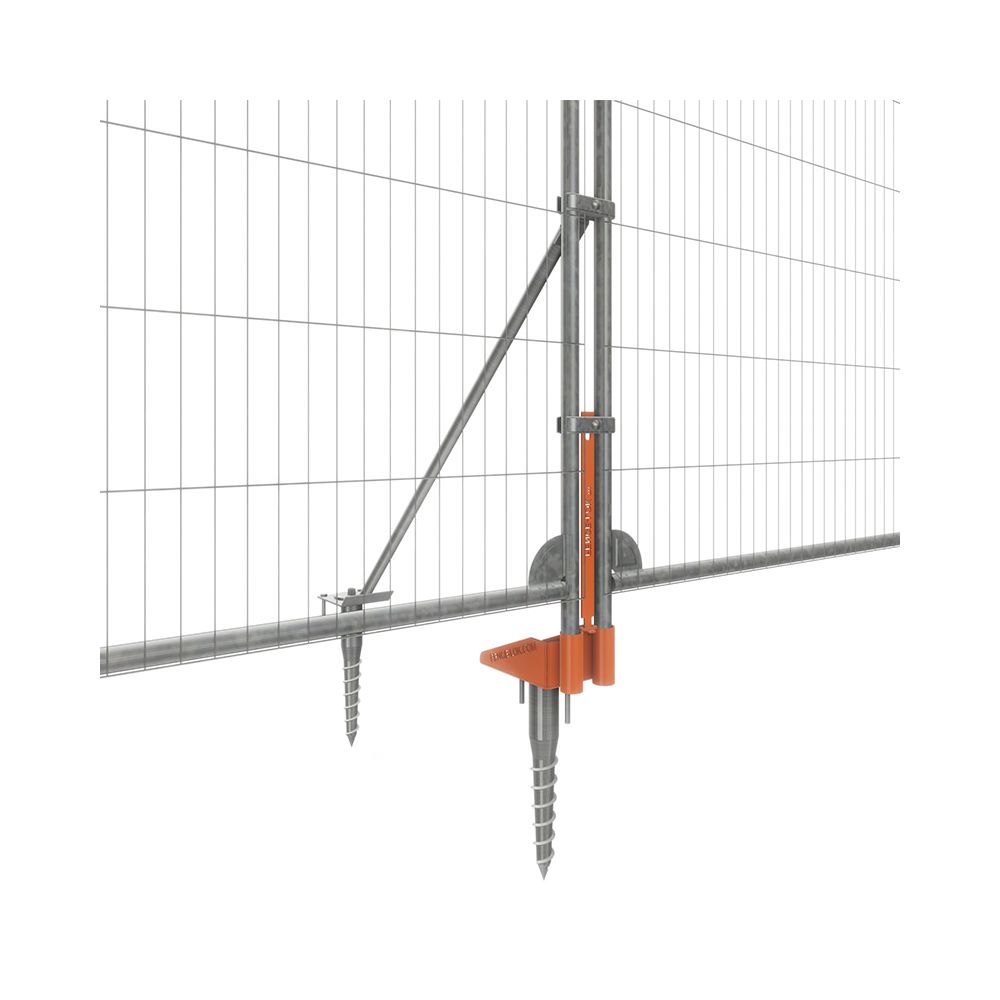

A stabilised fence locking system located at the feet of mesh fence panels. Utilising its stabilising brace, this locking system has high wind resistance and offers secure fence locking for soil, concrete and asphalt. Removable and reusable, the anti-trip design prevents accidents due to its compact form. Includes fence bracket, locking strap, stabiliser brace, and your choice of fixing: soil, concrete or asphalt.
Quickest Available Delivery: Quickest Available Delivery: 3 Day Delivery
Designed for use with temporary fencing systems, HERMEQ’s Mesh Fence Feet Stabilised Locking System ensures stability in demanding outdoor conditions. It improves safety and performance by anchoring mesh fencing panels securely to soil, concrete, or asphalt surfaces using the appropriate fixing set. The system’s anti-trip design reduces risk in pedestrian zones and helps meet site safety compliance.
This durable, reusable mesh fence locking system features a brace that enhances resistance to high winds, making it an essential for weather-exposed construction and event sites. Installation is fast and tool-friendly.
- Secure Mesh Fence Anchoring – Protects fencing from wind displacement and tampering.
- Compact and Portable – Minimises trip risks and simplifies logistics.
- Wind-Resistant Structure – Stabilising brace ensures dependable use in exposed zones.
- Multi-Use Fixings – Choose from soil, concrete or asphalt anchoring options.
- Reusable Design – Disassemble and relocate without structural wear.
HERMEQ’s stabilised mesh fence locking system transforms standard temporary fencing into a robust, anchored security line for varied terrains. Whether in urban redevelopment zones, greenfield infrastructure projects or pop-up event spaces, this mesh fencing system adds reliability and regulatory compliance to any perimeter solution.
The integrated brace adds tension and rigidity to the fence line, distributing pressure during wind loads and minimising panel movement. The anti-trip footprint is particularly valuable in high foot-traffic areas such as event queues, retail loading bays or housing projects under construction.
Its component-based kit makes it simple to transport and install. The fixing options cater to your site’s surface: galvanised ground screws for soil, threaded concrete screws for slab foundations, and asphalt anchors combined with resin for secure installation in softer pavement materials.
This locking system is engineered with a long life cycle, allowing repeated redeployment between projects. Combined with HERMEQ’s broader fencing ecosystem, it forms part of a scalable, reliable temporary fencing setup that’s easy to maintain and install. No power tools or advanced fixings are required — the unit is supplied ready for deployment.
HERMEQ stock a wide-range of Accessories, Temporary Fencing, Mesh Fencing & Permanent Fencing conforming to all required safety specifications and regulations.
Need any help? Contact HERMEQ Today.
Contact our team via phone 0800 043 2520, email sales@hermeq.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
For environments where temporary fencing is not enough on its own, HERMEQ’s mesh fence locking system provides crucial stability and peace of mind. From windy coastal builds to urban concrete sites, this all-terrain solution offers a secure foundation to support mesh fencing panels without compromising pedestrian safety.
Each kit includes:
- Fence Bracket – Powder-coated, 290mm x 180mm x 120mm, 4.5KG
- Locking Strap – 35mm x 460mm x 5mm, 0.5KG
- Stabilising Brace – Zinc plated, 1520mm x 160mm x 120mm, 5KG
- Fixing Options:
• Soil: 2x flanged ground screws, 530mm, hot-dip galvanised
• Concrete: 4x M12 concrete screws, zinc plated
• Asphalt: 4x M12 anchors with resin, metal-threaded core
Popular applications include:
- Construction perimeters – Anchor mesh fencing against collapse and theft risks.
- Public events – Reduce trip hazards and meet insurance standards.
- Transport hubs – Demarcate zones securely across tarmac and mixed terrain.
- School or utility upgrades – Protect work zones and restrict access in community settings.
Unlike traditional concrete blocks or sandbags, this system delivers stability without bulk, ensuring easier transport and faster deployment. Ideal for use with HERMEQ panels, this fence locking system enhances both safety and lifespan of temporary fencing assets.
- Open Mesh Bracket: Powder Coated – 4.5KG – 290mm x 180mm x 120mm
- Locking Strap: Powder Coated – 0.5KG – 35mm x 460mm x 5mm
- Stabilising Brace: Zinc Plated – 5KG – 1520mm x 160mm x 120mm
- Soil Fixing: Galvanised – 3KG – 530mm x 150mm x 68mm
- Concrete Screw: Zinc Plated – 0.1KG – M12
- Asphalt Anchor: Zinc Plated – 0.1KG – M12
What’s included in the mesh fence locking system?
Each kit includes a bracket, strap, stabilising brace and fixings for soil, concrete, or asphalt deployment.
Can this locking system be reused?
Yes. All components are durable and designed for reuse across projects. Easily disassemble and relocate.
What surfaces can this be installed on?
It supports soil (ground screws), concrete (M12 screws), and asphalt (M12 resin anchors).
Does it help prevent wind damage?
Absolutely. The stabiliser brace strengthens mesh fencing panels to withstand high wind exposure on open sites.
