HERMEQ GermanyTrench Sheets - Standard Lap - Rerolled
Product Highlights
- 3.5mm S275JR steel - Cold-rolled trench sheets built for strength and easy handling.
- Lengths 1.0m to 6.0m - Overlapping trench sheeting for versatile excavation support.
- UK-manufactured - Delivered next day from HERMEQ's national depot network.
Alternative Products
SKU TR2321

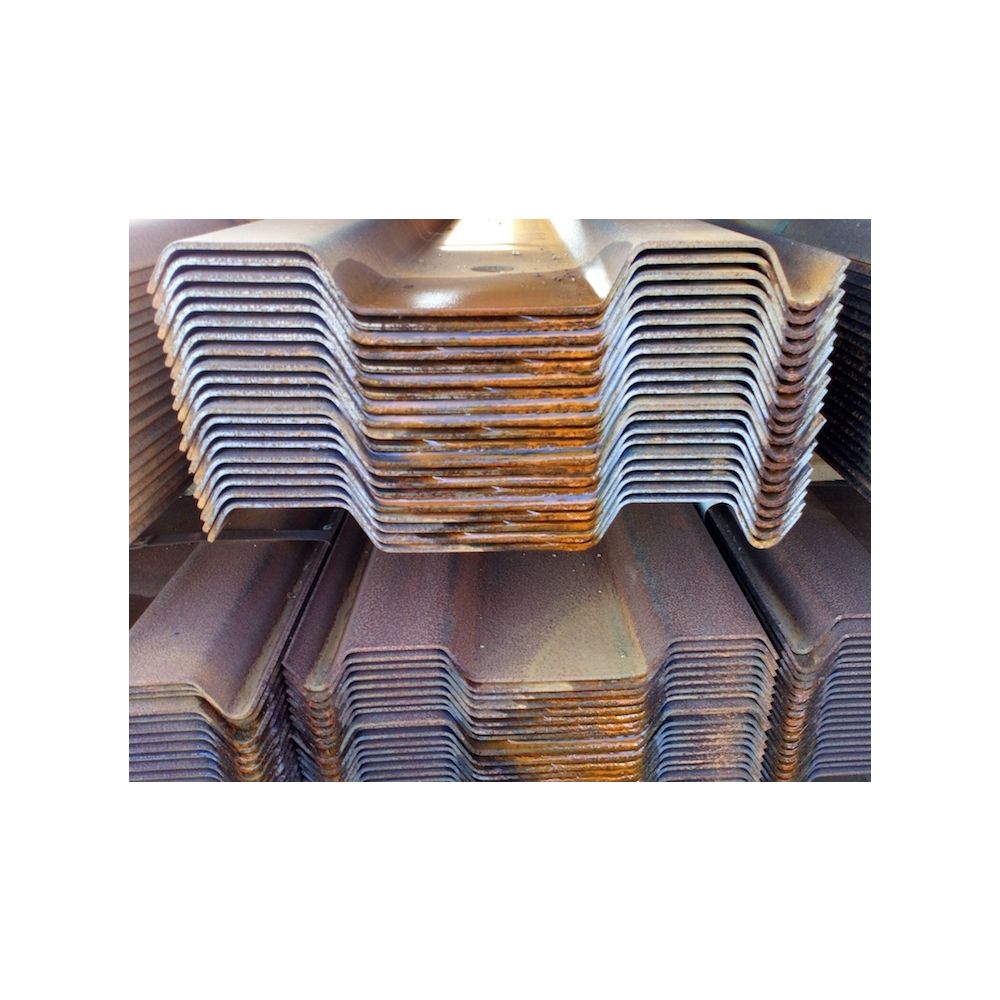

HERMEQ’s 3.5mm standard lap trench sheeting offers reliable ground retention for temporary works. Manufactured in the UK from S275JR steel, these overlapping trench sheets come in lengths from 1.0m to 6.0m and include lifting holes for safe handling. Ideal for shoring during excavation, they’re cold-rolled for strength and supplied nationwide via HERMEQ’s depot network.
Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery
Designed for use with excavator-mounted buckets or frames, the sheets slot into position vertically to stabilise trench walls. With full UK manufacturing and a next-day delivery service, HERMEQ ensures you have immediate access to stock at the scale your project requires. These trench sheets are used extensively by groundwork contractors where rapid deployment and reliability are critical.
- 1.0m–6.0m sizes – Flexible lengths to suit deep or shallow excavations and utility access.
- S275JR material – Stronger yield strength than standard S235, increasing load resistance.
- Cold-rolled profile – Enhanced strength-to-weight ratio and consistent shape quality.
- Handling holes – Easy lifting and positioning with standard mechanical installation.
- High capacity output – HERMEQ manufactures up to 60 tonnes of trench sheeting daily.
The overlapping trench sheet design is suitable for trench stabilisation, ground support and temporary retaining walls. Each sheet pile is produced from slit coil, cold-formed and cropped for precise dimensions using HERMEQ’s in-house tooling. The profile ensures alignment and support across a wide range of site conditions.
These sheets can be hydraulically driven, vibrated, or pushed using standard site machinery. When combined with HERMEQ guide walings and fall prevention accessories, trench works become safer, faster and fully compliant. Thanks to HERMEQ’s depot network, delivery lead times are short — even for bulk orders.
HERMEQ stock a wide-range of Trench Sheets, Groundworks, Trench Covers & Road Plates conforming to all required safety specifications and regulations.
Need any help? Contact HERMEQ Today.
Contact our team via phone 0800 043 2520, email sales@hermeq.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
• Utility trenching and pipe laying
• Road and rail infrastructure builds
• Temporary excavation and ground support
• Perimeter retaining in civil engineering
Applications:
These steel sheet piles are designed for UK sites requiring temporary excavation stabilisation. With a simple overlapping connection, they are ideal where speed of installation is key. Their S275JR composition provides a superior yield strength over conventional trench sheets, improving stability in challenging conditions.
Each trench sheet includes lifting holes for easier on-site handling, while the cold-rolled structure ensures precise dimensions and consistent performance. Manufactured entirely in the UK, HERMEQ controls every stage from steel coil to finished sheet, delivering quality and compliance.
From groundwork trenching to utility corridor protection, trench sheeting supports safer excavation environments. These sheets can be installed using excavator buckets or driving equipment and removed post-project with minimal disruption.
| Effective Width | 330mm |
| Depth | 34.5mm |
| Thickness | 3.5mm |
| Weight | 11.3kg per meter |
| Cross sectional area per sheet | 15.0cm2 |
| Steel grade | S275JR |
What are trench sheets used for?
Trench sheets support soil in excavations to prevent collapse and ensure worker safety during groundworks and infrastructure projects.
What lengths are available?
HERMEQ trench sheets are available from 1.0m to 6.0m. Other lengths may be available on request.
Can these trench sheets be reused?
Yes. They are designed for temporary use and can be extracted using suitable equipment for reuse on future projects.
How are overlapping trench sheets installed?
They are driven vertically using excavator buckets, vibratory hammers, or pushed hydraulically depending on ground conditions.
