HERMEQ Germany3 Step Tray Trolley
Product Highlights
- Available in standard or heavy duty – Choose the build to match your site load needs.
- Multiple tray formats – Fixed, removable, reversible or basket options included.
- 3-step access with stability treads – Ribbed rubber treads ensure firm footing at all times.
SKU LA318050

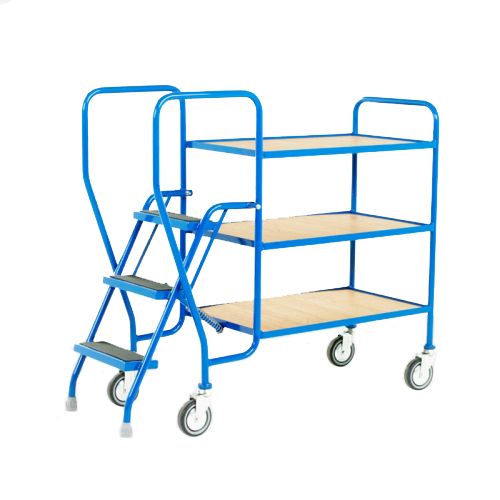

This 3 step tray trolley is a compact solution for warehouse picking and storage. Designed for efficient mobility, it combines fixed steps with either two or three integrated trays. Ideal for use in commercial steps environments, this unit bridges the gap between trolley steps, mobile stairs, and rolling steps for safe, stable access.
Quickest Available Delivery: Quickest Available Delivery: 8 Week Delivery
Combining convenient access with built-in load capacity, the 3 Step Tray Trolley is a flexible solution for light to medium-duty tasks across warehousing, logistics and commercial storage. Its compact footprint and smooth manoeuvrability make it suitable for narrow aisles and stock areas, providing safe elevated access with secure tray storage.
Key Features & Benefits
- Tray flexibility – Options include steel trays, plywood shelves, wire baskets or reversible trays with lip or flush finish.
- Heavy Duty version available – Built to handle up to 175kg with roller-bearing castors for smoother operation.
- Step safety built in – Fitted treads and ground contact via rubber feet make each step stable during use.
- High mobility castor setup – Standard: 4 swivel castors; Heavy Duty: 2 swivel, 2 fixed for enhanced control.
- Compact yet capable – Works well in confined commercial steps areas while offering access and transport in one unit.
Constructed from welded RSA angle and ERW tube and powder coated in a durable blue epoxy finish, this step tray trolley is offered in both Standard (125kg capacity) and Heavy Duty (175kg capacity) formats. All steps are fitted with ribbed rubber treads for slip-resistant use and come supported by rubber feet for additional floor grip.
HERMEQ stocks a wide-range of Steps & Access, Ladders & Stairways, Handling Equipment, and Foot Ramps & Trench Covers conforming to all required safety specifications and regulations.
Need any help? Contact HERMEQ Today.
Contact our team via phone 0800 043 2520, email sales@hermeq.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
Standard Trolleys
Tray Type | Tray Height | H x W x L | Maximum Load Capacity |
|---|---|---|---|
| Fixed Blue Tray | 920mm | 1150 x 495 x 1325mm | 125kg |
| Fixed Plywood Shelf | 920mm | 1150 x 495 x 1325mm | 125kg |
| Reversible White Tray | 920mm | 1150 x 495 x 1325mm | 125kg |
| Removable Basket | 1060mm | 1150 x 495 x 1325mm | 125kg |
Heavy Duty Trolleys
Tray Type | Tray Height | H x W x L | Maximum Load Capacity |
|---|---|---|---|
| Fixed Blue Tray | 955mm | 1070 x 475 x 1325mm | 175kg |
| Fixed Plywood Shelf | 955mm | 1070 x 475 x 1325mm | 175kg |
| Reversible White Tray | 955mm | 1070 x 475 x 1325mm | 175kg |
| Removable Basket | 1095mm | 1095 x 475 x 1325mm | 175kg |
What’s the difference between standard and heavy duty models?
Standard models hold up to 125kg with 4 swivel castors. Heavy Duty models support 175kg and include fixed castors for added control.
Can I remove the trays?
Yes, removable and reversible trays are available with lip or flush edge finishes.
Does this function like warehouse steps?
Yes, the fixed ribbed treads and secure build allow safe step access in commercial and warehouse areas.
What type of castors are fitted?
All trolleys use 125mm diameter wheels. Heavy Duty versions include roller-bearing castors for smoother handling.
