HERMEQ DACHEcho Barrier Generator Enclosure
Product Highlights
- Generator-specific enclosure - Reduces up to 38.5dB of noise and absorbs 97% from power equipment.
- Modular and lightweight - Aluminium frame design allows partial, full, or screen configuration.
- Extreme resistance rating - Fire, water, UV, and cold tested from -40°F to 158°F operation.
SKU AB113011

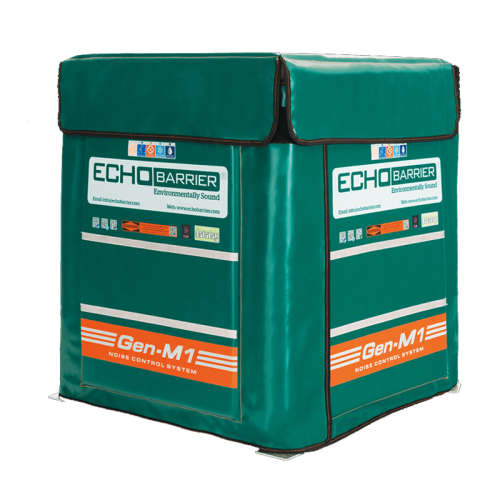

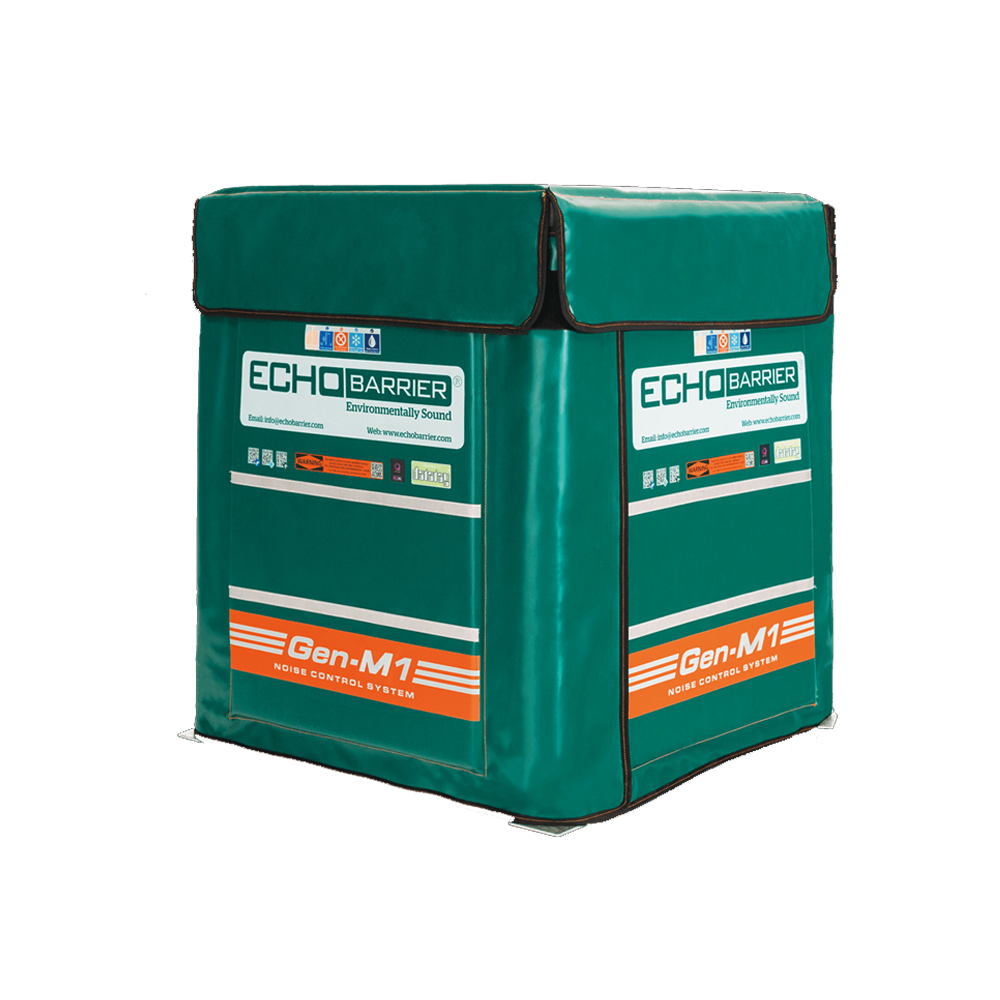

The Echo Barrier Generator Enclosure is a portable generator acoustic enclosure for small generators and site power units. Designed for easy deployment, storage and portability the echo barrier generator enclosure is made from a lightweight aluminium frame. Reduces up to 38.5dB of noise and absorbs up to 97%. Dimensions: 1250 x 1050 x 1050mm (H x W x L) | Total Weight: 25.5KG
The Echo Barrier Generator Enclosure is a generator acoustic enclosure designed for small generators and temporary site power units. It helps contractors control generator noise in construction, utilities, infrastructure and maintenance environments where surrounding workers, pedestrians or nearby properties may be affected by excess sound.
Its lightweight foldable aluminium frame makes the enclosure easy to deploy, move and store between jobs. The acoustic barrier system combines a durable PVC outer layer, a sound-absorbent composite core and a breathable inner membrane to help reduce generator noise while remaining practical for temporary site use. This makes it a strong fit for urban projects, roadside works and compact working areas where noise control matters.
- Noise reduction up to 38.5dB - Contains and controls loud generator output on site.
- 3-in-1 acoustic composition - PVC shell, sound-absorbent core, and weatherproof membrane.
- Lightweight aluminium structure - Enables rapid setup and repositioning by a single person.
- Compliant with site safety standards - BSEN 60529:1992, BS 7837-1996, and more.
- Portable and weatherproof - Designed for site mobility and year-round outdoor use.
This acoustic fencing product gives site managers an immediate tool for noise management. Its portability, reduced storage footprint, and straightforward deployment mean generator zones can be quickly isolated from public or worker areas without permanent fixtures. Ideal when acoustic noise barrier solutions must also be space-efficient and simple to use.
Especially effective in confined or temporary zones, the generator enclosure addresses urban nuisance controls, public works mitigation and worker safety standards simultaneously. It shields surrounding environments from auditory disturbance while enabling full generator access and ventilation.
HERMEQ stock a wide-range of Crowd Control Barriers, Traffic Barriers, Rope Barriers & Expandable Barriers conforming to all required safety specifications and regulations. Lightweight, easy to use & made with premium quality materials in the UK!
Need any help? Contact HERMEQ Today.
Contact our team via phone 0800 043 2520, email sales@hermeq.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
Developed specifically for compact generator noise control, this acoustic fence panel enclosure adds targeted sound suppression for temporary sites. It’s perfect for projects involving roadworks, urban regeneration, utility upgrades or facility refits — anywhere small power units produce high-volume output.
The modular build comprises two side panels and a removable roof section, offering fast tool-free setup. Internally, each barrier features a 3-part layered structure: a durable outer skin, sound-absorbent middle layer, and sealed breathable membrane to ensure long-term acoustic integrity without moisture ingress.
The configuration flexibility makes this product superior to standard acoustic fencing — site operators can position panels around the generator without dismantling adjacent kit or power lines. Optional screen-only or semi-closed setup ensures continuous access for refuelling and inspection without full disassembly.
Its compact footprint (1250 x 1050 x 1050mm) and light aluminium framing (total 25.5KG) mean this unit travels easily, and is frequently deployed for reactive maintenance or rapid-response utility teams. It is tested to BSEN 60529 and BSEN 60068 resistance standards for ingress, cold and UV — allowing long-term exposure.
Whether for acoustic barriers during city rail upgrades or emergency repairs at hospitals and service hubs, this unit helps keep operations quieter, compliant, and more acceptable to nearby communities.
| Height | Width | Weight |
| 1250mm | 1050mm | Barrier: 13KG Frame: 12.5KG Total Weight: 25.5KG |
| Max Noise Reduction (Lab tested) | 38.5dB |
| Max Noise Absorption (Lab tested) | 97% |
| Water Resistant Test Standard | BSEN 60529:1992 IPX6 / IPX9 |
| Fire Resistant Test Standard | BS 7837-1996 |
| Dust Resistant Test Standard | BSEN 60529:1992 |
| Cold Resistant Test Standard | BSEN 60068/2/1:2007 (-40 degrees) |
| UV Resistant Test Standard | 5 Years |
What is the Echo Barrier Generator Enclosure used for?
It is used to reduce noise from small generators and temporary site power units on construction, utility, maintenance and civil works projects.
How much noise reduction does the enclosure provide?
The enclosure delivers noise reduction of up to 38.5dB and absorbs up to 97% of sound, helping control generator noise in temporary work areas.
Is the generator acoustic enclosure portable?
Yes. It uses a lightweight foldable aluminium frame, making it easier to deploy, reposition and store between jobs.
Can it be used outdoors on site?
Yes. The enclosure is designed for temporary outdoor use and is built with weather-resistant acoustic materials suited to demanding site conditions.
What types of projects is this enclosure suitable for?
It is well suited to construction sites, roadside works, utilities projects, maintenance operations and other temporary environments where generator noise needs to be controlled.
