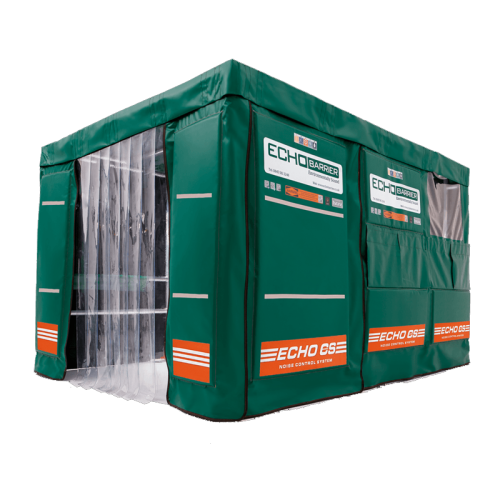

Echo Barrier Enclosure

SKU
AB113008
A portable high quality acoustic barrier enclosure that contains noise within smaller work areas. Designed to minimise noise from all sides when cutting activities are performed the Echo Barrier Enclosure reduces noise up to 43dB (Compact) and 38.5dB (Large) and prevents debris from spreading whilst cutting jobs are performed. The enclosure is water, fire and dust resistant with UV resistance to BSEN standards. Quick to install the enclosure comes with wheels to support portability around site. Temperature resistant from -40° F to 158° F. Can be used indoors. Available in 2 types: Compact or Large.
As low as £4,312.50 £5,175.00
In stock

Quickest Available Delivery: Quickest Available Delivery: 3 Day Delivery Final shipping costs and times are calculated at checkout. Shipping address may affect available delivery methods & times.



Perfect for reducing noise in smaller work areas where cutting activities occur this echo barrier enclosure ensures workers and pedestrians are kept safe from falling debris and loud noises in area where construction work is ongoing. Reducing noise up to 43dB (Compact) and 38.5dB (Large) the echo barrier enclosure also absorbs almost 100% of sound at 400-500Hz across a wide range of frequencies.

Fire, water, dust and weather resistant the echo barrier enclosure doesn’t falter in hot sun with its UV resistant coating, perfect for maintaining heat levels in hot weather whilst also retaining the vibrant colour of the echo barrier enclosure. The barrier still excels even in cold or wet weather due to its frost resistance from -40° F.

Due to its well-designed frame the echo barrier enclosure can be used indoors with an intricate roof and clear windows for safe supervision. IT has fully configurable opening panels that allow it to be adjusted depending on usage and boasts a large clear entrance that will allow workers to walk past through with ease.

Echo Barrier Enclosure - Large

A large version of the echo barrier enclosure that absorbs and reduces noise, minimising risk for pedestrians and workers. Max noise reduction is 38.5dB and max noise absorption is 89%.

Echo Barrier Enclosure - Compact

A smaller version of the echo barrier enclosure that is more proficient in reducing and absorbing noise due to its smaller frame. Max noise reduction is 43dB with 100% noise absorption.

Product Features:

  • UV & Frost resistant from -40° F to 158° F.
  • Water, fire and dust resistant
  • Can be used indoors
  • Reducing noise up to 43dB (Compact) and 38.5dB (Large)
  • Absorbs almost 100% of sound at 400-500Hz

Product Specifications - Large

HeightWidthLengthWeight
2100mm2400mm3250mm136KG
Max Noise Reduction (Lab tested)38.5dB (in all directions)
Max Noise Absorption (Lab tested)89% (in all directions)
Water Resistant Test StandardBSEN 60529:1992 IPX6/IPX9
Fire Resistant Test StandardBS 7837-1996 (barriers), class B1 (windows/roof)
Dust Resistant Test StandardBSEN 60529-1992
Cold Resistant Test StandardBSEN 60068/2/1:2007 (-40 degrees)
UV Resistant Test Standard5 Years

Product Specifications - Compact

HeightWidthLengthWeight
2100mm2400mm2400mm136KG
Max Noise Reduction (Lab tested)43dB (in all directions)
Max Noise Absorption (Lab tested)100% (in all directions)
Water Resistant Test StandardBSEN 60529:1992 IPX6/IPX9
Fire Resistant Test StandardBS 7837-1996, ASTM E84, EN 13501-1:2018 (barriers), class B1 (windows/roof)
Dust Resistant Test StandardBSEN 60529:1992 IP4X / IP5X
Cold Resistant Test StandardBSEN 60068/2/1:2007 (-40 degrees)
UV Resistant Test Standard5 Years
