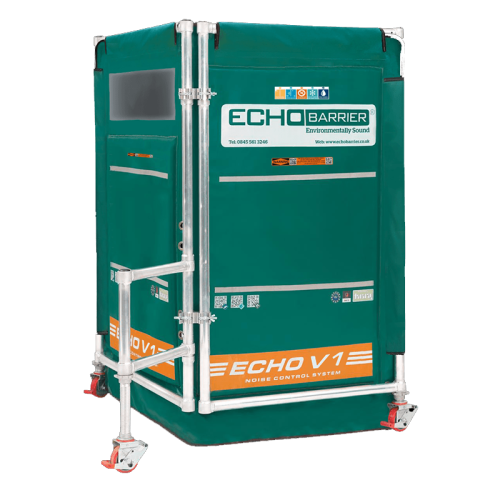

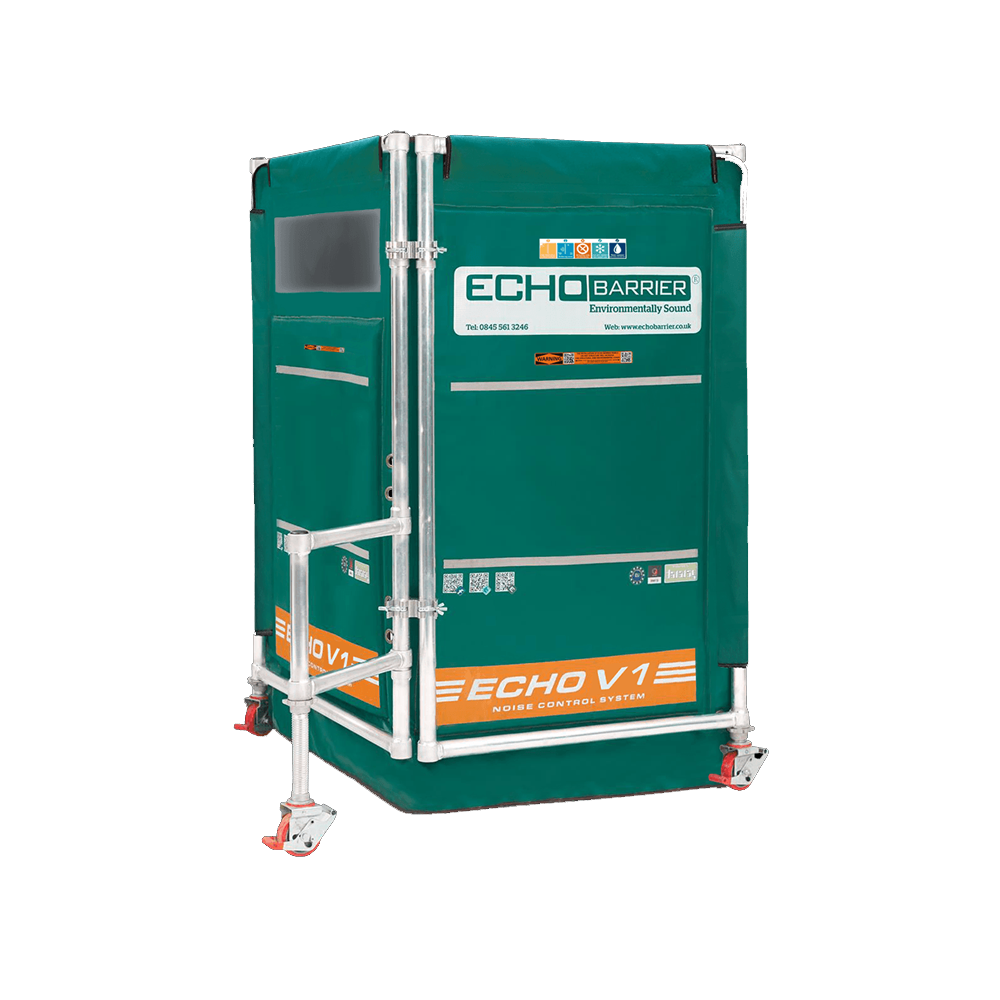

Echo Barrier Acoustic Screen

Name: Echo Barrier Acoustic Screen
SKU: AB113010
Price: 1766.4 GBP

Skip to the end of the images gallery

This image is for illustration purposes only

Skip to the beginning of the images gallery

Product Highlights

High noise absorption - Reduces sound levels by up to 38.5dB and absorbs up to 97% of airborne noise.
Foldable and mobile - Lightweight, wheeled frame folds flat for easy transport and fast site setup.
Weather and fire resistant - Tested for dust, UV, water, cold and fire resistance for year-round performance.

SKU AB113010

A folding acoustic fencing solution designed for industrial-grade noise control. This durable and portable barrier reduces noise by up to 38.5dB and absorbs 97% of sound. Its foldable frame with wheels ensures optimal manoeuvrability across construction sites. Built to endure harsh conditions, it remains effective between -40°F and 158°F. Ideal for managing sound in demolition and utilities work, this screen balances practicality, mobility and high acoustic performance on busy sites.

£1,472.00 £1,766.40

Quickest Available Delivery: Up To 3 Day Delivery Final shipping costs and times are calculated at checkout. Shipping address may affect available delivery methods & times.

Details

Designed to meet the demanding noise-reduction needs of construction, demolition, and utilities projects, this acoustic fencing panel offers high performance without compromising portability. Unlike static fencing, the foldable design maximises coverage and flexibility on-site.

The Echo Barrier Acoustic Screen reduces sound by up to 38.5dB and absorbs up to 97% of noise through a 3-layer build. The outer PVC shell delivers mass and durability, while the inner composite absorbs airborne noise. A breathable waterproof membrane keeps elements out while letting sound through for effective dissipation.

Its wheeled frame allows rapid positioning, making this a go-to acoustic barrier for dynamic worksites. Compact storage dimensions and a simple folding mechanism allow for efficient deployment and transport.

Durable acoustic panel - Built to reduce noise up to 38.5dB, with strong sound absorption.
Foldable wheeled frame - Enables efficient transport, storage and easy on-site repositioning.
All-weather resistance - Functions in conditions from -40°F to 158°F with full water, dust and UV resistance.
Three-layer construction - Outer PVC, middle composite and inner waterproof membrane optimise sound control.
Safe and portable - Fire-rated, compact and lightweight for quick installation across any site.

This acoustic fencing product provides significant value for projects requiring mobile sound protection. B2B clients in construction, utilities, and demolition benefit from its fast deployment and space-saving design. On-site teams can quickly wheel and unfold the barrier into place, tailoring the layout to noise-sensitive areas.

Where acoustic barriers like traditional panels are too rigid, this acoustic fence panel offers adaptability. Users gain practical control of noisy environments without sacrificing ease of use or compliance with site safety norms.

The system's structural performance underlines its resilience: tested to BSEN 60529:1992 and BS 7837-1996 standards for ingress, fire and environmental resistance. Suitable for both indoor and outdoor use, even in low-temperature or high-exposure zones.

Its integration into temporary works, refurbishments or high-impact demolitions means minimal noise disruption to surrounding areas. The sound-absorbent core operates efficiently even near machinery, compressors or power tools, mitigating acoustic pollution on site.

HERMEQ stock a wide-range of Crowd Control Barriers, Traffic Barriers, Rope Barriers & Expandable Barriers conforming to all required safety specifications and regulations. Lightweight, easy to use & made with premium quality materials in the UK!

Need any help? Contact HERMEQ Today.

Contact our team via phone 0800 043 2520, email sales@hermeq.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.

Additional Details

Echo Barrier Acoustic Screens are engineered for high-demand acoustic environments where flexibility and mobility are essential. Used widely across construction, utilities and infrastructure projects, they allow for flexible deployment and targeted sound suppression in active zones. The acoustic screen’s unique foldable frame expands coverage without the complexity of fixed installations.

Whether mitigating demolition noise near residential areas or shielding roadwork near public walkways, this portable acoustic barrier improves on-site working conditions and protects neighbouring zones from excessive noise. Its composite sound-absorbent core is encased in a tough, weather-resistant PVC outer layer, ensuring resilience against weather and mechanical damage.

The black mesh face must be oriented toward the sound source for optimal acoustic performance. Its simple wheel-and-foot assembly system makes it fast to set up and reposition, even by a single worker. With compact folded dimensions of 1840 x 1240 x 150mm, transport and storage are effortless.

Common use cases include shielding generators, compressors, power tools, and demolition equipment. The system also excels in temporary works and infrastructure upgrades where short-term, high-intensity noise suppression is required. Its compliance with BS 7837:1996 and BSEN 60529:1992 underscores its readiness for regulated environments.

Used as a standalone acoustic noise barrier or combined with other HERMEQ noise control systems, this panel enhances site safety and community satisfaction.

Specifications

Height	Width	Thickness	Weight
Barrier: 1940mm Frame w/ wheels: 2100mm Frame without wheels: 1930mm	2560mm	60mm	Barrier: 10KG Frame: 17KG Wheels: 2KG \| Feet: 1KG

Folded Dimensions	1840 x 1240 x 150mm (L x W x D)
Max Noise Reduction (Lab tested)	38.5dB
Max Noise Absorption (Lab tested)	97%
Water Resistant Test Standard	BSEN 60529:1992 IPX6 / IPX9
Fire Resistant Test Standard	BS 7837-1996
Dust Resistant Test Standard	BSEN 60529:1992
Cold Resistant Test Standard	BSEN 60068/2/1:2007 (-40 degrees)
UV Resistant Test Standard	5 Years

FAQs

What is the main benefit of using acoustic fencing?
Acoustic fencing helps reduce sound transmission on construction sites, improving compliance and creating a safer, quieter work environment.

How much noise can this acoustic barrier reduce?
It reduces noise by up to 38.5dB and absorbs 97% of sound, ideal for demolition or utility environments.

Is the acoustic fence panel waterproof?
Yes, it meets BSEN 60529:1992 IPX6/IPX9 standards and includes a waterproof membrane to protect internal components.

Can the fencing be moved easily?
Yes, it features a foldable frame with wheels, making it portable and simple to deploy or reposition.
