HERMEQ NorwayTrench Sheet - FLP 600/3.5
Product Highlights
- 3.5mm thickness - Lightweight and ideal for shallow trench sheeting projects.
- 600mm width - Provides optimal coverage and reduces trench wall exposure.
- S275JR steel grade - Delivers strength, reliability, and corrosion resistance.
Alternative Products
SKU TR1761

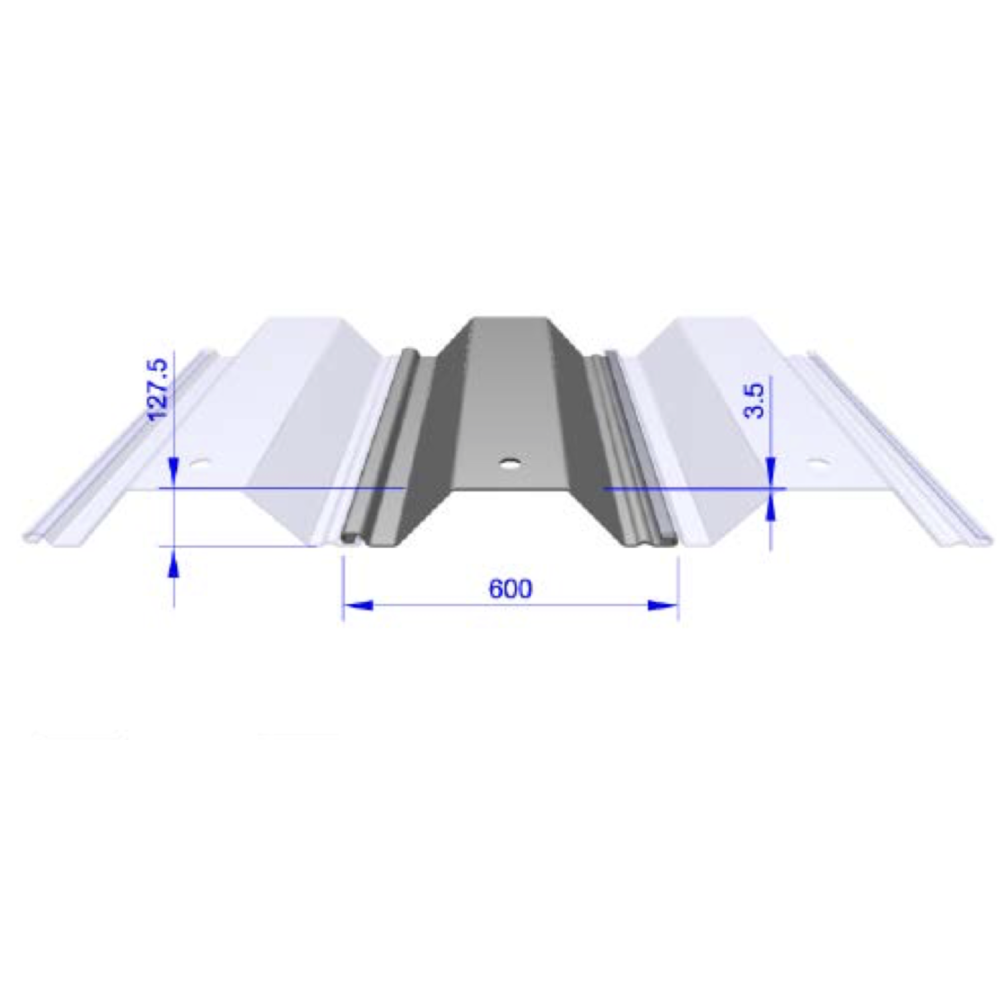

The FLP 600/3.5 trench sheet is a lightweight steel sheet pile ideal for shallow trench sheeting applications. Made from S275JR steel and equipped with interlocking features, it’s perfect for trench sheets and sheet piles where rapid setup and reliable structural support are needed across construction and civil engineering sectors.
Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery
The FLP 600/3.5 trench sheet is a versatile solution designed for effective trench sheeting in lighter-duty groundworks. Its interlocking profile ensures secure alignment, and at just 3.5mm thick, it allows for easier handling while maintaining structural integrity. Supplied as standard with two handling holes, it's tailored for practical use and efficient on-site operations.
Constructed from durable S275JR steel and measuring 600mm in width, this sheet pile provides ideal coverage for shallow trench applications. Its lighter gauge offers reduced weight without compromising performance, making it a reliable choice across multiple sectors including utilities, drainage, and site access preparation.
- 600mm wide, 3.5mm thick - Lightweight yet structurally sound for moderate excavation depths.
- Dual handling holes - Improves on-site safety and handling efficiency; extra holes available on request.
- Interlocking profile - Ensures alignment and trench wall stability under pressure.
- Timber-stacking recommended - For improved handling and reduced risk of injury on site.
- Steel S275JR grade - Provides consistent strength across diverse ground conditions.
With its shallower depth profile and interlockable design, the FLP 600/3.5 trench sheet is ideal for use in temporary excavation support systems. Whether used as part of a pipe-laying project or to reinforce open-cut trenches, this trench sheet performs efficiently where deeper piles are not required. Common applications include footway crossings, cable ducts, and shallow utilities work.
It is compatible with HERMEQ’s full range of guide walings and piling frames for smoother installation. Site personnel should always follow best-practice trench safety and use the appropriate driving caps and extraction tools to extend sheet life and ensure compliance with UK standards.
HERMEQ stock a wide-range of Trench Sheets, Groundworks, Trench Covers & Road Plates conforming to all required safety specifications and regulations.
Need any help? Contact HERMEQ Today.
Contact our team via phone 0800 043 2520, email sales@hermeq.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
- Only trained personnel should handle, install, or remove trench sheets.

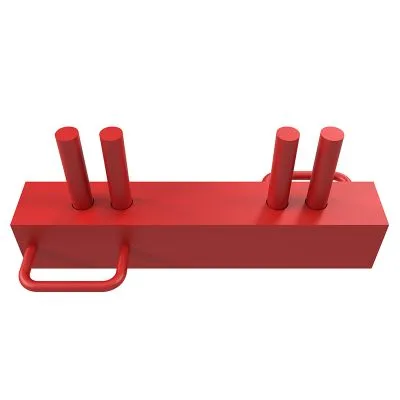

- Use a driving cap to avoid top-edge damage during installation.
- Stack no more than 6 sheets at a time with timber spacers to aid safe handling.
- Quick release shackles must not be used for extraction; always use correct extractor tools.
- Positioning and pitching in windy conditions should involve at least two operatives.
- Do not lift sheets over people and always monitor trailing rope paths to prevent snagging.
- HERMEQ offers guide walings and piling frames to support correct installation techniques.
- Provides limited groundwater resistance — avoid use in high flow areas without reinforcement.
| Effective Width | 600mm |
| Depth | 127, 75.5mm |
| Thickness | 3.5mm |
| Steel grade | S275JR |
When should I use a 3.5mm trench sheet?
It’s ideal for shallow excavations or where lower sheet pile strength is sufficient for support.
Is this trench sheet compatible with other systems?
Yes, it works with HERMEQ’s walings and piling frames for seamless trench sheeting alignment.
Can extra handling holes be added?
Yes. Additional holes can be supplied on request to improve installation safety and flexibility.
Is the FLP 600/3.5 trench sheet reusable?
Yes, provided correct handling and extraction methods are used to preserve sheet integrity.
